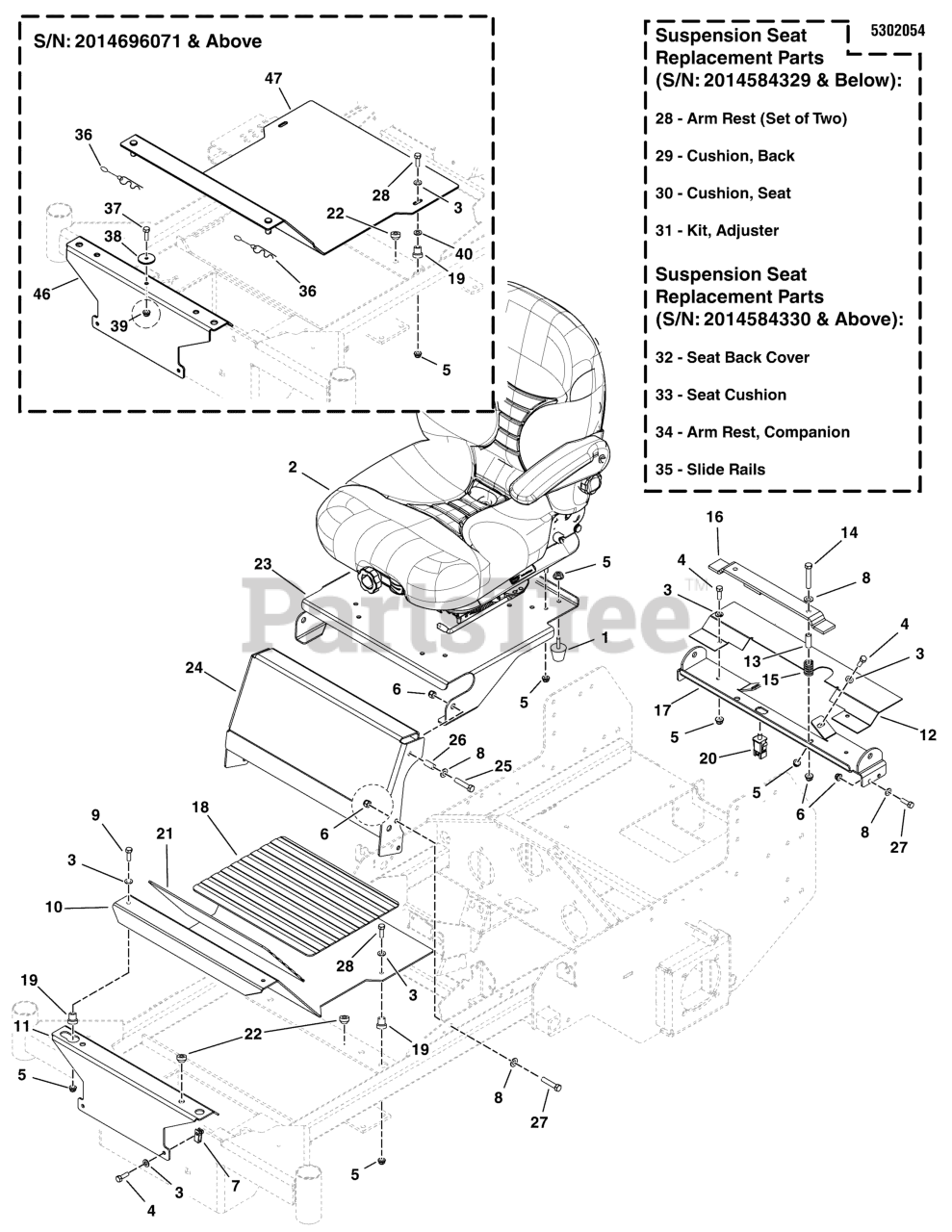

S 175X (5900921) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Seat & Kick Plate Group Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

Seat & Kick Plate Group Parts Diagram

  • Title

1

Snapper Pro 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

2a

Snapper Pro 5103004

SEAT, LOW COMPANION

Note: (S/N: 2014584330 & ABOVE)

$

$

Currently unavailable

2b

Snapper Pro 5101214

SEAT, SUSP.TYPE, MICHIGAN
(Superseded to 5101214FS)

Note: (S/N: 2014584329 & BELOW)

$1192.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

10

Snapper Pro 5406867D

PLATE, FLOOR - RED

Note: (S/N: 2014696070 & BELOW)

$

$

Currently unavailable

11

Snapper Pro 5406367D

WELD, FRONT FLOOR - RED

Note: (S/N: 2014696070 & BELOW)

$

$

Currently unavailable

12

Snapper Pro 5404943D

GUARD, HYDRO BELT - RED

$

$

Currently unavailable

13

Snapper Pro 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

15

Snapper Pro 5101079

SPRING-COMP, .625 ID X 1.31 LG X .105 WR
(Superseded to 5101079FS)

$5.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5404894D

WELD, SEAT SWITCH -RED

$

$

Currently unavailable

17

Snapper Pro 5405031D

WELD, SEAT SUPPORT - RED

$86.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5101013

SAFETY WALK, 11.50 X 15.00
(Superseded to 5101013SM)

$30.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5023257

BUSHING, .38 X .88 X .73
(Superseded to 5023257YP)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5022198

SWITCH, PLUNGER, NO/NO SNAP-IN
(Superseded to 5022198SM)

$15.99

$

In Stock, Qty 7

0

21

Snapper Pro 5101011

SAFETY WALK, FLOOR REST, 8.00 X 15.00
(Superseded to 5101011SM)

$19.99

$

In Stock, only 1 left!

0

22

Snapper Pro 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

23a

Snapper Pro 5407295D

PLATE, SEAT SUPPORT IS2500Z - RED

Note: (S/N: 2014645943 & ABOVE)

$

$

Currently unavailable

23b

Snapper Pro 5405750D

PLATE, SEAT SUPPORT - RED

Note: (S/N: 2014645942 & BELOW)

$

$

Currently unavailable

24a

Snapper Pro 5407296D

SEAT SUPPORT - RED

Note: (S/N: 2014645943 & ABOVE)

$

$

Currently unavailable

24b

Snapper Pro 5407051D

SEAT SUPPORT - RED

Note: (S/N: 2014645942 & BELOW)

$

$

Currently unavailable

25

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

26

Snapper Pro 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

28

Snapper Pro 5101214X1

KIT, ARM REST (SV)

Note: (S/N: 2014584329 & BELOW)

$269.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5101214X2

CUSHION, BACK (SV)

Note: (S/N: 2014584329 & BELOW)

$373.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5101214X3

CUSHION, SEAT (SV)

Note: (S/N: 2014584329 & BELOW)

$397.99

$

In Stock, only 1 left!

0

31

Snapper Pro 5101214X4

KIT, ADJUSTER (SV)

Note: (S/N: 2014584329 & BELOW)

$174.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5102760X1

SEAT BACK COVER
(Superseded to 5102760X1YP)

Note: (S/N: 2014584330 & ABOVE)

$145.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5102760X2

SEAT CUSHION
(Superseded to 5102760X2YP)

Note: (S/N: 2014584330 & ABOVE)

$281.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5102760X3

ARM REST, COMPANION
(Superseded to 5102760X3YP)

Note: (S/N: 2014584330 & ABOVE)

$257.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5102760X4

SLIDE RAILS
(Superseded to 5102760X4YP)

Note: (S/N: 2014584330 & ABOVE)

$183.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5103107

HAIRPIN COTTER LANYARD ASM, 8"

Note: (S/N: 2014696071 & ABOVE)

$

$

Currently unavailable

37

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

Note: (S/N: 2014696071 & ABOVE)

$3.99

$

In Stock, Qty 20+

0

38

Snapper Pro 5044577

WASHER, .265 X 1.50 X .109, YZ
(Superseded to 5044577SM)

Note: (S/N: 2014696071 & ABOVE)

$3.99

$

In Stock, only 1 left!

0

39

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (S/N: 2014696071 & ABOVE)

$3.99

$

In Stock, Qty 20+

0

40

Snapper Pro 5025483

WASHER, .350 ID X .65 OD X .160 THK. YZ

Note: (S/N: 2014696071 & ABOVE)

$

$

Currently unavailable

41

Snapper Pro 5025572

DZUS, 1/4 TURN FASTENER, D8X29MM

Note: (EXPORT MODELS - NOT SHOWN)

$8.49

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025573

DZUS, EJECTOR SPRING
(Superseded to 5025573FS)

Note: (EXPORT MODELS - NOT SHOWN)

$2.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5025574

DZUS, CUPPED WASHER
(Superseded to 5025574FS)

Note: (EXPORT MODELS - NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5025576

DZUS, RECEPTACLE, CLIP-ON, D8
(Superseded to 5025576FS)

Note: (EXPORT MODELS - NOT SHOWN)

$6.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025577

DZUS, RETAINER, PUSH-ON, SS
(Superseded to 5025577FS)

Note: (EXPORT MODELS - NOT SHOWN)

$2.99

$

Usually ships in 2-12 days

0

46a

Snapper Pro 5408323D

PLATE, FRONT FLOOR

Note: (DOMESTIC - S/N: 2014696071 & ABOVE)

$

$

Currently unavailable

46b

Snapper Pro 5408356D

PLATE, FRONT FLOOR

Note: (EXPORT MODELS)

$

$

Currently unavailable

47a

Snapper Pro 5408331D

WELD, FLOOR PLATE

Note: (DOMESTIC - S/N: 2014696071 & ABOVE)

$

$

Currently unavailable

47b

Snapper Pro 5408358D

WELD, FLOOR PLATE

Note: (EXPORT MODELS)

$

$

Currently unavailable
