S 175X (5900921) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Main Frame Group Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

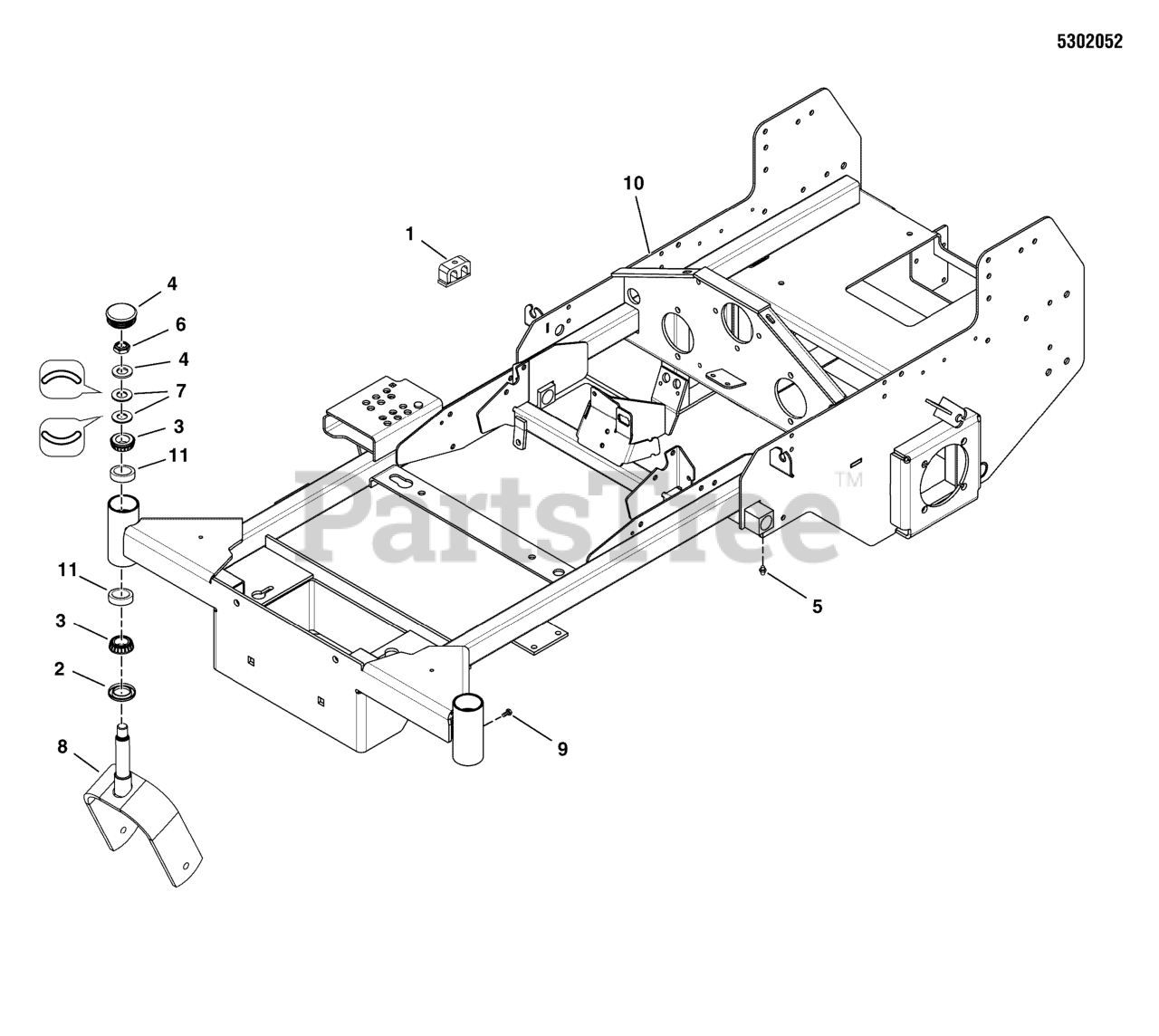

Main Frame Group Parts Diagram

  • Title

1

Snapper Pro 5025430

CLAMP, 5/16, DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

3

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5402208D

WELD, CASTER YOKE - RED
(Superseded to 5402208DYP)

$189.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

10a

Snapper Pro 5407781D

WELD, MAIN FRAME

Note: (52" MODELS S/N: 2014881977 & ABOVE)

$

$

Currently unavailable

10b

Snapper Pro 5406267D

WELD, MAIN FRAME

Note: (52" CE MODELS)

$

$

Currently unavailable

10c

Snapper Pro 5406779D

WELD, MAIN FRAME

Note: (61" MODELS)

$

$

Currently unavailable

11

Snapper Pro 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0
