S 175X (5900921) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Hydraulic Group Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

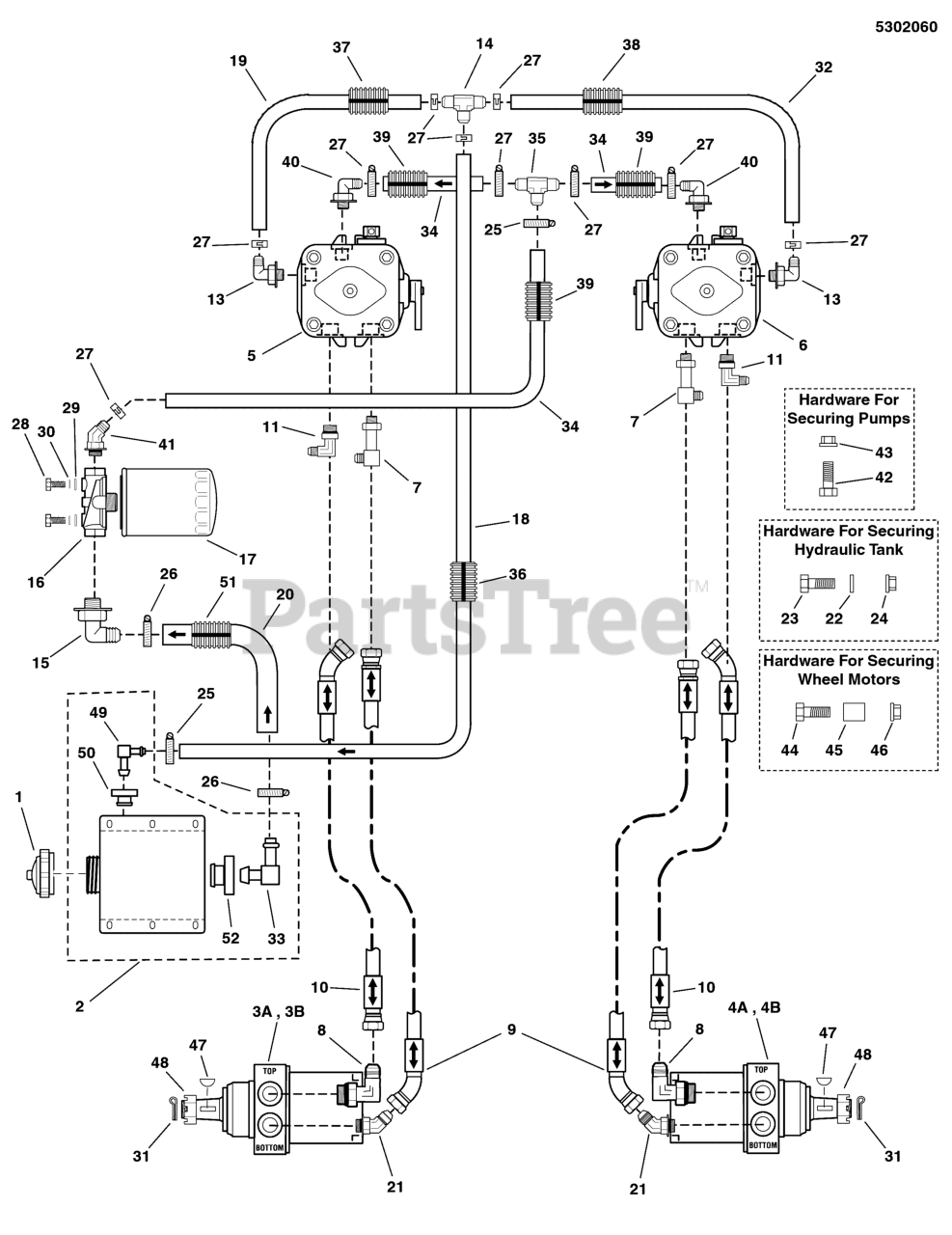

Hydraulic Group Parts Diagram

  • Title

1

Snapper Pro 5100017

CAP, HYDRAULIC, SHIELDED VENT
(Superseded to 5100017SM)

$23.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5061712

TANK, HYDRAULIC, ASSEMBLY
(Superseded to 5061712SM)

$154.99

$

In Stock, Qty 6

0

3a

Snapper Pro 5102682

WHEEL MOTOR, LH, 14.5 CI-TF0240LS080AAKZ
(Superseded to 5102682YP)

Note: (3TNM72-AFS Series S/N: 2014400528 & Above)

$984.99

$

Usually ships in 2-12 days

0

3b

Snapper Pro 5022975L

MOTOR,WHEEL, LH

Note: (All 3TNM68-AFS Series & 3TNM72-AFS Series S/N: 2014400527 & Below)

$

$

Currently unavailable

4a

Snapper Pro 5102681

WHEEL MOTOR, RH, 14.5 CI-TF0240LS081AAKZ
(Superseded to 5102681YP)

Note: (3TNM72-AFS Series S/N: 2014400528 & Above)

$948.99

$

Usually ships in 2-12 days

0

4b

Snapper Pro 5022975R

MOTOR,WHEEL, RH

Note: (All 3TNM68-AFS Series & 3TNM72-AFS Series S/N: 2014400527 & Below)

$

$

Currently unavailable

5

Snapper Pro 5102174

PUMP, HYD, 12CC - LH, PK-3HBQ-FV1F-XXXX
(Superseded to 5102174YP)

$1590.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5102175

PUMP, HYD, 12CC - RH, PK-3KBQ-FV1F-XXXX
(Superseded to 5102175YP)

$1515.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5101823

FITTING, #8JIC TO #8 O-RING, 90 ELBOW
(Superseded to 5101823FS)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5023276

FITTING, #10 ORING-#8 JIC, 90D
(Superseded to 5023276SM)

$53.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5102110

HOSE ASSEMBLY, (29)
(Superseded to 5102110YP)

$142.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5022710

HOSE ASSEMBLY, (25.5)

$136.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5022599

FITTING, #8 JIC - #8 O-RING, 90 DEG.
(Superseded to 5022599SM)

$32.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5100162

FAN SHROUD
(Superseded to 5100162SM)

$22.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5023267

ADAPTER, 90 DEG, 9/16-3/8 BARB
(Superseded to 5023267SM)

$30.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5022920

FITTING, TEE, 1/2 HOSE
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5023346

ADAPTER, 90 DEG, 9/16-5/8 BARB
(Superseded to 5023346SM)

$42.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5023096

FILTER HEAD, HYDRAULIC
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0

18

Snapper Pro 5050860X16

HOSE, 3/8" PUSH-LOCK, 16.00"
(Superseded to 5050860X16SM)

$15.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5050860X10

HOSE, 3/8" PUSH-LOCK, 10.00"
(Superseded to 5050860X10FS)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5050933X20

HOSE, 5/8 PUSH-LOCK, 20.00
(Superseded to 5050933X20FS)

$34.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5022709

FITTING, #8 JIC - #10 O-RING, 45 DEG.
(Superseded to 5022709SM)

$46.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

24

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5022922

CLAMP, #4 HOSE, STAINLESS
(Superseded to 5022922SM)

$3.49

$

In Stock, only 1 left!

0

26

Snapper Pro 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

29

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5025203X16

PIN, COTTER, 1/8 X 2
(Superseded to 5025203X16SM)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5050860X26

HOSE, 3/8 PUSH-LOCK, 26.00
(Superseded to 5050860X26FS)

$22.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5023119

FITTING, 90 DEG, 5/8

$

$

Currently unavailable

34

Snapper Pro 5050857X14

HOSE, 1/2" PUSH-ON, 14.00"
(Superseded to 5050857X14YP)

$9.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5101693

FITTING, BEADED TEE, 1/2 X 1/2 X 1/2, YZ
(Superseded to 5101693YP)

$21.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5050861X14

WIRE LOOM, 5/8" ID, 14" LONG

$

$

Currently unavailable

37

Snapper Pro 5050861X8

WIRE LOOM, 5/8" ID, 8" LONG
(Superseded to 5050861X8FS)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5050861X24P0

WIRE LOOM, 5/8" ID, 24" LONG
(Superseded to 5050861X24P0FS)

$5.49

$

Usually ships in 2-12 days

0

39

Snapper Pro 5050862X12

WIRE LOOM, 3/4" ID, 12" LONG
(Superseded to 5050862X12SM)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 5100370

FITTING, 9/16 O-RING-1/2" HOSE, 90 DEG
(Superseded to 5100370YP)

$18.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5102054

FITTING, 1/2 HOSE - 9/16 O-RING, 45 ELB
(Superseded to 5102054FS)

$31.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025016X10

BOLT, 7/16-20 X 1-1/4 GD5

$

$

Currently unavailable

43

Snapper Pro 5025129

NUT, 7/16-14 HEX SERRATED FLANGE (SMALL)

$

$

Currently unavailable

44

Snapper Pro 5025475

BOLT, 1/2-13 X 2-1/2, NYLON PATCH
(Superseded to 5025475YP)

$6.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5061670

SPACER, .53 X 1.00 X 1.00

Note: (All 3TNM68-AFS Series & 3TNM72-AFS Series S/N: 2014400527 & Below)

$

$

Currently unavailable

46

Snapper Pro 5025330

NUT, 1/2-13 SQUARE
(Superseded to 5025330SM)

$3.49

$

Usually ships in 2-12 days

0

47

Snapper Pro 5022042X2

KEY, WOODRUFF, #1008, 5/16 X 1
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

48

Snapper Pro 5022042X3

NUT, CASTLE 1-20
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

49

Snapper Pro 5023118

FITTING-90 DEG, 3/8
(Superseded to 5023118SM)

$7.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 2 left!

0

51

Snapper Pro 5100384X18

LOOM, CONVOLUTED SPLIT, 1 ID - 18 LONG

$

$

Currently unavailable

52

Snapper Pro 5023121

GROMMET
(Superseded to 5023121SM)

$15.99

$

Usually ships in 2-12 days

0
