S 175X (5900920) - Snapper Pro S175X Series 52" Walk-Behind Mower, 20hp Yanmar, Rear-Discharge 52" Mower Deck - Housing, Covers, Spindles & Blades Rear Discharge Parts Diagram

S175X Series 52" Walk-Behind Mower, 20hp Yanmar, Rear-Discharge

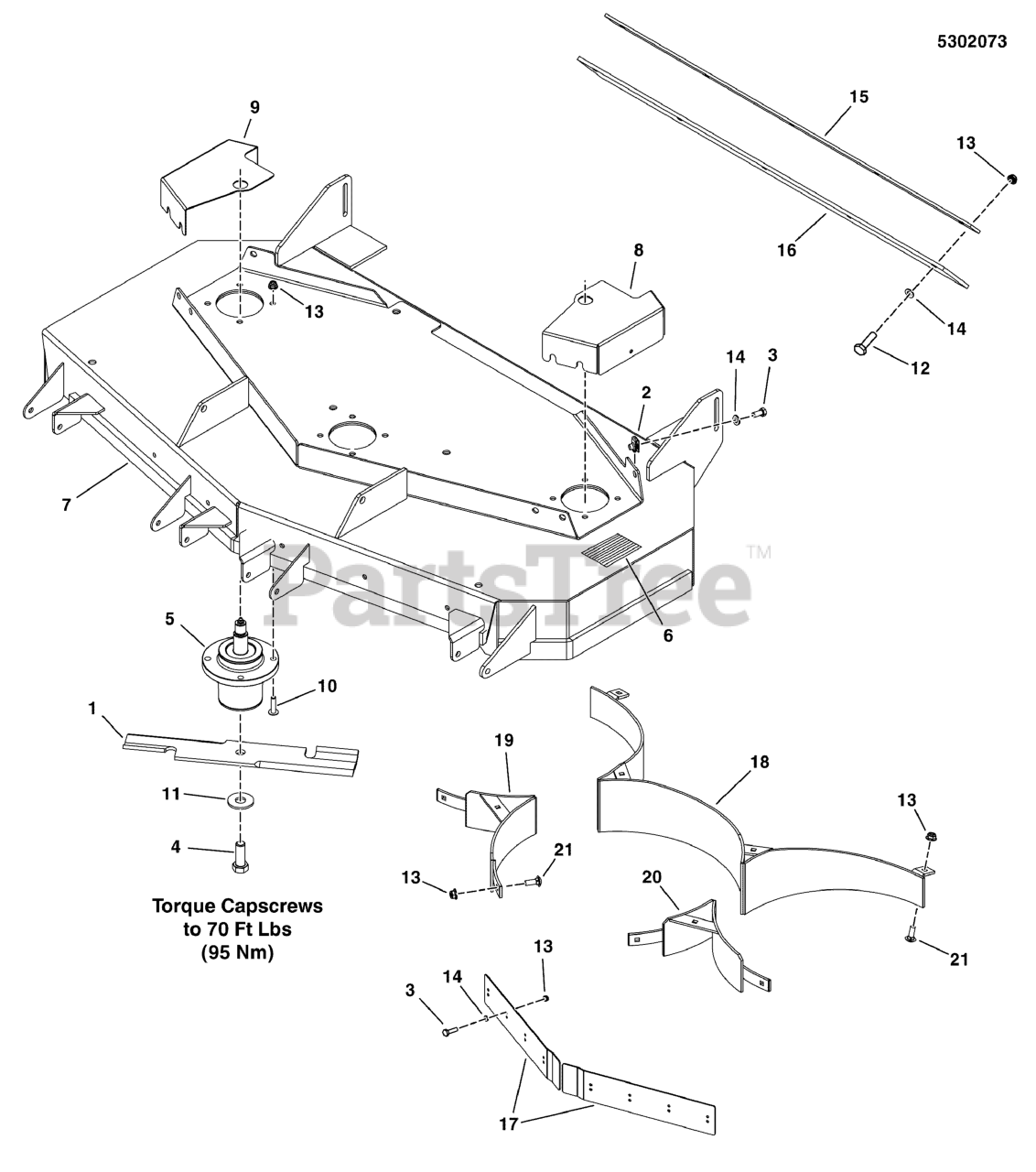

52" Mower Deck - Housing, Covers, Spindles & Blades Rear Discharge Parts Diagram

  • Title

1

Snapper Pro 5021227S

BLADE, 18, SET OF THREE

$80.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

4

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer sold seperately)

$231.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

7

Snapper Pro 5600394

DECK SHELL W/ DECALS, 52RD, S175X

$

$

Currently unavailable

8

Snapper Pro 5401605D

GUARD, 52" DECK, IS2000 - LH - RED

$

$

Currently unavailable

9

Snapper Pro 5401606D

GUARD, 52" DECK, IS2000 - RH - RED

$

$

Currently unavailable

10

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

12

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Snapper Pro 5402475A

PLATE, FLAP RETAINER, 2000 RD - BLK

$25.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5402474

FLAP, 2000 REAR DISCHARGE
(Superseded to 5402474FS)

$85.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5402476A

BAFFLES. FRONT DISCHARGE, 52 YAN - BLK

$37.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5404729A

WELD, REAR BAFFLE, 52 RD - BLK

$228.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5404731A

WELD, FRT-RGHT BAFFLE, 52 RD - BLK

$91.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5404730A

WELD, FRT-LFT BAFFLE, 52 RD - BLK

$90.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0
