S 175X (5900919) - Snapper Pro S175X Series 52" Zero-Turn Mower, 20hp Yanmar Wheel & Tire Group Parts Diagram

S175X Series 52" Zero-Turn Mower, 20hp Yanmar

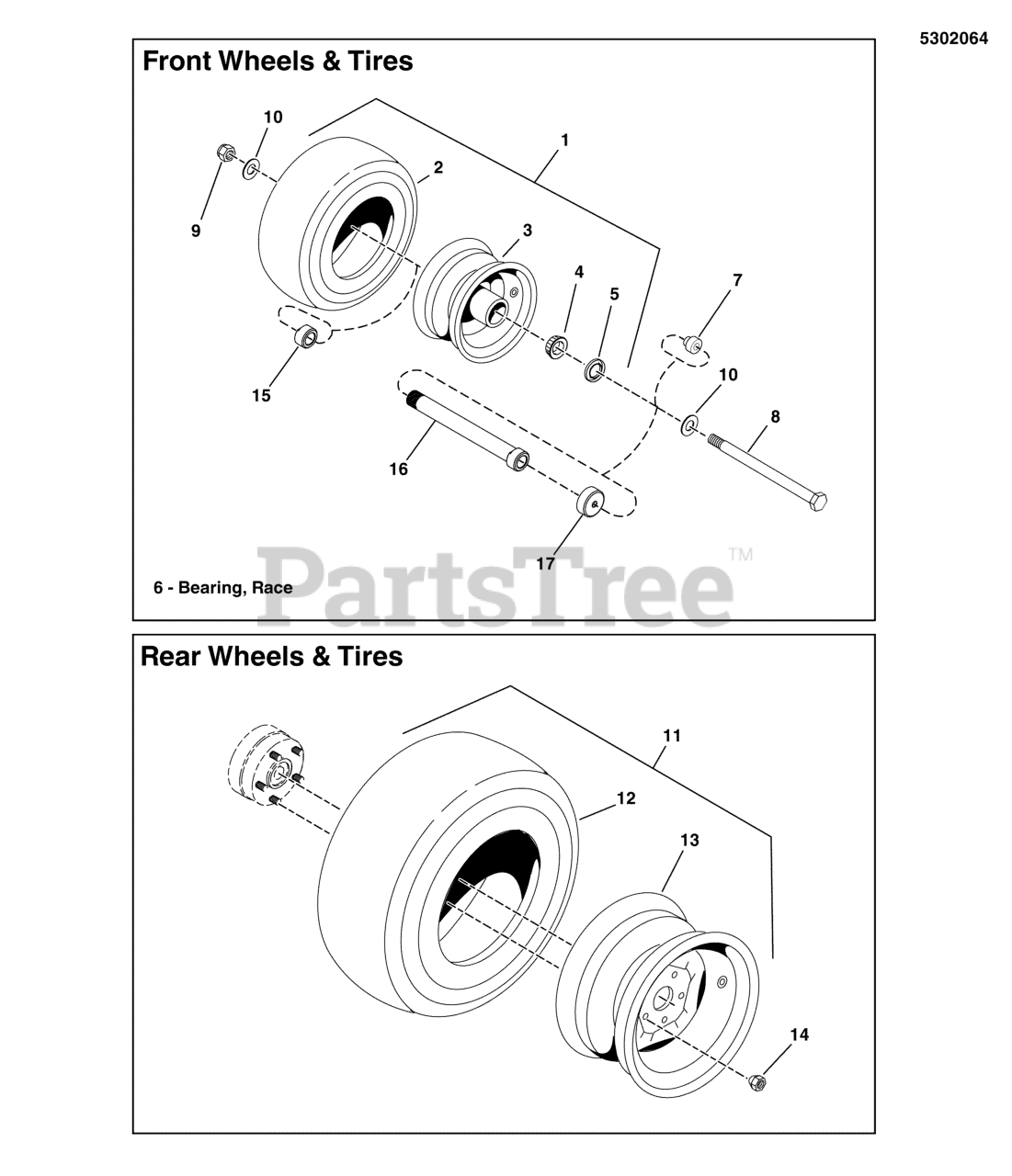

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper Pro 5022631S

TIRE, CASTER, 13 X 5.00-6
(Superseded to 5022631SSM)

$168.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5022029X1

TIRE ONLY

$112.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022631SX1

WHEEL ASSY, 13 X 5 X 6, SILVER
(Superseded to 5022631SX1SM)

$102.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

$12.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

$9.99

$

In Stock, Qty 20+

0

6

Snapper Pro 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

$10.99

$

In Stock, Qty 20+

0

7

Snapper Pro 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (S/N: 2016230844 & Below)(2 per tire)

$10.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5025017X64

BOLT, 1/2-13 X 8 GD5 YZ
(Superseded to 5025017X64SM)

$10.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

11

Snapper Pro 5023369

TIRE ASSM, 22 X 11.00-10
(Superseded to 5023369SM)

Note: (61" MODELS ONLY)

$426.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5100006

TIRE ASSM, 22 X 10.00-10

Note: (52" MODELS ONLY)

$337.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5023369X2

TIRE, 22 X 11.00-10, 4 PLY

Note: (61" MODELS ONLY)

$

$

Currently unavailable

12

Snapper Pro 5100006X1

TIRE, 22 X 10 X 10
(Superseded to 5100006X1FS)

Note: (52" MODELS ONLY)

$192.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5023369X1

RIM-10X7-5-4.5 SOLID
(Superseded to 5023369X1SM)

$192.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

Note: (S/N: 2016230845 & Above)(1 per tire)

$16.99

$

In Stock, Qty 14

0

16

Snapper Pro 5103648

BEARING ADJUSTER, SPACER, 6.062 LG
(Superseded to 5103648FS)

Note: (S/N: 2016230845 & Above)(1 per tire)

$21.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5103594

DEBRIS COVER, CASTER WHEELS
(Superseded to 5103594YP)

Note: (S/N: 2016230845 & Above)(2 per tire)

$4.49

$

In Stock, Qty 15

0
