S 175X (5900919) - Snapper Pro S175X Series 52" Zero-Turn Mower, 20hp Yanmar Deck Lift Group Parts Diagram

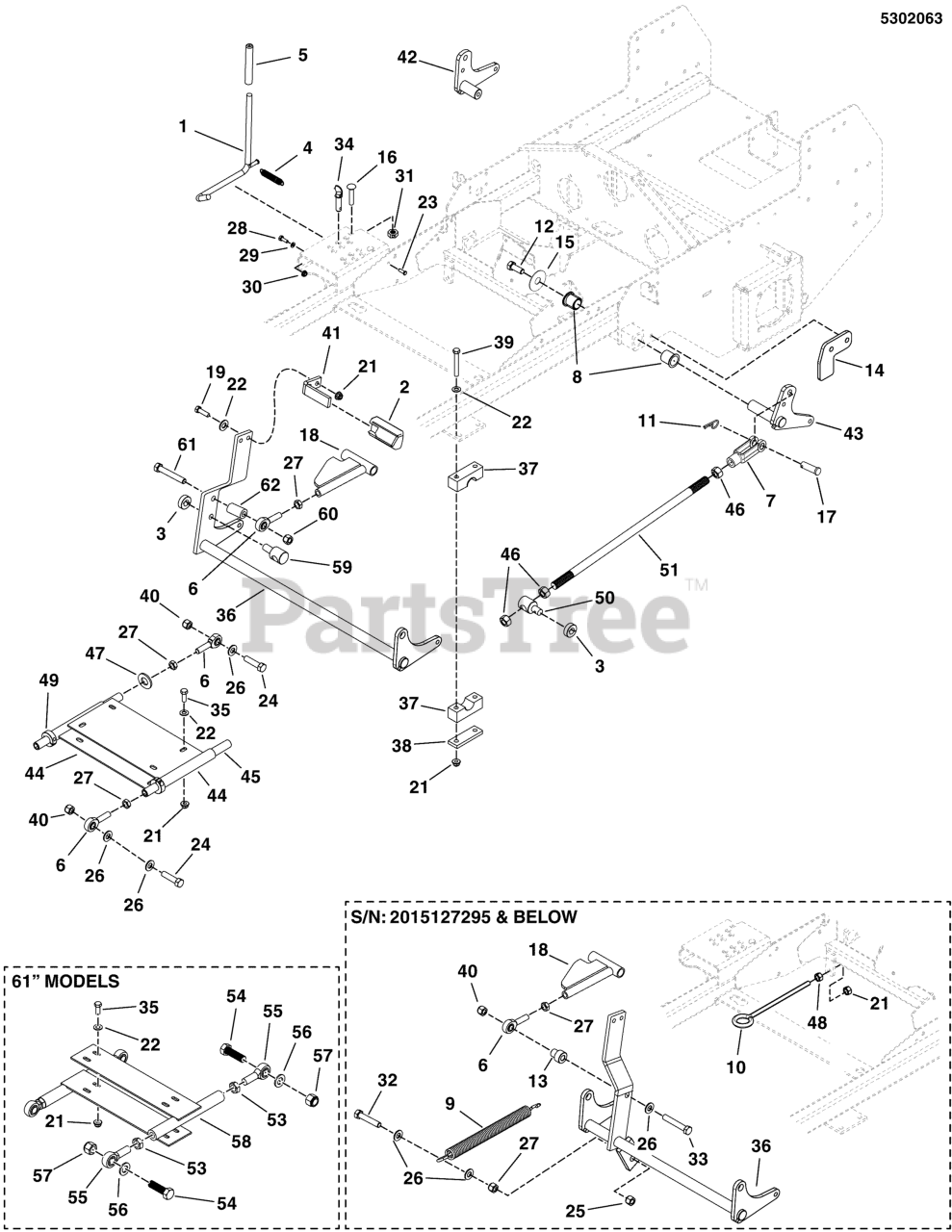

S175X Series 52" Zero-Turn Mower, 20hp Yanmar

Deck Lift Group Parts Diagram

  • Title

1

Snapper Pro 5400719A

WELD, ROD DECK LIFT - BLK

$

$

Currently unavailable

2

Snapper Pro 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5020441

COLLAR, 5/8 SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5021811

EYE BOLT, 3/8-16 X 8, 1 EYE
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

11

Snapper Pro 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5061670

SPACER, .53 X 1.00 X 1.00

$

$

Currently unavailable

14

Snapper Pro 5406883D

PLATE, DECK STOP - RED

$

$

Currently unavailable

15

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025146X16

BOLT, 3/8-16 X 2, CARRIAGE
(Superseded to 5025146X16SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper Pro 5025328X12

PIN, CLEVIS, 1/2 X 1 1/2, YZP
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 4 left!

0

18

Snapper Pro 5400769D

WELD, DECK ADJUST LINK - RED

$

$

Currently unavailable

19

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

20

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

21

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

22

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

25

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

26

Snapper Pro 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

27

Snapper Pro 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 20+

0

28

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

29

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

32

Snapper Pro 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

34

Snapper Pro 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

35

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

36a

Snapper Pro 5406933D

WELD, DECK LIFT SHAFT - RED

Note: (S/N: 2015127296 & Above)

$

$

Currently unavailable

36b

Snapper Pro 5404303D

WELD, DECK LIFT SHAFT - RED

Note: (S/N: 2015127295 & Below)

$

$

Currently unavailable

37

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

40

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

41

Snapper Pro 5406016A

PEDAL, DECK LIFT, IS2500Z - BLK

$

$

Currently unavailable

42

Snapper Pro 5402766D

WELD, PIVOT, DECK LIFT, RH - RED

$68.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5402767D

WELD, PIVOT, DECK LIFT, LH - RED

$74.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5400647A

WELD, DECK STABILIZER - BLK

$

$

Currently unavailable

45a

Snapper Pro 5100889

SHAFT, DECK STABILIZER
(Superseded to 5100889FS)

Note: (DOMESTIC MODELS)

$33.99

$

Usually ships in 2-12 days

0

45b

Snapper Pro 5100155

SHAFT, DECK STABILIZER
(Superseded to 5100155SM)

Note: (EXPORT MODELS ONLY)

$40.99

$

Usually ships in 2-12 days

0

46

Snapper Pro 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

47

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

48

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

49

Snapper Pro 5010114

COLLAR, 3/4 SPLIT
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

51a

Snapper Pro 5102418

ROD, DECK LIFT ADJUSTMENT

Note: (S/N: 2014326116 & ABOVE)

$

$

Currently unavailable

51b

Snapper Pro 5049971

ROD, DECK LIFT ADJUSTMENT

Note: (S/N: 2014326115 & BELOW)

$

$

Currently unavailable

52

Snapper Pro 5045176

SPACER, .52 X 1.00 X 1.75

Note: (61" MODELS)

$

$

Currently unavailable

53

Snapper Pro 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

Note: (61" MODELS)

$4.49

$

In Stock, only 1 left!

0

54

Snapper Pro 5025265X20

BOLT, 3/4-16 X 2-1/2 YZ GD5
(Superseded to 5025265X20YP)

Note: (61" MODELS)

$10.99

$

Usually ships in 2-12 days

0

55

Snapper Pro 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

Note: (61" MODELS)

$37.99

$

In Stock, Qty 13

0

56

Snapper Pro 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

Note: (61" MODELS)

$3.99

$

In Stock, only 1 left!

0

57

Snapper Pro 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

Note: (61" MODELS)

$3.49

$

In Stock, only 1 left!

0

58a

Snapper Pro 5406832A

WELD, DECK STABILIZER - BLK
(Superseded to 5406832AA)

Note: (61" SD MODELS ONLY)

$160.99

$

In Stock, only 1 left!

0

58b

Snapper Pro 5406885D

WELD, DECK STABILIZER

Note: (61" RD MODELS ONLY)

$

$

Currently unavailable

59

Snapper Pro 5047446

PIVOT, SPRING ROD

$

$

Currently unavailable

60

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

Note: (61" MODELS)

$3.49

$

In Stock, Qty 12

0

61

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

Note: (61" MODELS)

$6.49

$

In Stock, only 2 left!

0

62

Snapper Pro 5043366

SPACER, .50 X 1.00 X 2.25

Note: (61" MODELS)

$13.99

$

Usually ships in 2-12 days

0
