S 175X (5900919) - Snapper Pro S175X Series 52" Zero-Turn Mower, 20hp Yanmar 52" Mower Deck - Rollers & Casters Parts Diagram

S175X Series 52" Zero-Turn Mower, 20hp Yanmar

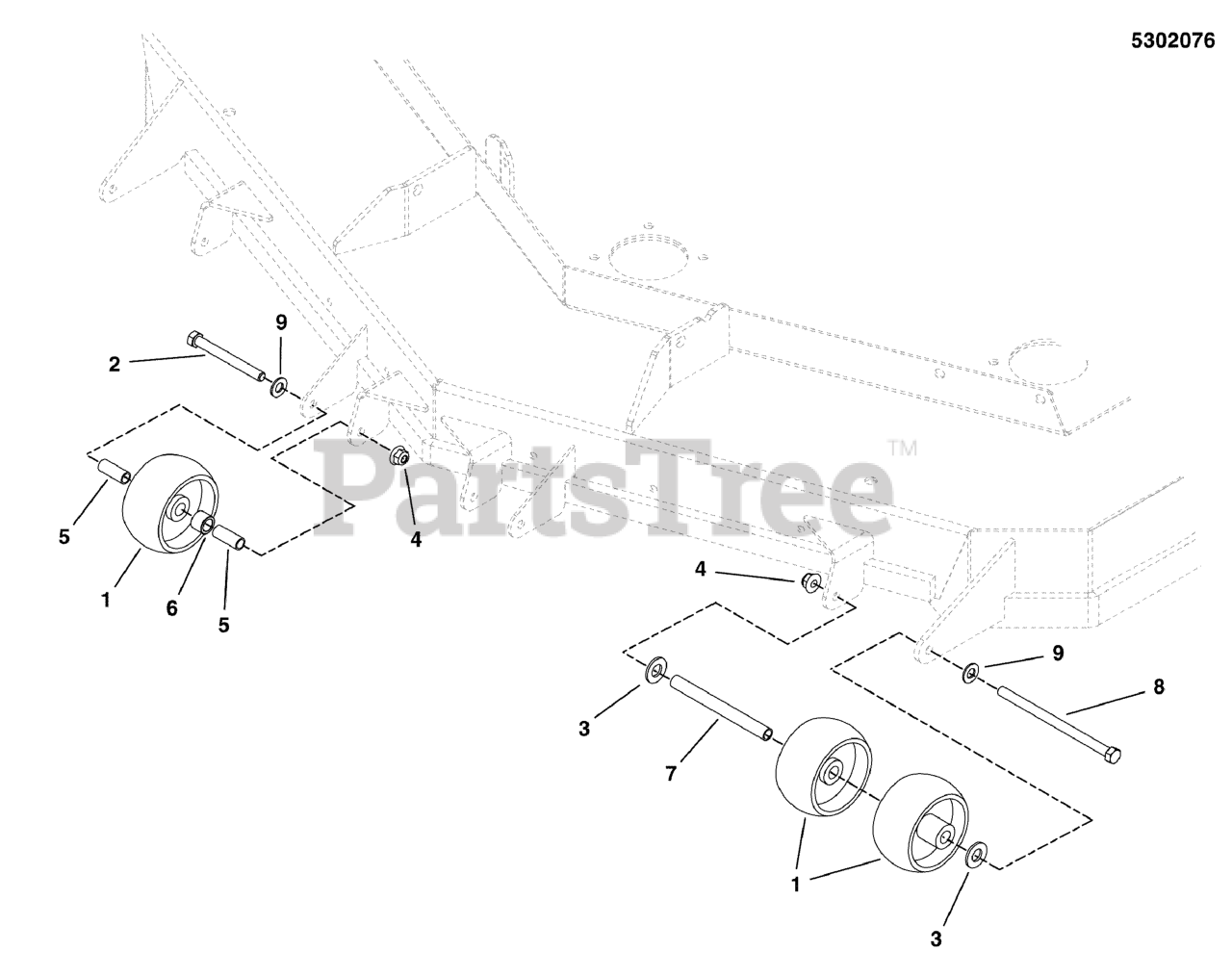

52" Mower Deck - Rollers & Casters Parts Diagram

  • Title
1

Snapper Pro 1714760

WHEEL- 2.00 WIDE 3.88 DIA 0.531ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

4

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5047027

SPACER, .51 X .75 X .56
(Superseded to 5047027SM)

$5.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

9

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
