S 175X (5900919) - Snapper Pro S175X Series 52" Zero-Turn Mower, 20hp Yanmar 52" Mower Deck - Housing, Covers, Spindles & Blades Side Discharge Export Parts Diagram

S175X Series 52" Zero-Turn Mower, 20hp Yanmar

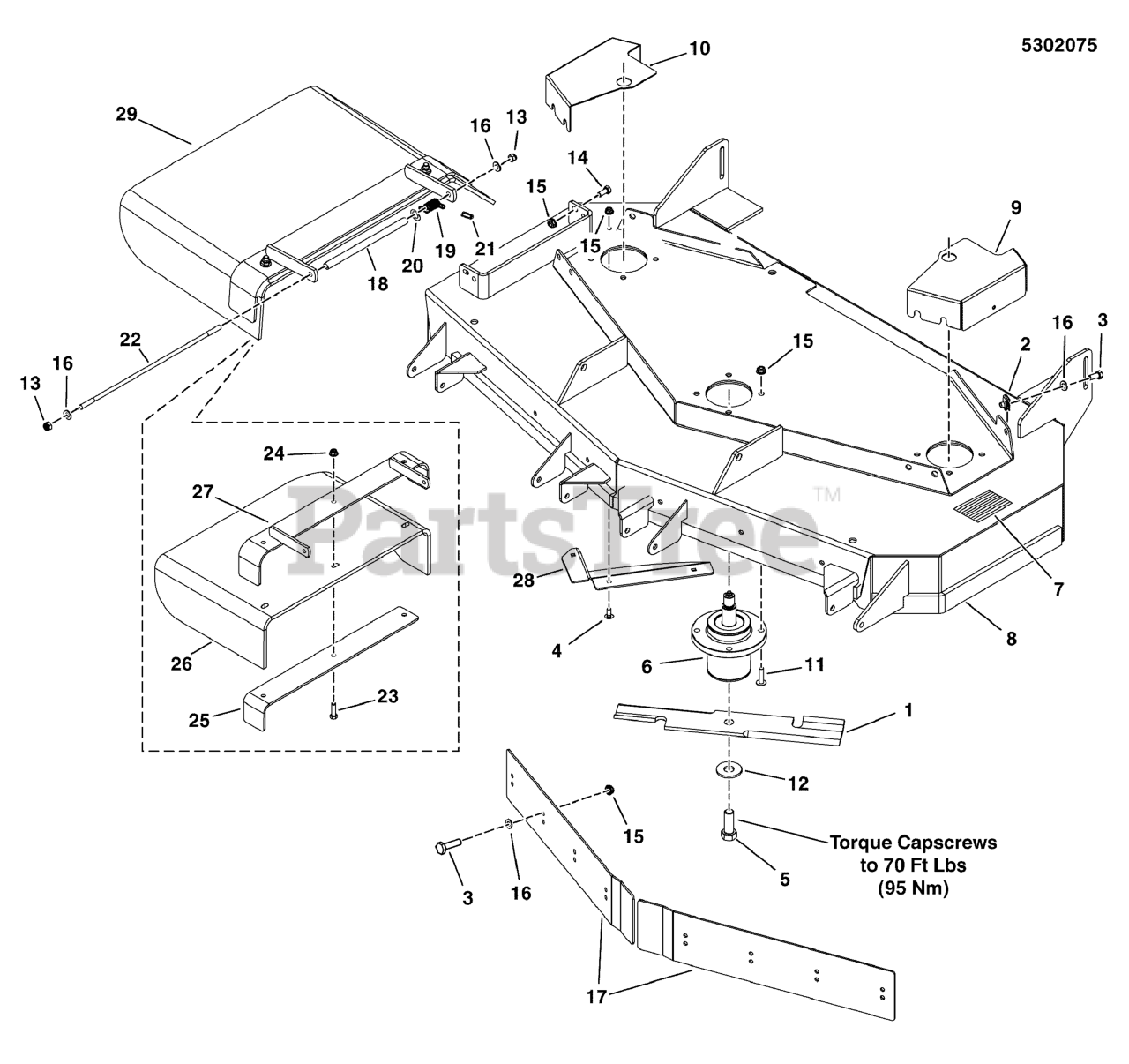

52" Mower Deck - Housing, Covers, Spindles & Blades Side Discharge Export Parts Diagram

  • Title

1

Snapper Pro 5021227S

BLADE, 18, SET OF THREE

$80.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

4

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

5

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer sold seperately)

$231.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

8

Snapper Pro 5600393

DECK SHELL W/ DECALS, 52SB, S175X

$

$

Currently unavailable

9

Snapper Pro 5401605D

GUARD, 52" DECK, IS2000 - LH - RED

$

$

Currently unavailable

10

Snapper Pro 5401606D

GUARD, 52" DECK, IS2000 - RH - RED

$

$

Currently unavailable

11

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

13

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Snapper Pro 5402476A

BAFFLES. FRONT DISCHARGE, 52 YAN - BLK

$37.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5050086X8

TUBE, 1/2 X 3/8 BLACK POLY, 8.00 LG
(Superseded to 5050086X8SM)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025164

WASHER, 5/16 FENBER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5042555

ROB, 5/16 X 13.75,
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

25

Snapper Pro 5402362A

SUPPORT,DISCHARGE CHUTE - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5402404

CHUTE, DISCHARGE, RUBBER, 44/48/52
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

28

Snapper Pro 5403548A

WELD, DISCHARGE BAFFLE, 52" - BLK

$19.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5600132

KIT, DISCHARGE CHUTE, 44/48/52

$

$

Not available
