S 175X (5900919) - Snapper Pro S175X Series 52" Zero-Turn Mower, 20hp Yanmar 52" Mower Deck - Hanger Chains Export Models Parts Diagram

S175X Series 52" Zero-Turn Mower, 20hp Yanmar

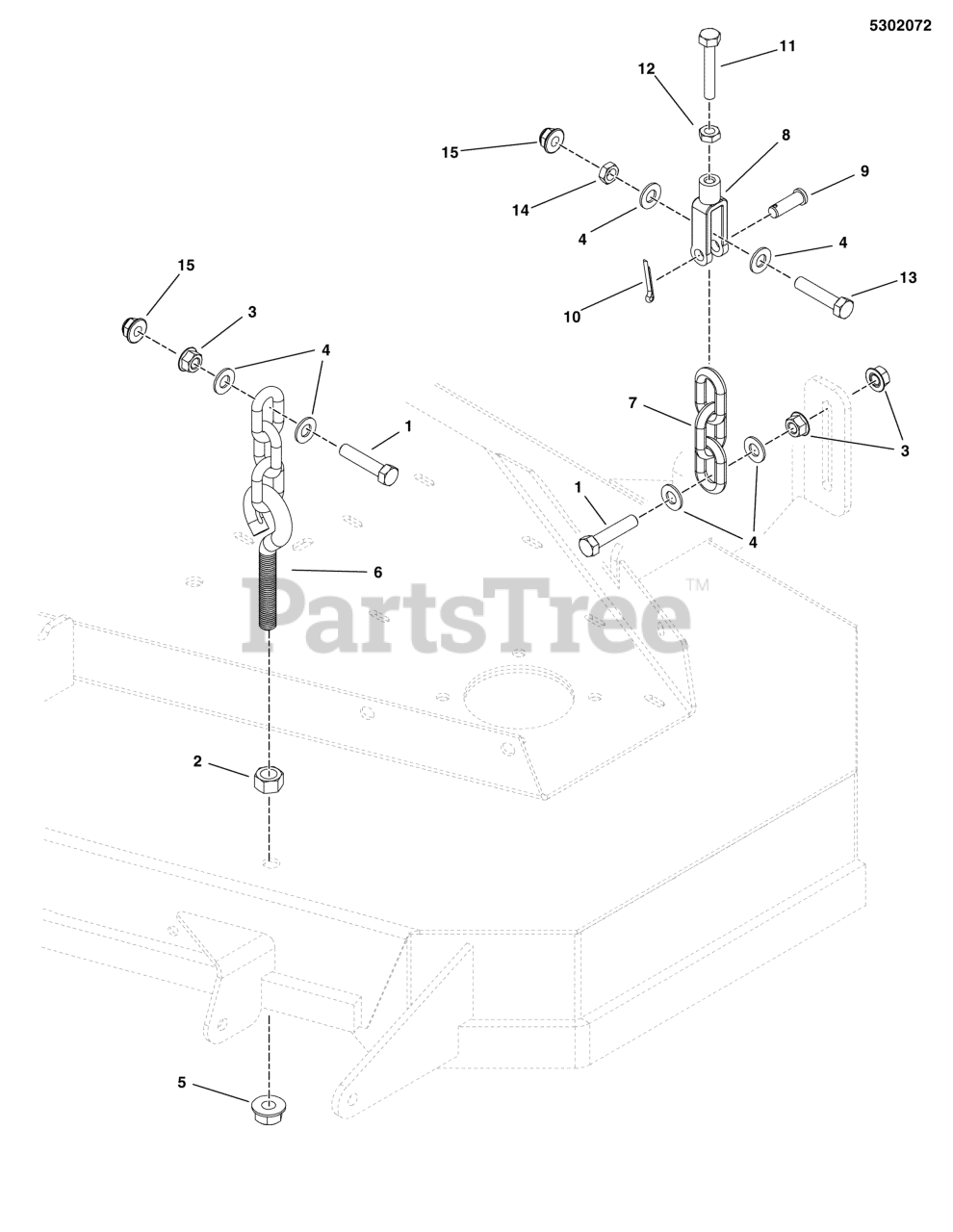

52" Mower Deck - Hanger Chains Export Models Parts Diagram

  • Title

1

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5025038

NUT, 1/2-13 HEX, YZ
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

4

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

6

Snapper Pro 5104303

HANGER, FRONT DECK - 4 LINK, 5.5" EB
(Superseded to 5104303YP)

$53.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5050878X3

CHAIN, 5/16 GD30, 3 LINKS
(Superseded to 5050878X3SM)

$8.49

$

In Stock, only 2 left!

0

8

Snapper Pro 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, YZ
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

14

Snapper Pro 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 14

0

15

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
