S 175X (5900594) - Snapper Pro S175X Series 52" Zero-Turn Mower, 24hp Yanmar 52" Mower Deck - Pulleys, Belt & Idler Arm Domestic Models Parts Diagram

S175X Series 52" Zero-Turn Mower, 24hp Yanmar

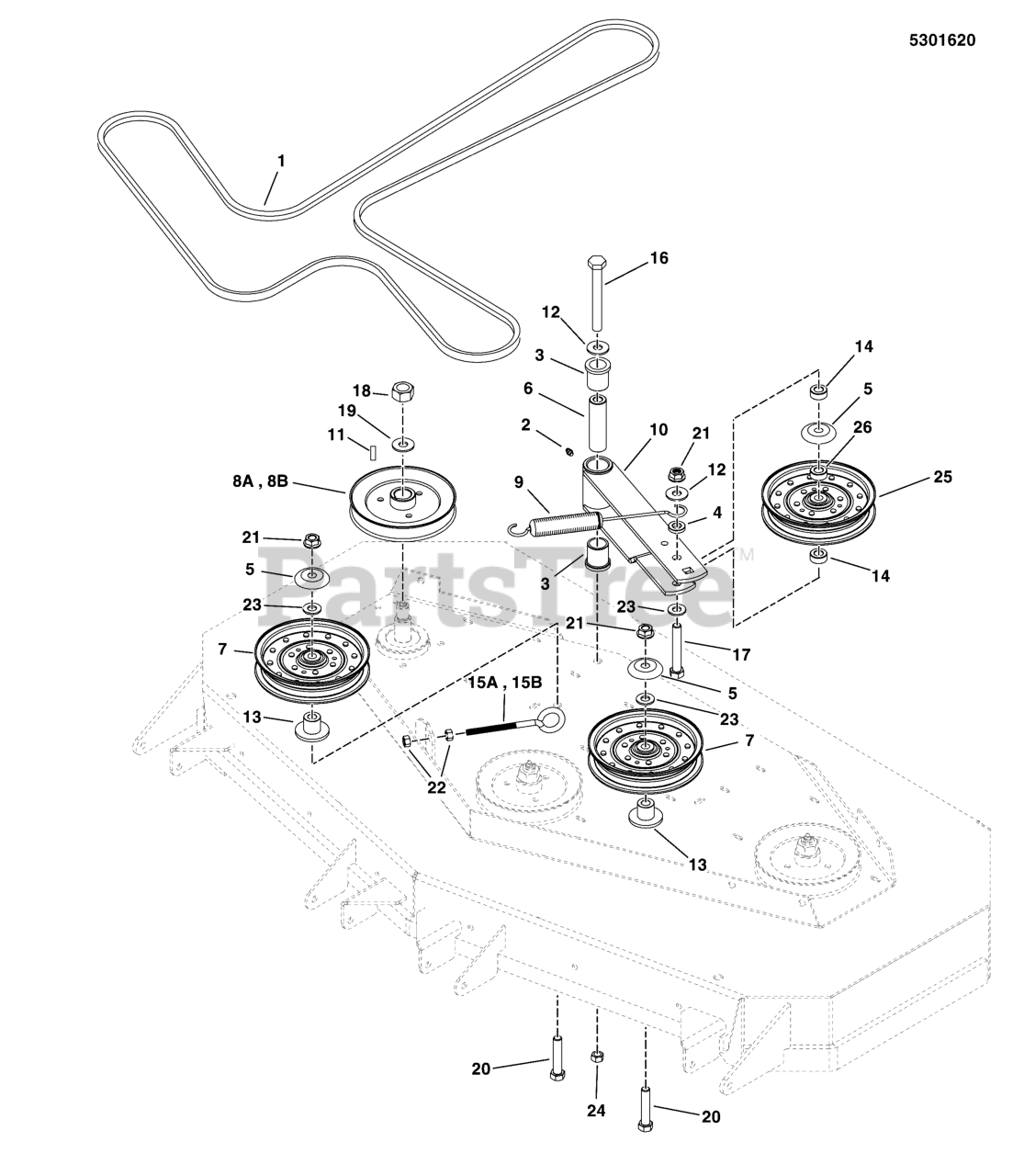

52" Mower Deck - Pulleys, Belt & Idler Arm Domestic Models Parts Diagram

  • Title

1

Snapper Pro 5104063

BELT, 5V, 182.00"EL, LRG ARAMID, WRP, RC
(Superseded to 5104063FS)

$142.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

4

Snapper Pro 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

5

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

6

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

7

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

8a

Snapper Pro 5100444

PULLEY, SPIN, 6.5 OD X 25MM,
(Superseded to 5100444FS)

Note: (3TNM68-AFS Series Models)

$99.99

$

Usually ships in 2-12 days

0

8b

Snapper Pro 5101351

PULLEY, 5.926 OVER BALL
(Superseded to 5101351YP)

Note: (3TNM72-AFS Series Models)

$69.99

$

In Stock, Qty 9

0

9

Snapper Pro 5023340

SPRING-EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5403134A

WELD, IDLER ARM - BLK
(Superseded to 5600143)

$88.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

12

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

13

Snapper Pro 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

14

Snapper Pro 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

15a

Snapper Pro 5102118

EYE BOLT, 3/8-16 X 6.88, 3THRD, 1EYE
(Superseded to 5102118FS)

Note: (3TNM68-AFS Series Models)

$15.99

$

Usually ships in 2-12 days

0

15b

Snapper Pro 5021811

EYE BOLT, 3/8-16 X 8, 1 EYE
(Superseded to 5021811SM)

Note: (3TNM72-AFS Series Models)

$8.49

$

In Stock, Qty 12

0

16

Snapper Pro 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 2 left!

0

17

Snapper Pro 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

18

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

19

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

21

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

22

Snapper Pro 5025034

NUT, 3/8-16 HEX, YZ
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

24

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

25

Snapper Pro 5023492

PULLEY, IDLER - 5

$111.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5020870

INSERT, BEARING
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0
