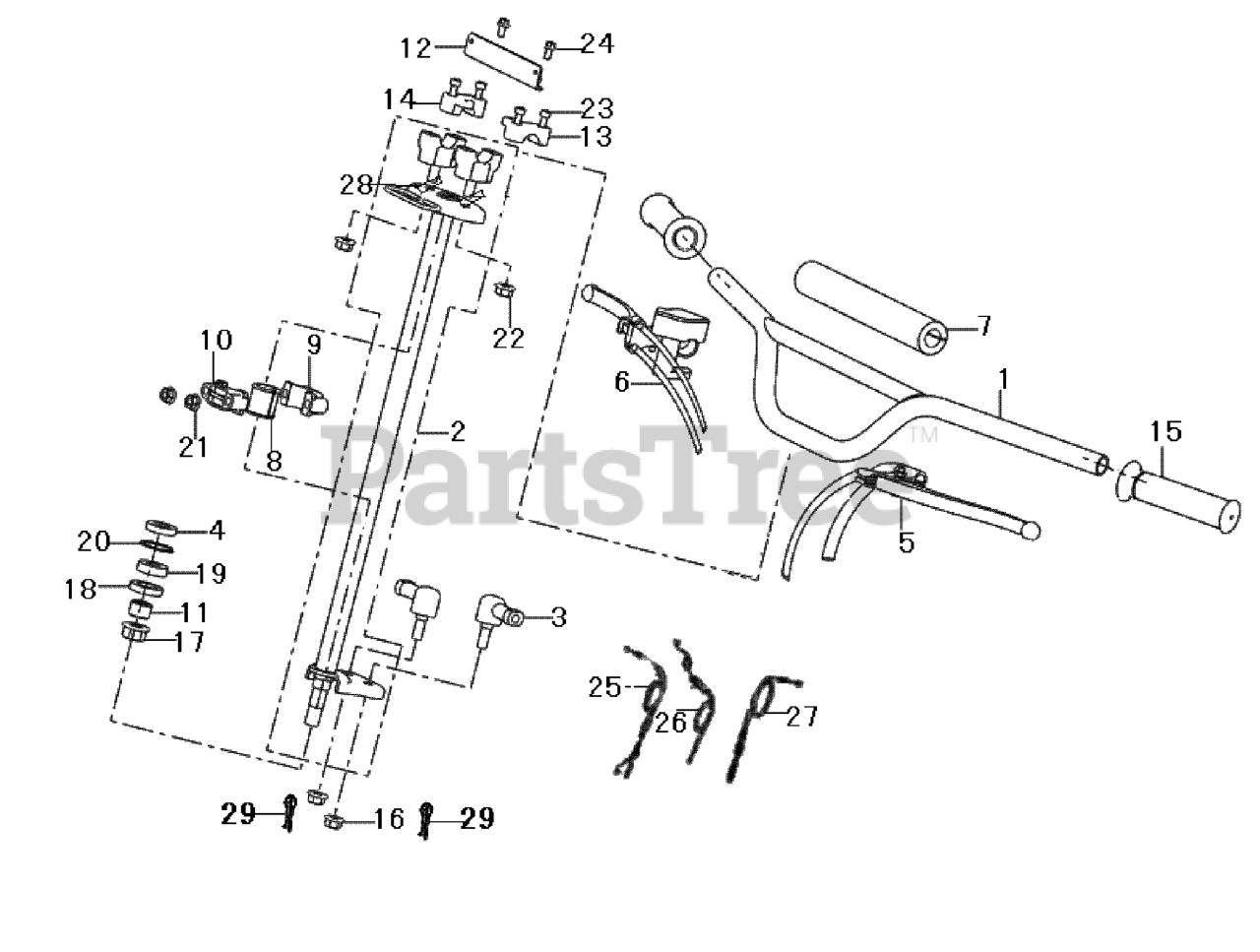

S-1544 - Murray 90cc ATV (2002) Steering Parts Diagram

90cc ATV

Steering Parts Diagram

  • Title
1

Murray 7201200

HANDLEBAR

$

$

Currently unavailable

2

Murray 7201201

SHAFT, STEERING

$

$

Currently unavailable

3

Murray 7201202

BALL JOINT

$

$

Currently unavailable

4

Murray 7201203

SEAL, OIL

$

$

Currently unavailable

5

Murray 7201204

LEVER ASSY., LEFT

$

$

Currently unavailable

6

Murray 7201205

LEVER ASSY, RIGHT

$

$

Currently unavailable

7

Murray 7201206

PAD, HANDLEBAR

$

$

Currently unavailable

8

Murray 7201207

BUSHING, STEERING

$

$

Currently unavailable

9

Murray 7201208

COLLAR HALF, REAR BUSHING

$

$

Currently unavailable

10

Murray 7201209

COLLAR HALF, FRONT BUSHING

$

$

Currently unavailable

11

Murray 7201210

COLLAR, STEERING SHAFT

$

$

Currently unavailable

12

Murray 7201211

BRACKET

$

$

Currently unavailable

13

Murray 7201212

HANDLEBAR HOLDER, LEFT

$

$

Currently unavailable

14

Murray 7201213

HANDLEBAR HOLDER, RIGHT

$

$

Currently unavailable

15

Murray 7201214

GRIP, HANDLEBAR

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

18

Murray 7201217

OIL SEAL

$

$

Currently unavailable

19

Murray 7201218

BEARING

$

$

Currently unavailable

20

Murray 7201219

CIRCLIP

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

23

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Murray 7201425

CABLE ASSY. 100cc, THROTTLE

$

$

Currently unavailable

26

Murray 7201225

CABLE ASSY., REAR BRAKE

$

$

Currently unavailable

27

Murray 7201226

CABLE ASSY., FRONT BRAKE

$

$

Currently unavailable

28

Murray 7201227

HANDLEBAR HOLDER (BOTTOM)

$

$

Currently unavailable

29

Murray 7201228

PIN, COTTER

$

$

Currently unavailable
