S-1544 - Murray 90cc ATV (2002) Clutch Assembly Parts Diagram

90cc ATV

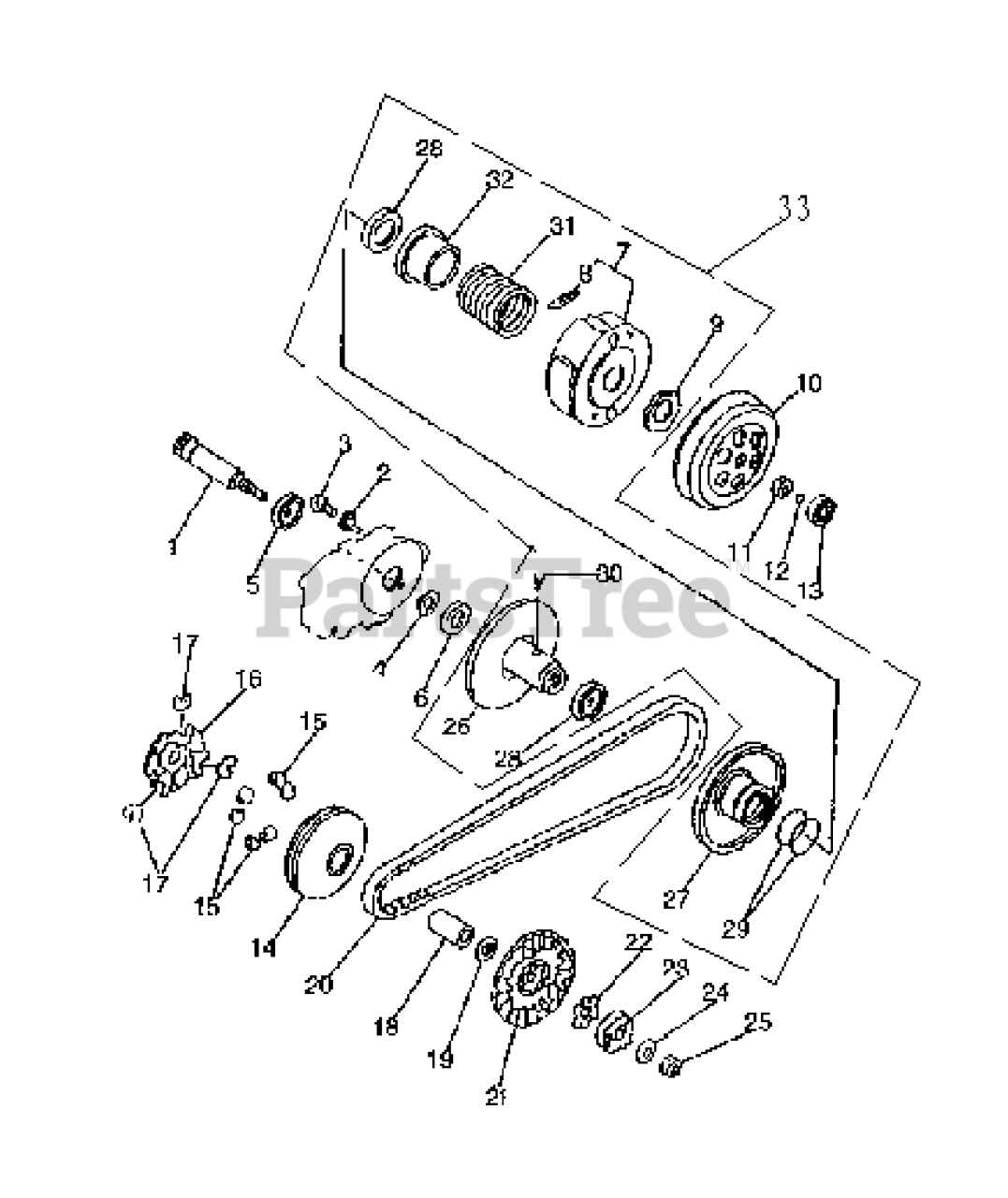

Clutch Assembly Parts Diagram

  • Title

1

Murray 72016820

PRIMARY DRIVE GEAR

$

$

Currently unavailable

2

Murray 7201551

WASHER

$

$

Currently unavailable

3

Murray 7201552

SCREW

$

$

Currently unavailable

4

Murray 7201443

CIRCLIP

$1.99

$

Usually ships in 2-12 days

0

5

Murray 7201744

ROLING BEARING

$

$

Currently unavailable

6

Murray 7201554

OIL SEAL

$

$

Currently unavailable

7

Murray 7201555

SHOE CLUTCH ASSY,

$

$

Currently unavailable

8

Murray 7201556

SPRING

Note: (Not included with Ref. No. 7)

$

$

Currently unavailable

9

Murray 7201557

NUT

$

$

Currently unavailable

10

Murray 7201558

HOUSING

$

$

Currently unavailable

11

Murray 7201559

NUT

$1.99

$

Usually ships in 2-12 days

0

12

Murray 7201560

O-RING

$

$

Currently unavailable

13

Murray 7201553

BEARING

$

$

Currently unavailable

14

Murray 7201561

FACE, MOVABLE DRIVE

$

$

Currently unavailable

15

Murray 7201681

ROLLER

$

$

Currently unavailable

16

Murray 7201563

PLATE, MOVABLE DRIVE

$

$

Currently unavailable

17

DAMPER

Note: (Included with Ref. No. 16)

$

$

Not available

18

Murray 7201565

COLLAR

$

$

Currently unavailable

19

Murray 7201566

WASHER

$

$

Currently unavailable

20

Murray 7201567

V BELT, DRIVE

$

$

Currently unavailable

21

Murray 7201568

FACE, FIXED DRIVE

$

$

Currently unavailable

22

Murray 7201569

PLATE, WOODRUFF KEY

$

$

Currently unavailable

23

Murray 7201570

STARTING DISC

$

$

Currently unavailable

24

Murray 7201571

WASHER, SPRING

$

$

Currently unavailable

25

Murray 7201572

NUT

$

$

Currently unavailable

26

Murray 7201573

FACE, FIXED DRIVEN

$

$

Currently unavailable

27

Murray 7201574

FACE, MOVABLE DRIVEN

$

$

Currently unavailable

28

Murray 7201575

OIL SEAL

$

$

Currently unavailable

29

Murray 7201576

O-RING

$

$

Currently unavailable

30

Murray 7201577

PIN, GUIDE

$

$

Currently unavailable

31

Murray 7201682

SPRING

$

$

Currently unavailable

32

Murray 7201579

SEAT, SPRING

$

$

Currently unavailable

33

Murray 7201708

DRIVEN PULLEY and CLUTCH ASSY

$

$

Currently unavailable
