S-1544 - Murray 90cc ATV (2002) Carburetor Assembly Parts Diagram

90cc ATV

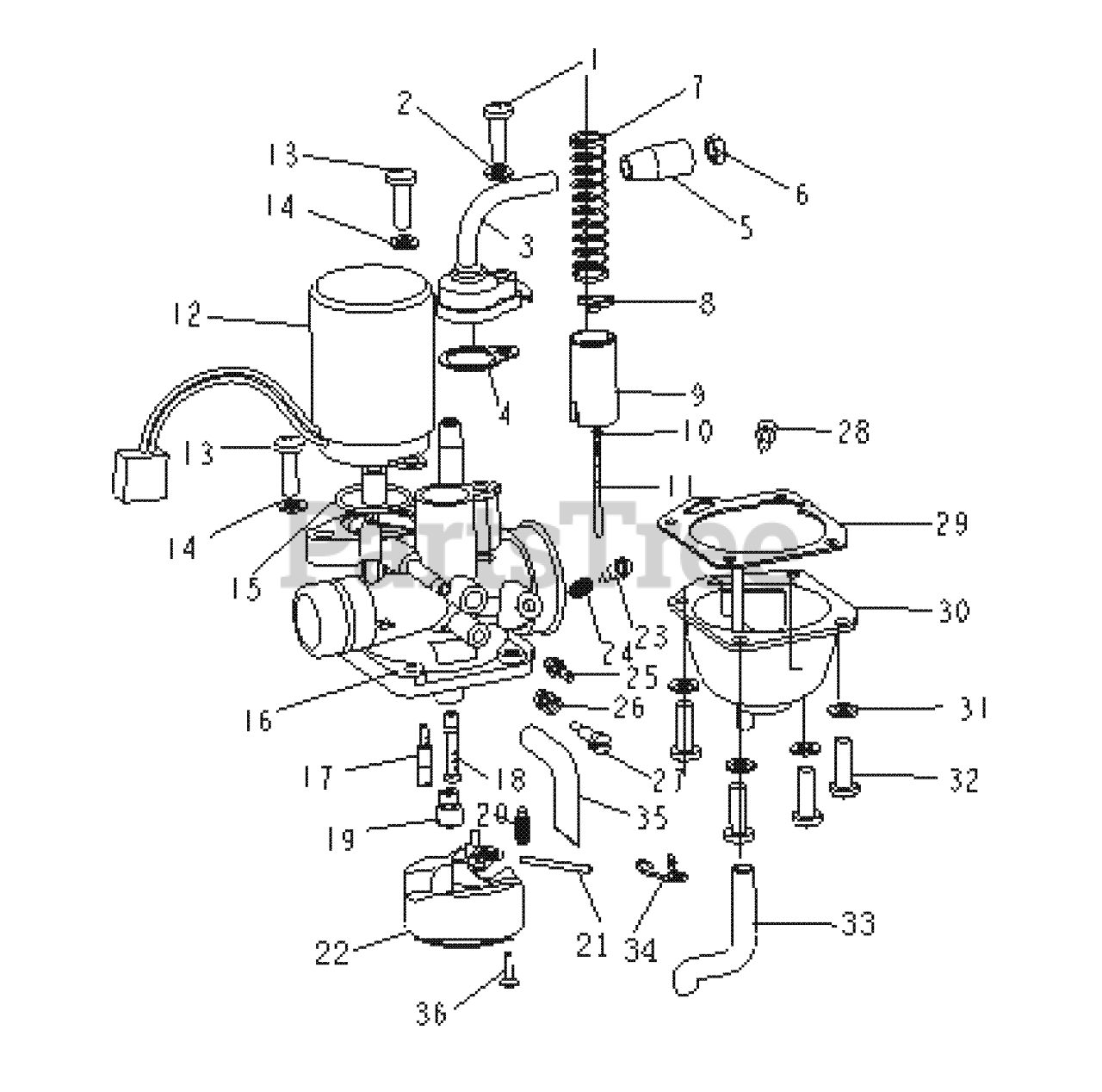

Carburetor Assembly Parts Diagram

  • Title
1

$

$

Currently unavailable

2

$

$

Currently unavailable

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Murray 7201613

BENT PIPE, TCC

$

$

Currently unavailable

6

Murray 7201614

SCREW NUT, TCC BENT PIPE

$

$

Currently unavailable

7

Murray 7201615

SPRING, RETURN

$

$

Currently unavailable

8

Murray 7201616

CLIP, V SHAPE

$

$

Currently unavailable

9

Murray 7201617

VALVE, PISTON

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Murray 7201619

NEEDLE, JET

$

$

Currently unavailable

12

Murray 7201620

THERMO ASSY

$

$

Currently unavailable

13

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Murray 7201622

O -RING, THERMO ASSY

$

$

Currently unavailable

16

Murray 7201623

BODY, CARBURETOR

$

$

Currently unavailable

17

Murray 7201624

JET, IDLE

$

$

Currently unavailable

18

Murray 7201625

JET, NEEDLE

$

$

Currently unavailable

19

UNKNOWN

$

$

Not available

20

Murray 7201627

VALVE, NEEDLE

$

$

Currently unavailable

21

Murray 7201628

PIN, FLOAT

$

$

Currently unavailable

22

$

$

Currently unavailable

23

Murray 7201630

SCREW, AIR

$

$

Currently unavailable

24

Murray 7201631

SPRING, AIR SCREW

$

$

Currently unavailable

25

Murray 7201632

PIPE, OIL

$

$

Currently unavailable

26

Murray 7201633

SPRING, ADJUSTING

$

$

Currently unavailable

27

Murray 7201634

SCREW, IDLE SPEED

$

$

Currently unavailable

28

Murray 7201635

SCREW, DRAIN

$

$

Currently unavailable

29

Murray 7201636

GASKET, FLOAT CHAMBER

$

$

Currently unavailable

30

Murray 7201637

CHAMBER, FLOAT

$

$

Currently unavailable

31

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Murray 7201639

HOSE, DRAIN

$

$

Currently unavailable

34

$

$

Currently unavailable

35

$

$

Currently unavailable

36

$

$

Currently unavailable

37

Murray 7201709

CARBURETOR ASSY

$

$

Currently unavailable
