S-1543 - Murray 50cc ATV (2002) Transmission System Parts Diagram

50cc ATV

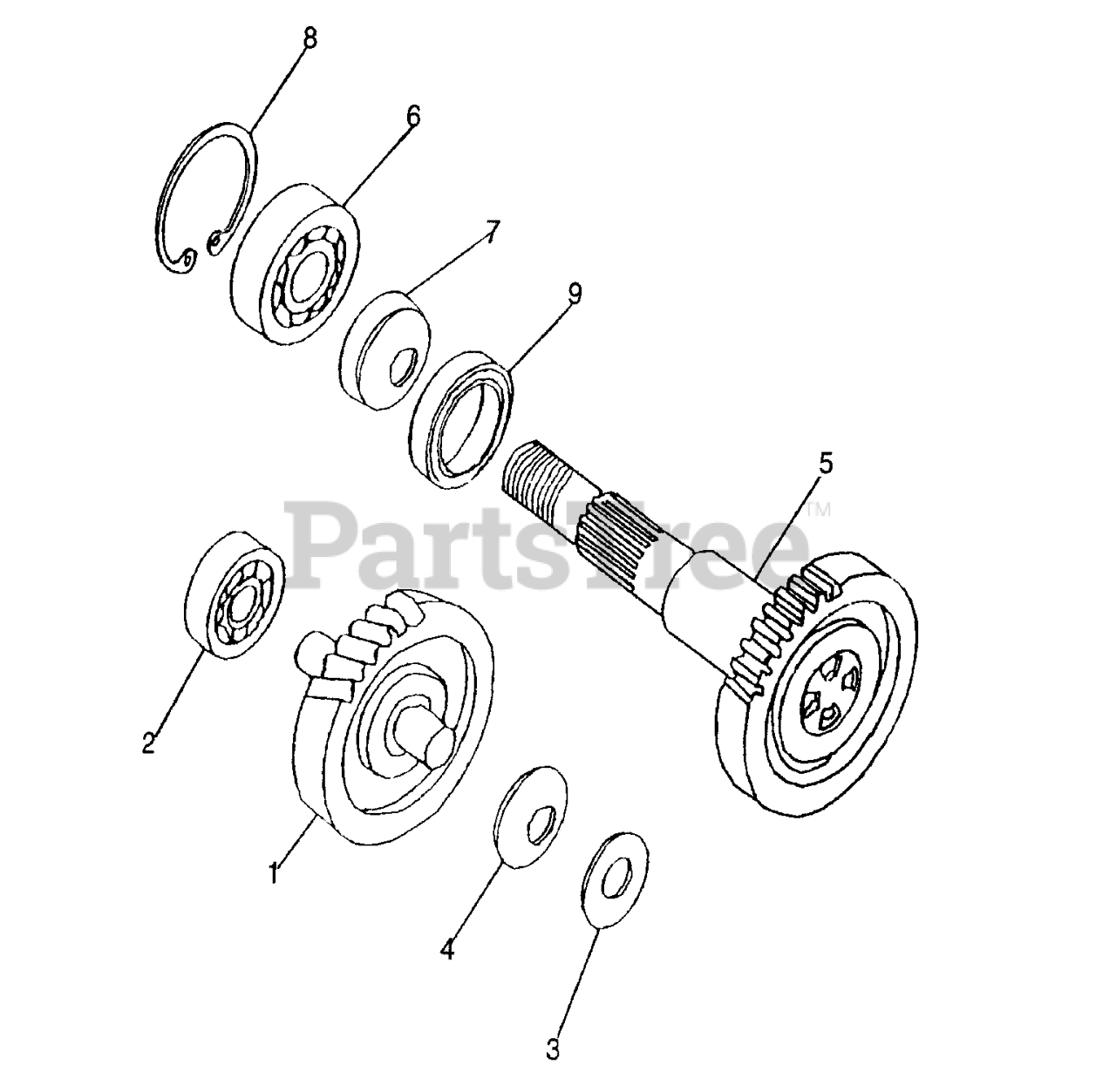

Transmission System Parts Diagram

  • Title
1

Murray 7201580

SHAFT, IDLE

$

$

Currently unavailable

2

Murray 7201736

BEARING 6201

$

$

Currently unavailable

3

Murray 7201582

PLATE WASHER 12

$

$

Currently unavailable

4

Murray 7201583

WASHER, CONICAL

$

$

Currently unavailable

5

Murray 7201584

SHAFT, REAR BOX

$

$

Currently unavailable

6

Murray 7201585

NEEDLE BEARING

$

$

Currently unavailable

7

Murray 7201586

OIL SEAL

$

$

Currently unavailable

8

Murray 7201587

CIRCLIP

$

$

Currently unavailable

9

Murray 7201588

NEEDLE BEARING

$

$

Currently unavailable
