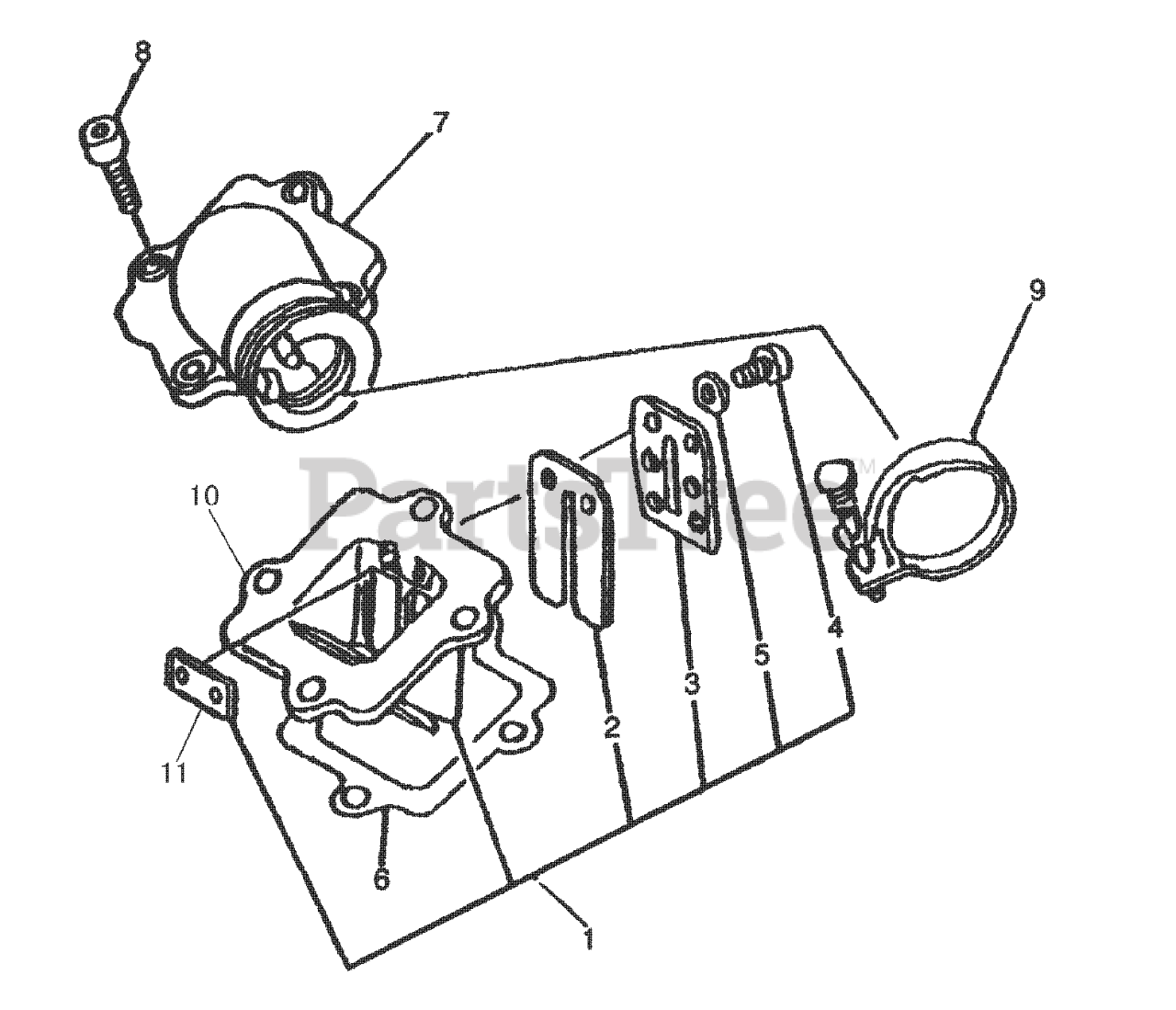

S-1543 - Murray 50cc ATV (2002) Reed Valve Assembly Parts Diagram

50cc ATV

Reed Valve Assembly Parts Diagram

  • Title
1

Murray 7201589

REED VALVE ASSY

$

$

Currently unavailable

2

Murray 7201590

REED VALVE

$

$

Currently unavailable

3

Murray 7201591

REED VALVE STOPPER

$

$

Currently unavailable

4

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Murray 7201594

VALVE SEAT GASKET

$

$

Currently unavailable

7

Murray 7201595

PIPE, INTAKE

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Murray 7201597

CLAMP, HOSE

$

$

Currently unavailable

10

Murray 7201734

VALVE SEAT

$

$

Currently unavailable

11

Murray 7201735

REED VALVE GASKET

$

$

Currently unavailable
