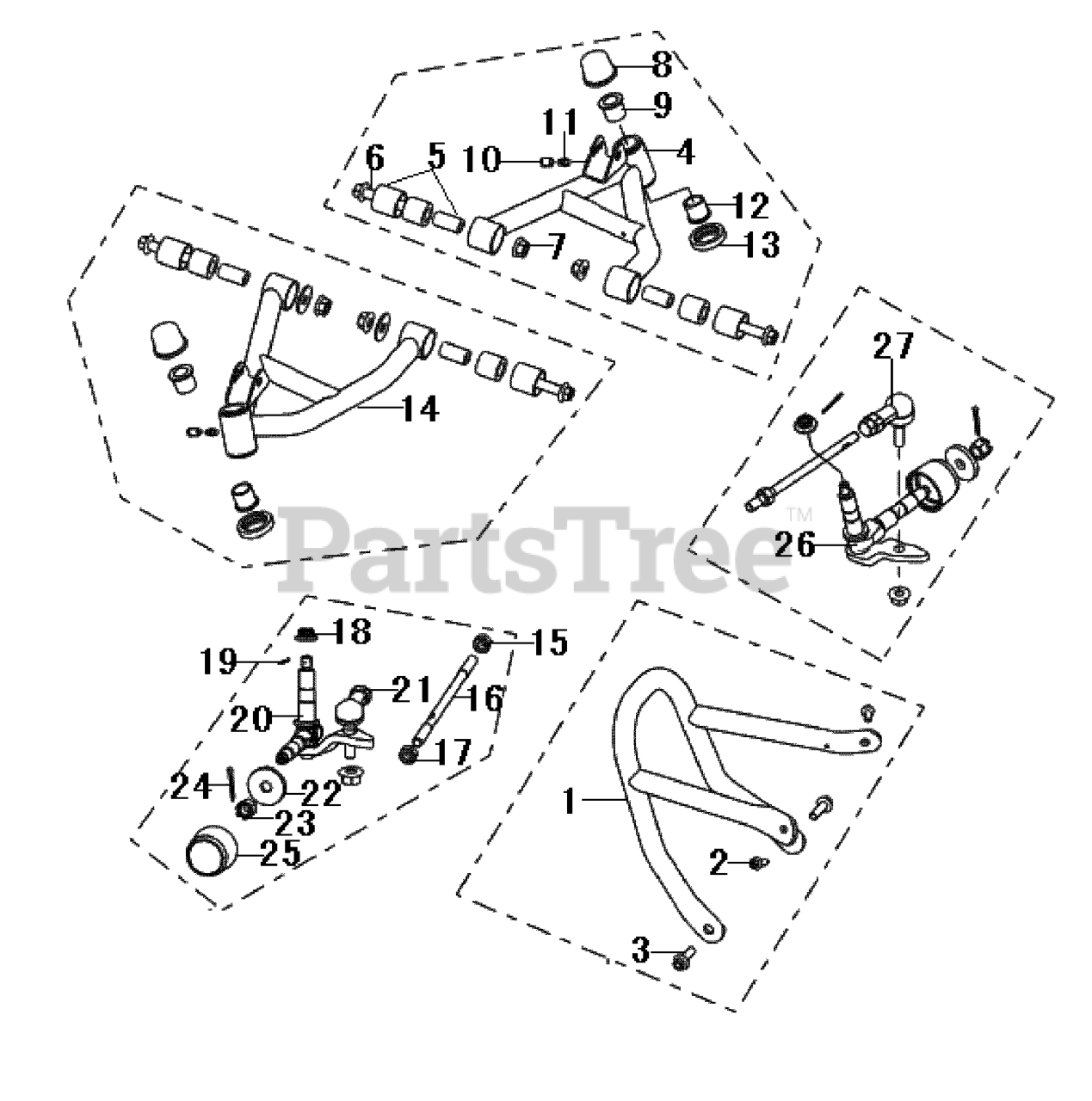

S-1543 - Murray 50cc ATV (2002) Frame Ii Parts Diagram

50cc ATV

Frame Ii Parts Diagram

  • Title
1

Murray 7201327

FRONT GUARD

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray 7201328

A-ARM, RIGHT

$

$

Currently unavailable

5

Murray 7201329

BUSHING ASSY.

$

$

Currently unavailable

$

$

Currently unavailable

$2.49

$

Usually ships in 2-12 days

0

8

Murray 7201232

DUST CAP

$

$

Currently unavailable

9

Murray 7201333

BUSHING

$

$

Currently unavailable

10

Murray 7201334

GREASE FITTING CAP

$

$

Currently unavailable

11

Murray 7201335

GREASE FITTING

$

$

Currently unavailable

12

Murray 7201336

BUSHING

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Murray 7201338

A-ARM, LEFT

$29.99

$

Usually ships in 2-12 days

0

$1.99

$

Usually ships in 2-12 days

0

16

Murray 7201340

TIE ROD

$

$

Currently unavailable

$1.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

19

Murray 7201228

SPLIT PIN

$

$

Currently unavailable

20

Murray 7201342

SPINDLE ASSY, LEFT

$

$

Currently unavailable

21

Murray 7201343

BALL JOINT

$

$

Currently unavailable

22

$

$

Currently unavailable

23

Murray 7201345

NUT, CASTLE

$

$

Currently unavailable

24

Murray 7201346

PIN, COTTER

$

$

Currently unavailable

25

Murray 7201347

HUB CAP

$

$

Currently unavailable

26

Murray 7201348

SPINDLE ASSY., RIGHT

$

$

Currently unavailable

27

Murray 7201349

BALL JOINT

$

$

Currently unavailable
