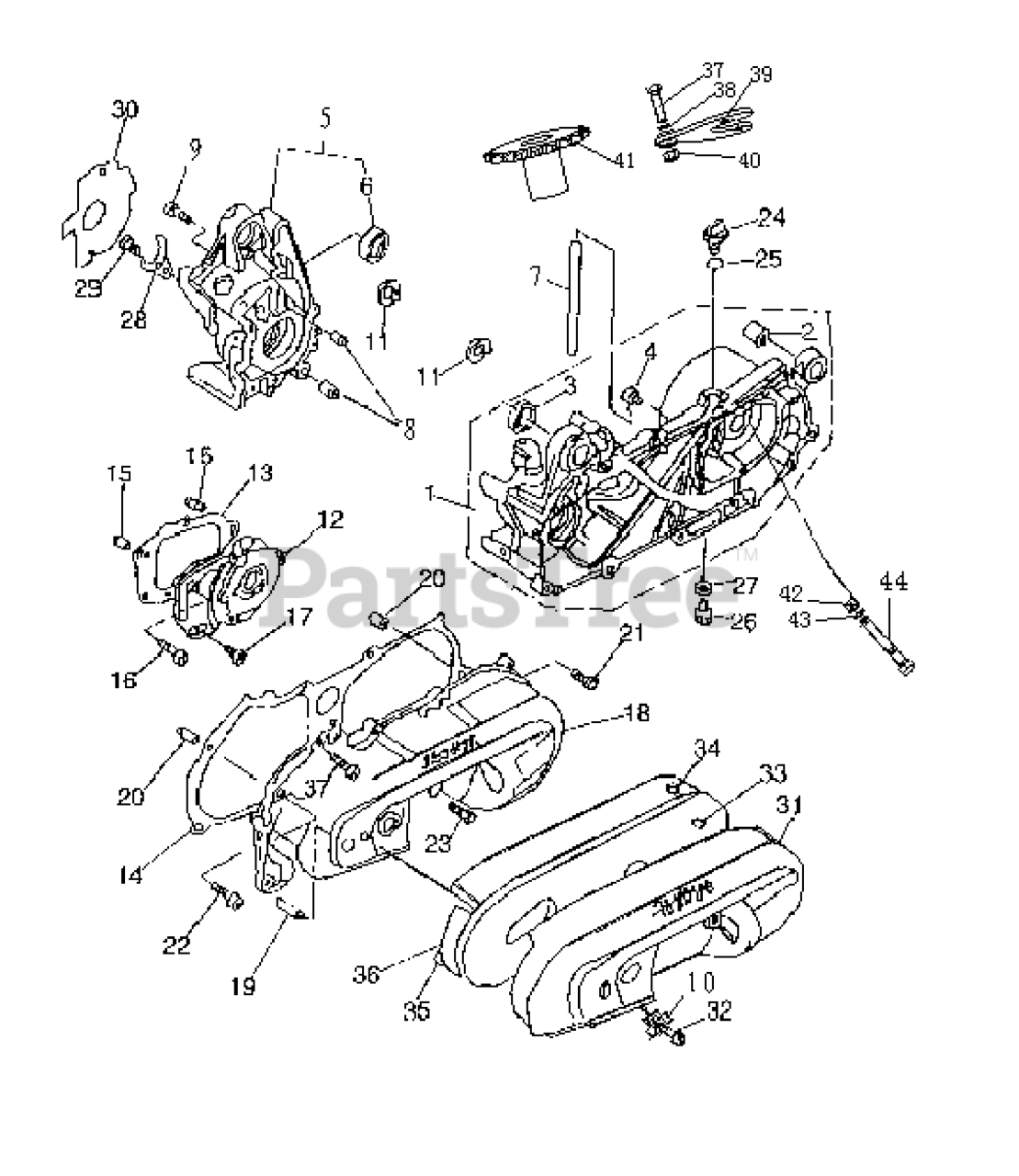

S-1543 - Murray 50cc ATV (2002) Crankcase Assy Parts Diagram

50cc ATV

Crankcase Assy Parts Diagram

  • Title

1

Murray 7201788

CRANKCASE, LH. AND RH.

Note: (Includes Ref. No's 1, 5 and 8 - Not Ref. No. 6)

$

$

Currently unavailable

2

Murray 7201434

GROMMET

$

$

Currently unavailable

3

Murray 7201747

GROMMET

$

$

Currently unavailable

4

Murray 7201436

BREATHER PLUG

$

$

Currently unavailable

5

UNKNOWN

$

$

Not available

6

Murray 7201747

GROMMET

$

$

Currently unavailable

7

Murray 7201439

HOSE

$

$

Currently unavailable

8

Murray 7201440

DOWEL PIN

$

$

Currently unavailable

9

Murray 7201441

SCREW

$

$

Currently unavailable

10

Murray 7201442

NUT BUSH, RUBBER

$

$

Currently unavailable

11

Murray 7201443

CIRCLIP

$1.99

$

Usually ships in 2-12 days

0

12

Murray 7201444

CRANKCASE COVER

$

$

Currently unavailable

13

Murray 7201445

GASKET, GEAR BOX

$1.99

$

Usually ships in 2-12 days

0

14

Murray 7201446

GASKET SIDE COVER

$4.99

$

Usually ships in 2-12 days

0

15

Murray 7201447

DOWEL PIN

$

$

Currently unavailable

16

Murray 7201372

SCREW

$

$

Currently unavailable

17

Murray 7201449

SCREW

$

$

Currently unavailable

18

Murray 7201450

SIDE COVER

$

$

Currently unavailable

19

Murray 7201451

SHAFT

$

$

Currently unavailable

20

Murray 7201447

DOWEL PIN

$

$

Currently unavailable

21

Murray 7201452

SCREW

$

$

Currently unavailable

22

Murray 7201441

SCREW

$

$

Currently unavailable

23

Murray 7201454

SCREW

$

$

Currently unavailable

24

Murray 7201455

OIL PLUG

$

$

Currently unavailable

25

Murray 7201456

O-RING

$

$

Currently unavailable

26

Murray 7201656

FLANGE BOLT

$

$

Currently unavailable

27

Murray 7201750

WASHER

$

$

Currently unavailable

28

Murray 7201748

HOLDER

$

$

Currently unavailable

29

Murray 7201311

SCREW

$

$

Currently unavailable

30

Murray 7201461

GASKET

$

$

Currently unavailable

31

Murray 7201462

PROTECTING COVER

$11.99

$

Usually ships in 2-12 days

0

32

Murray 7201463

SCREW

$

$

Currently unavailable

33

GASKET

Note: (Included with Ref. No. 31)

$

$

Not available

34

GASKET

Note: (Included with Ref. No. 31)

$

$

Not available

35

GASKET

Note: (Included with Ref. No. 31)

$

$

Not available

36

GASKET

Note: (Included with Ref. No. 31)

$

$

Not available

37

Murray 7201468

BOLT

$

$

Currently unavailable

38

Murray 7201469

WASHER

$

$

Currently unavailable

39

Murray 7201657

BRACKET ASSY

$

$

Currently unavailable

40

Murray 7201471

NUT

$

$

Currently unavailable

41

Murray 7201472

CHAIN WHEEL ASSY (15T)

$

$

Currently unavailable

42

Murray 7201749

NUT

$

$

Currently unavailable

43

Murray 7201474

WASHER

$

$

Currently unavailable

44

Murray 7201660

BOLT

$

$

Currently unavailable
