S-1543 - Murray 50cc ATV (2002) Carburetor Assembly Parts Diagram

50cc ATV

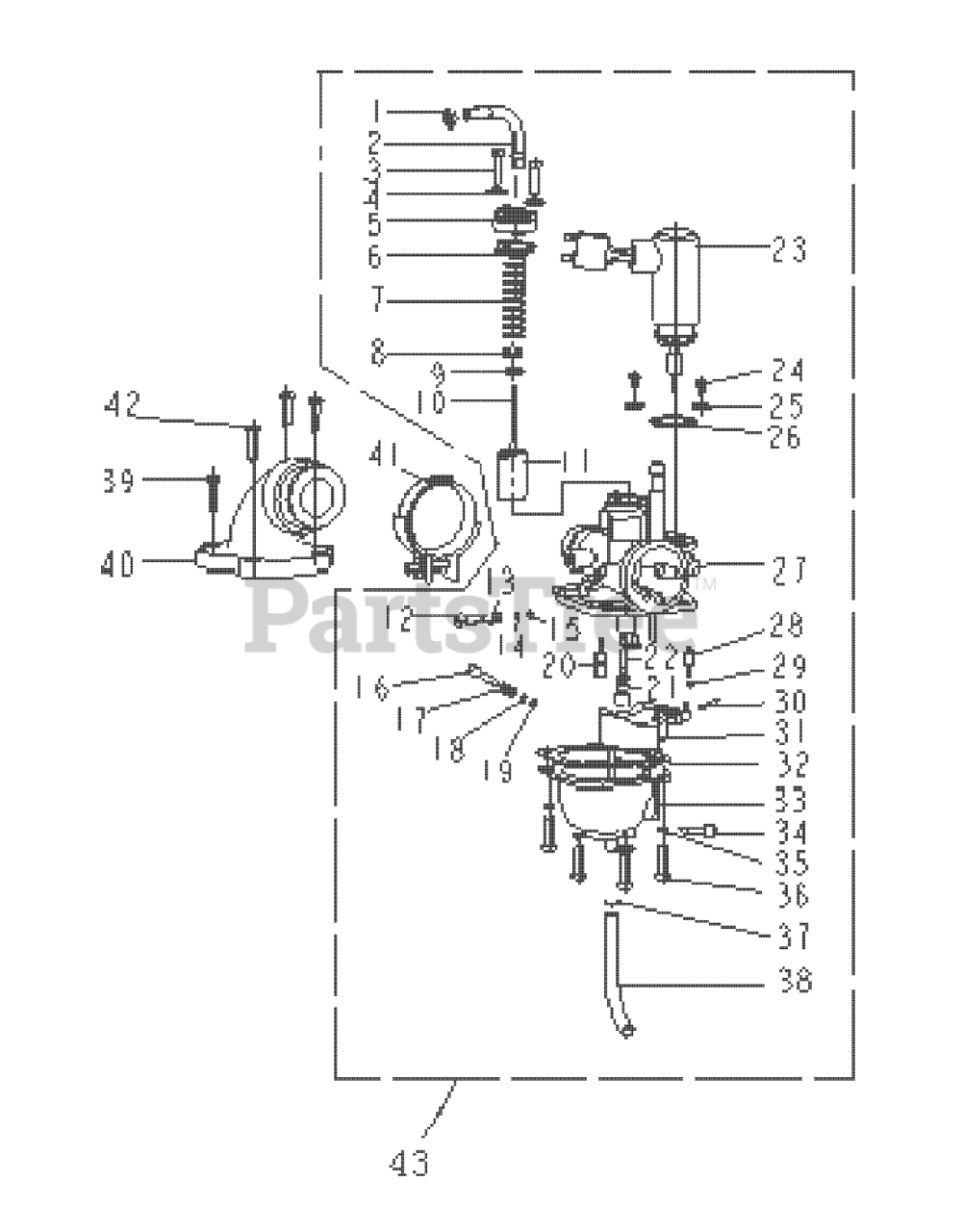

Carburetor Assembly Parts Diagram

  • Title
1

Murray 7201779

FIX SCREW

$

$

Currently unavailable

2

Murray 7201780

INSTRAINT PIPE

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Currently unavailable

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Murray 7201784

SPRING, RETURN

$

$

Currently unavailable

8

Murray 7201785

CLIP, V-SHAPE

$

$

Currently unavailable

$

$

Currently unavailable

10

Murray 7201752

NEEDLE, JET

$

$

Currently unavailable

11

Murray 7201753

VALVE, PISTON

$

$

Currently unavailable

12

Murray 7201754

SCREW, IDLE SPEED

$

$

Currently unavailable

13

Murray 7201636

SPRING, SPEED SCREW

$

$

Currently unavailable

14

Murray 7201755

WASHER, SPEED SCREW

$

$

Currently unavailable

15

Murray 7201756

O -RING, SPEED SCREW

$

$

Currently unavailable

16

Murray 7201757

SCREW, AIR

$

$

Currently unavailable

17

Murray 7201758

SPRING, AIR SCREW

$

$

Currently unavailable

18

Murray 7201759

WASHER, AIR SCREW

$

$

Currently unavailable

19

Murray 7201760

O-RING, AIR SCREW

$

$

Currently unavailable

20

Murray 7201761

JET, IDLE

$

$

Currently unavailable

21

Murray 7201762

JET, MAIN

$

$

Currently unavailable

22

Murray 7201763

JET, NEEDLE

$

$

Currently unavailable

23

Murray 7201764

THERMO ASSY

$

$

Currently unavailable

24

$

$

Currently unavailable

25

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Murray 7201767

BODY, CARBURETOR

$

$

Currently unavailable

28

Murray 7201768

VALVE, NEEDLE

$

$

Currently unavailable

29

$

$

Currently unavailable

30

Murray 7201770

PIN, FLOAT

$

$

Currently unavailable

31

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Murray 7201773

CHAMBER, FLOAT

$

$

Currently unavailable

34

$

$

Currently unavailable

35

$

$

Currently unavailable

36

$

$

Currently unavailable

37

$

$

Currently unavailable

38

Murray 7201777

HOSE, DRAIN

$

$

Currently unavailable

39

$

$

Currently unavailable

40

Murray 7201595

PIPE, INTAKE

$

$

Currently unavailable

41

$

$

Currently unavailable

42

$

$

Currently unavailable

43

Murray 7201710

CARBURETOR ASSY

$

$

Currently unavailable
