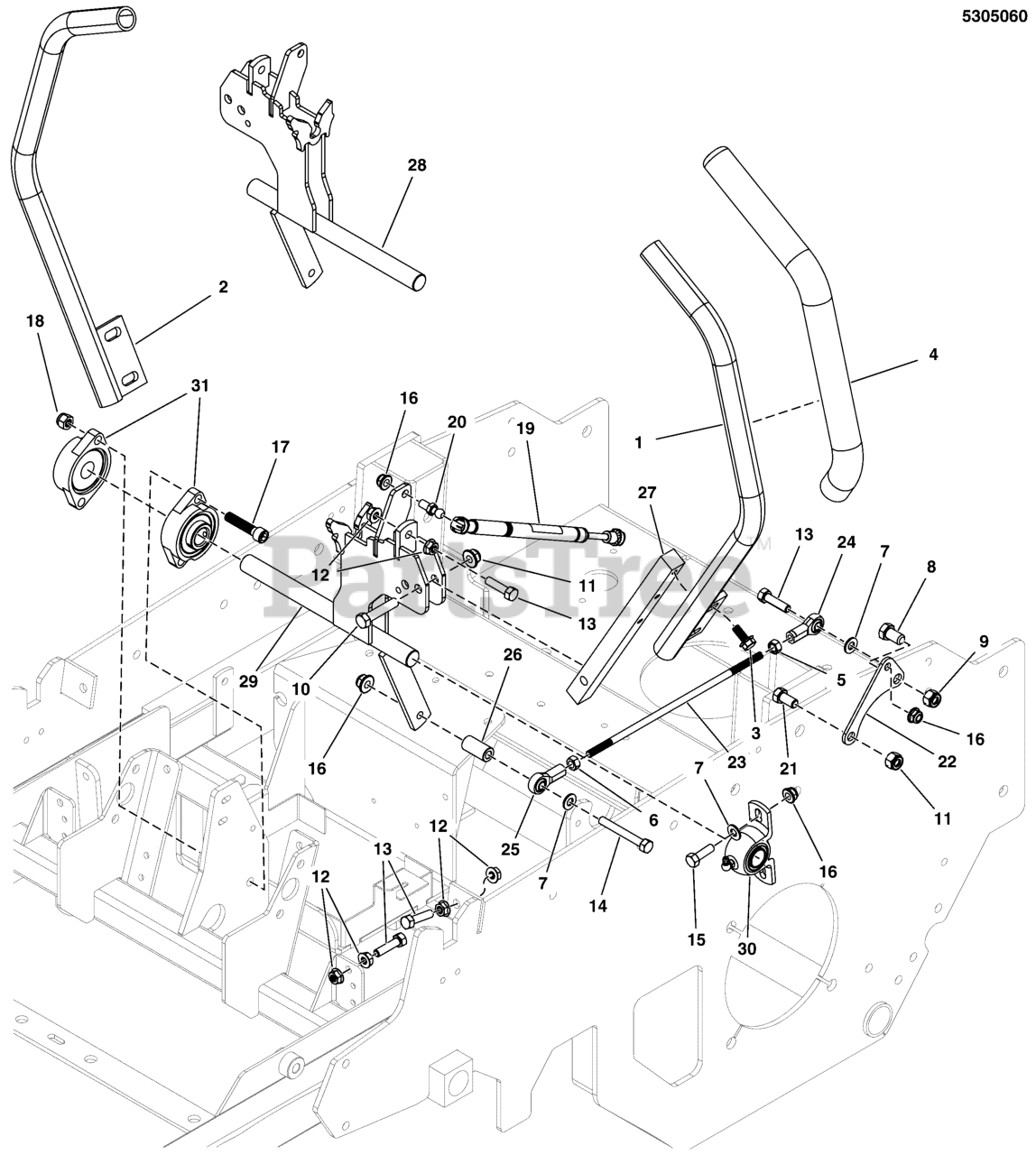

S 150XT (5901487) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki Motion Control Group S/N: 2017612395 & Above Parts Diagram

S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki

Motion Control Group S/N: 2017612395 & Above Parts Diagram

  • Title

1

Snapper Pro 5414429A

WELD,HANDLE MOTION CNTRL,17.0,1.0,LH,BLK
(Superseded to 5414429AA)

$48.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5414430A

WELD,HANDLE MOTION CNTRL,17.0,1.0,RH,BLK
(Superseded to 5414430AYP)

$48.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 14

0

4

Snapper Pro 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Snapper Pro 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 CZ
(Superseded to 5025015X6SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

13

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2 GD5 CZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

16

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025478

BOLT, 3/8-16 X 1-3/4, SHCS, CZ
(Superseded to 5025478YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

19

Snapper Pro 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

20

Snapper Pro 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

In Stock, Qty 12

0

21

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5405230A

PLATE, HYDRO CONNECTOR - BLK

$5.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5101135

ROD, HYDRO LINKAGE
(Superseded to 5101135YP)

$5.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

25

Snapper Pro 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102599

SPACER, .33 X .63 X 1.25, PM, CZ
(Superseded to 5102599YP)

$12.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5103106A

MOUNT, CONTROL ARM - BLK
(Superseded to 5103106AYP)

Note: (10.95" Total Length, 3 Adjustment Holes)

$54.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5415917A

WELD, CONTROL SHAFT, LH 150/160 - BLK

$

$

Currently unavailable

29

Snapper Pro 5415918A

WELD, CONTROL SHAFT, RH 150/160 - BLK

$

$

Currently unavailable

30

Snapper Pro 5101077

BEARING, 3/4" PILLOW BLOCK
(Superseded to 5101077YP)

$14.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0
