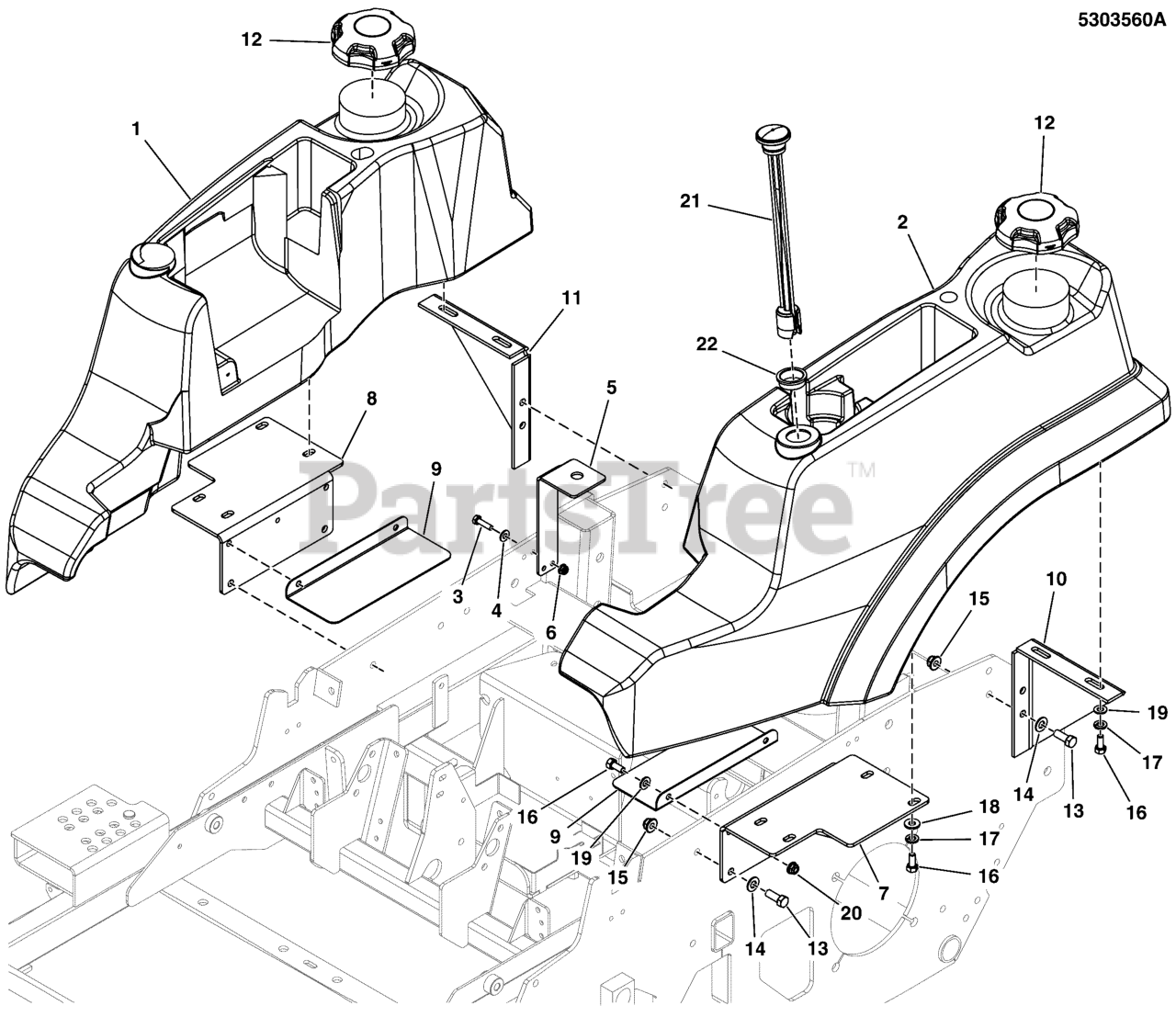

S 150XT (5901487) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki Fuel Tank & Mount Group - S/N: 2017612395 & Above Parts Diagram

S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki

Fuel Tank & Mount Group - S/N: 2017612395 & Above Parts Diagram

  • Title

1

Snapper Pro 5103952

TANK, FUEL, 5 GAL, SNP-PRO, RH, 2013
(Superseded to 5103952FS)

$462.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103953

TANK, FUEL, 5.75 GAL, SNP-PRO, LH, 2013
(Superseded to 5103953FS)

$509.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5410787A

PLATE, FUEL SWITCH - BLK

$

$

Currently unavailable

6

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

7

Snapper Pro 5411265D

WELD, FUEL TANK MOUNT, S150XT, LH - RED

$

$

Currently unavailable

8

Snapper Pro 5411770D

WELD, FUEL TANK MOUNT, S150XT, RH - RED

$

$

Currently unavailable

9

Snapper Pro 5411695A

GUARD, FAN - BLK

$10.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5411930A

MOUNT, REAR TANK, LH - BLK

$32.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5411929A

MOUNT, REAR TANK, RH - BLK
(Superseded to 5411929AAFS)

$30.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

14

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

17

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

19

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

20

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5022917X1

GROMMET, FUEL GAUGE (SV)
(Superseded to 5022917X1SM)

$6.99

$

In Stock, Qty 5

0
