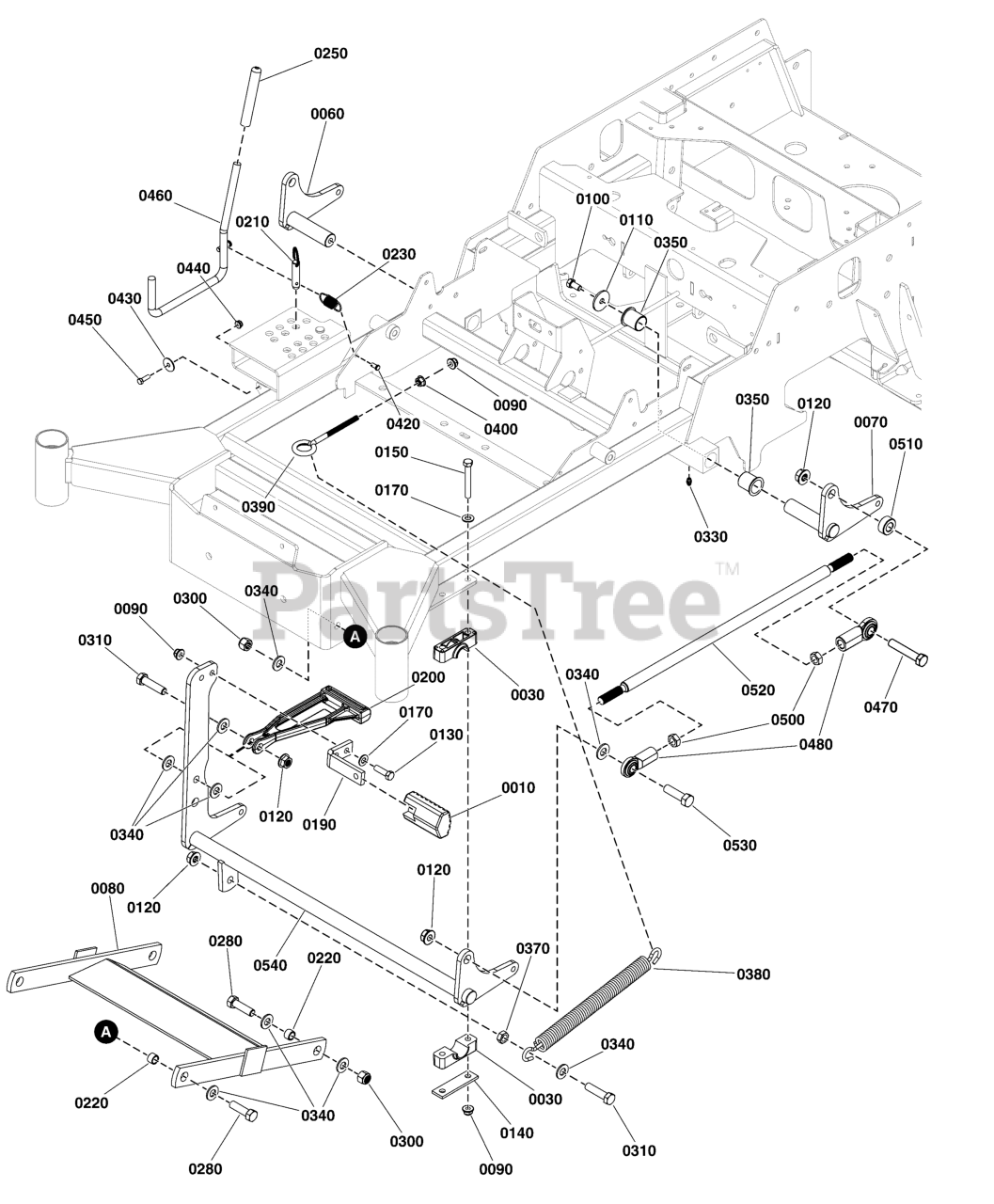

S 150XT (5901487) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki Deck Lift Group S/N: 2017954956 & Above Parts Diagram

S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki

Deck Lift Group S/N: 2017954956 & Above Parts Diagram

  • Title

0010

Snapper Pro 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

$67.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 5412008A

WELD, Deck Stabilizer - Blk

$80.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0130

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0140

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

0170

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0190

Snapper Pro 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5104133

LINK, DECK LIFT, CAST IRON
(Superseded to 5104133YP)

$35.99

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

0220

Snapper Pro 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

0230

Snapper Pro 5010213

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

0310

Snapper Pro 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

$4.49

$

In Stock, only 1 left!

0

0330

Snapper Pro 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0340

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

0350

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

0370

Snapper Pro 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

0380

Snapper Pro 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

0390

Snapper Pro 5021811

EYE BOLT, 3/8-16 X 8, 3THRD, 1EYE, CZ
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

0400

Snapper Pro 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

0420

Snapper Pro 5025212X4

PIN, CLEVIS, 1/4 X 1/2, PLATED
(Superseded to 5025212X4SM)

$3.99

$

Usually ships in 2-12 days

0

0430

Snapper Pro 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

0440

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0450

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0460

Snapper Pro 5410317A

WELD, Rod, Deck Lift - BLK
(Superseded to 5410317AAFS)

$32.99

$

Usually ships in 2-12 days

0

0470

Snapper Pro 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

0480

Snapper Pro 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 14

0

0500

Snapper Pro 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

0510

Snapper Pro 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

0520

Snapper Pro 5104054

ROD, DECK LIFT, 1/2-20 X 20.00, CZ
(Superseded to 5104054FS)

$26.99

$

Usually ships in 2-12 days

0

0530

Snapper Pro 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

0540

Snapper Pro 5410999D

WELD, DECK LIFT SHAFT, 150XT - RED
(Superseded to 5410999DFS)

$168.99

$

Usually ships in 2-12 days

0
