S 150XT (5901487) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki 52" Mower Deck Group - Pulleys, Belt, and Idler Arm S/N: 2017612395 to 4000805638 Parts Diagram

S150XT Series 52" Zero-Turn Mower, 24hp Kawasaki

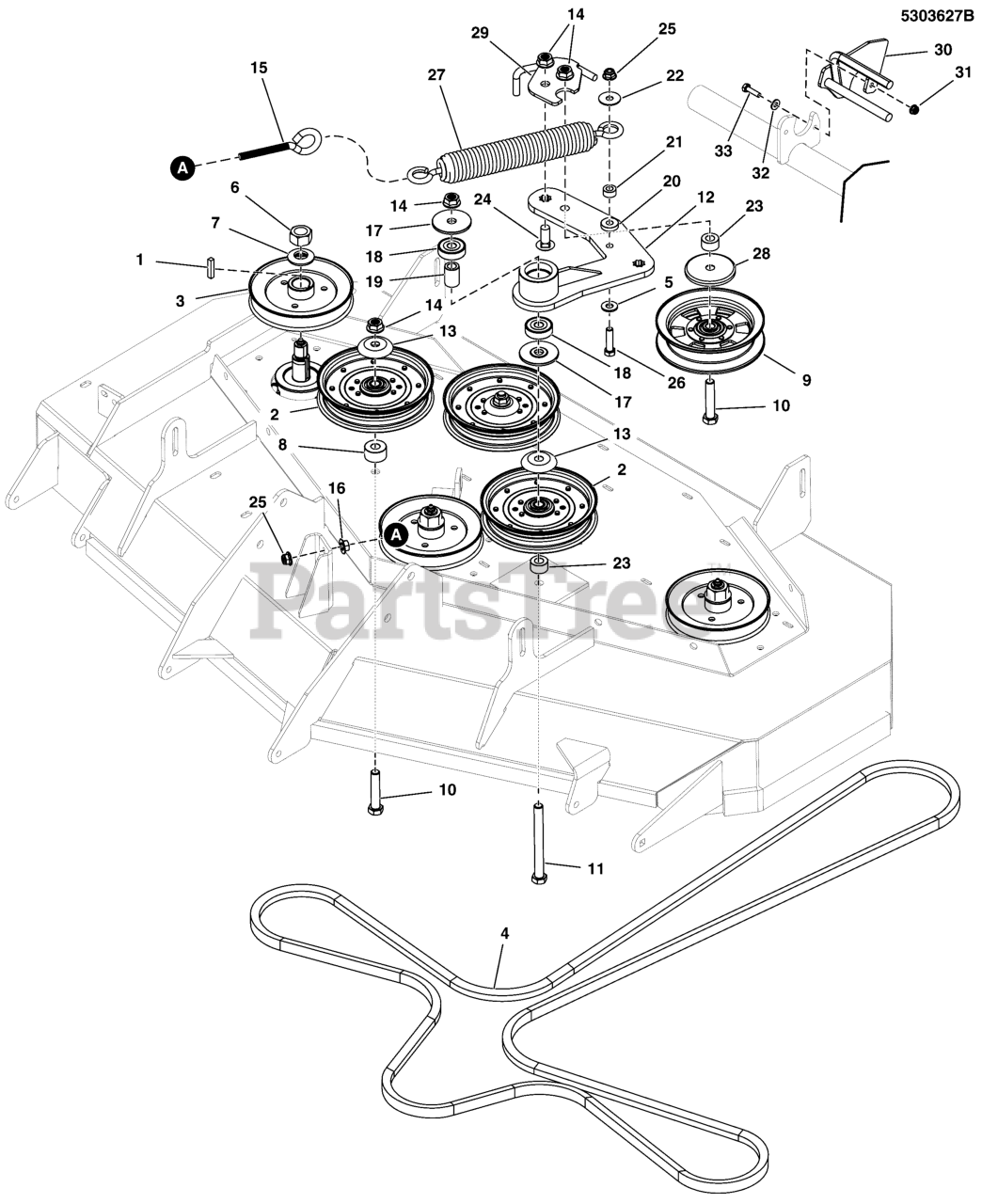

52" Mower Deck Group - Pulleys, Belt, and Idler Arm S/N: 2017612395 to 4000805638 Parts Diagram

  • Title

1

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

2

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

3

Snapper Pro 5101351

PULLEY, 5.926OB X .985ID, SINGLE B-SEC
(Superseded to 5101351YP)

$69.99

$

In Stock, Qty 9

0

4

Snapper Pro 5103872

BELT, 5V, 163.40"EL, LG ARAMID WRPD, RC
(Superseded to 5103675)

$148.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

6

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5047142

SPACER, .52 X 1.25 X .70, PM, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 11

0

9

Snapper Pro 5104716

PULLEY,IDLER,BACKSIDE,NOSEAM 6.25ODX.5ID
(Superseded to 5104716YP)

$59.99

$

In Stock, Qty 15

0

10

Snapper Pro 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

11

Snapper Pro 5025017X40

BOLT-1/2-13 X 5 GD5 CZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 2 left!

0

12

Snapper Pro 5415907AYP

IDLER, Arm

$165.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

14

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

16

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

17

Snapper Pro 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

In Stock, only 2 left!

0

18

Snapper Pro 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5104456

SPACER, .51 X .84 X 1.22, PM, CZ
(Superseded to 5104456YP)

$4.49

$

In Stock, only 2 left!

0

20

Snapper Pro 5044960

SPACER, .39 X 1.00 X .25, PM, CZ
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

21

Snapper Pro 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

23

Snapper Pro 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025324X10

BOLT, CARRIAGE 1/2-13 X 1-1/4 GD.5
(Superseded to 5025324X10YP)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

26

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

In Stock, Qty 5

0

28

Snapper Pro 5105145

SHIELD, BEARING, 1/2 ID X 2-7/8 OD, CZ
(Superseded to 5105145YP)

$4.49

$

In Stock, Qty 20+

0

29

Snapper Pro 5416230A

WELD, BELT GUIDE - BLK

$

$

Currently unavailable

30

Snapper Pro 5416182A

WELD, CLUTCH BELT GUIDE

$

$

Currently unavailable

31

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

32

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0
