S 150XT (5901483) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 26hp Briggs & Stratton 48" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

S150XT Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

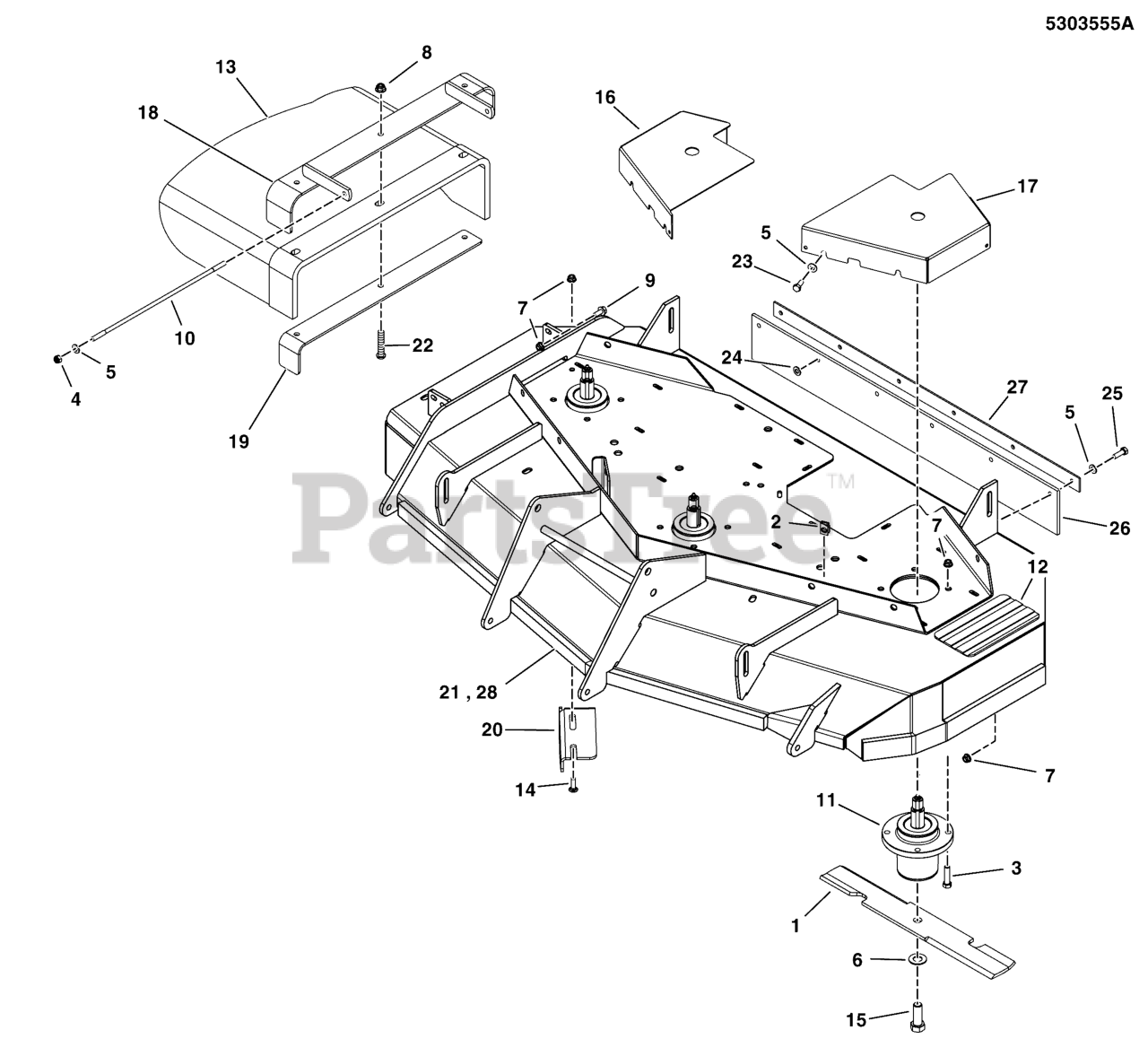

48" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5101986S

BLADES, SET OF THREE (3); 16.25 X.25 X 2.5, 1 X 3.5

$

$

Currently unavailable

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

10

Snapper Pro 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5413498

CHUTE, RUBBER DISCHARGE

Note: (5104441)

$165.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

15

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5415939D

PLATE, DECK GUARD, RH - RED

$

$

Currently unavailable

17

Snapper Pro 5415940D

PLATE, DECK GUARD, LH - RED

$

$

Currently unavailable

18

Snapper Pro 5413403A

WELD, MOUNT, DISCHARGE CHUTE - BLK

$54.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

$32.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600875

DECK SHELL W/ DECALS, 48, S150XT-DOM (5413100D)

Note: (S/N: 2017360078 & Below)

$

$

Currently unavailable

22

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

24

Snapper Pro 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

26

Snapper Pro 5102134

FLAP, RUBBER, 48"
(Superseded to 5102134FS)

$48.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5405520A

PLATE, SUPPORT, 48 - BLK
(Superseded to 5405520AFS)

$21.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5600936

DECK SHELL W/DECALS,48,S150XT,5414848D

Note: (S/N: 2017360079 & Above)

$

$

Currently unavailable
