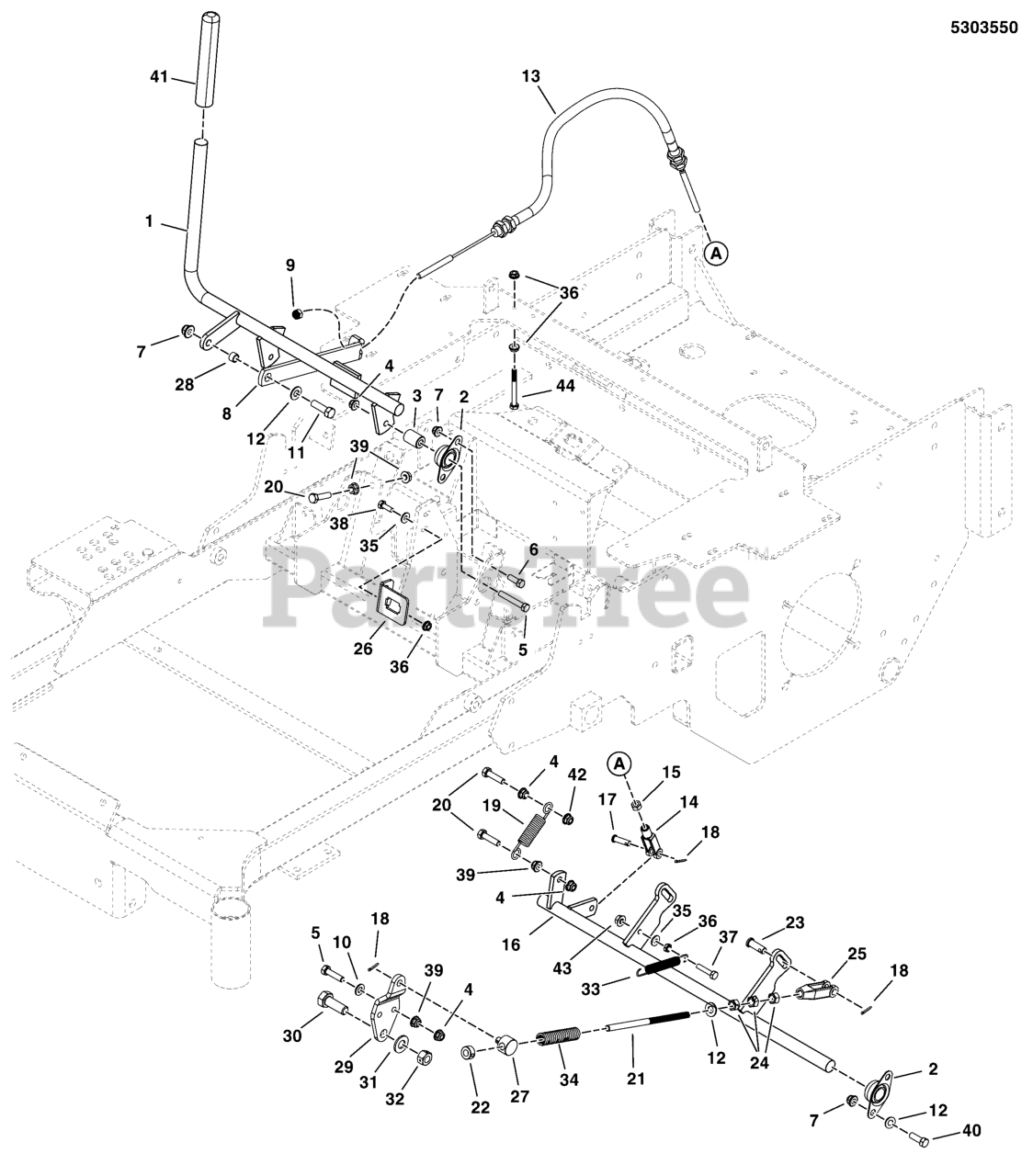

S 150XT (5901292) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 26hp Briggs & Stratton Parking Brake Group Parts Diagram

S150XT Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

Parking Brake Group Parts Diagram

  • Title

1

Snapper Pro 5411649A

WELD, BRAKE SHAFT - BLK

$112.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

3

Snapper Pro 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

4

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

6

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper Pro 5407401A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

9

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

10

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

12

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5100115

CABLE, PARKING BRAKE IS2000
(Superseded to 5100115SM)

$96.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5411950A

WELD, SHAFT, REAR BRAKE - BLK

$

$

Currently unavailable

17

Snapper Pro 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

19

Snapper Pro 5021242

SPRING, EXTENSION
(Superseded to 5021242SM)

$22.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5103039

ROD, BRAKE ADJUSTMENT, CZ
(Superseded to 5103039YP)

$13.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, PLATED
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5101800

CLEVIS, 3/8-24 RH, 3/8" PIN HOLE, CLR ZN
(Superseded to 5101800YP)

$10.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5407335A

BRACKET, SWITCH MOUNT - BLK
(Superseded to 5407335AYP)

$7.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5100985

ADJUSTER, BRAKE LINKAGE
(Superseded to 5100985YP)

$23.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5102289

SPACER, .38 X .50 X .31, CZ
(Superseded to 5102289YP)

$6.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5407361A

PLATE, BRAKE ARM EXTENSION - BLK

$

$

Currently unavailable

30

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

32

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

33

Snapper Pro 5102692

SPRING, EXTENTION, .50 OD X 4.12 FL
(Superseded to 5102692YP)

$19.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5023242

SPRING-COMP, .496ID X 3.00LG X .112WR
(Superseded to 5023242SM)

$6.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, only 4 left!

0

38

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

39

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

40

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

41

Snapper Pro 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

$7.49

$

In Stock, only 1 left!

0

42

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

44

Snapper Pro 5025011X30

BOLT, 5/16-18 X 3-3/4 GD5
(Superseded to 5025011X30SM)

$6.49

$

Usually ships in 2-12 days

0
