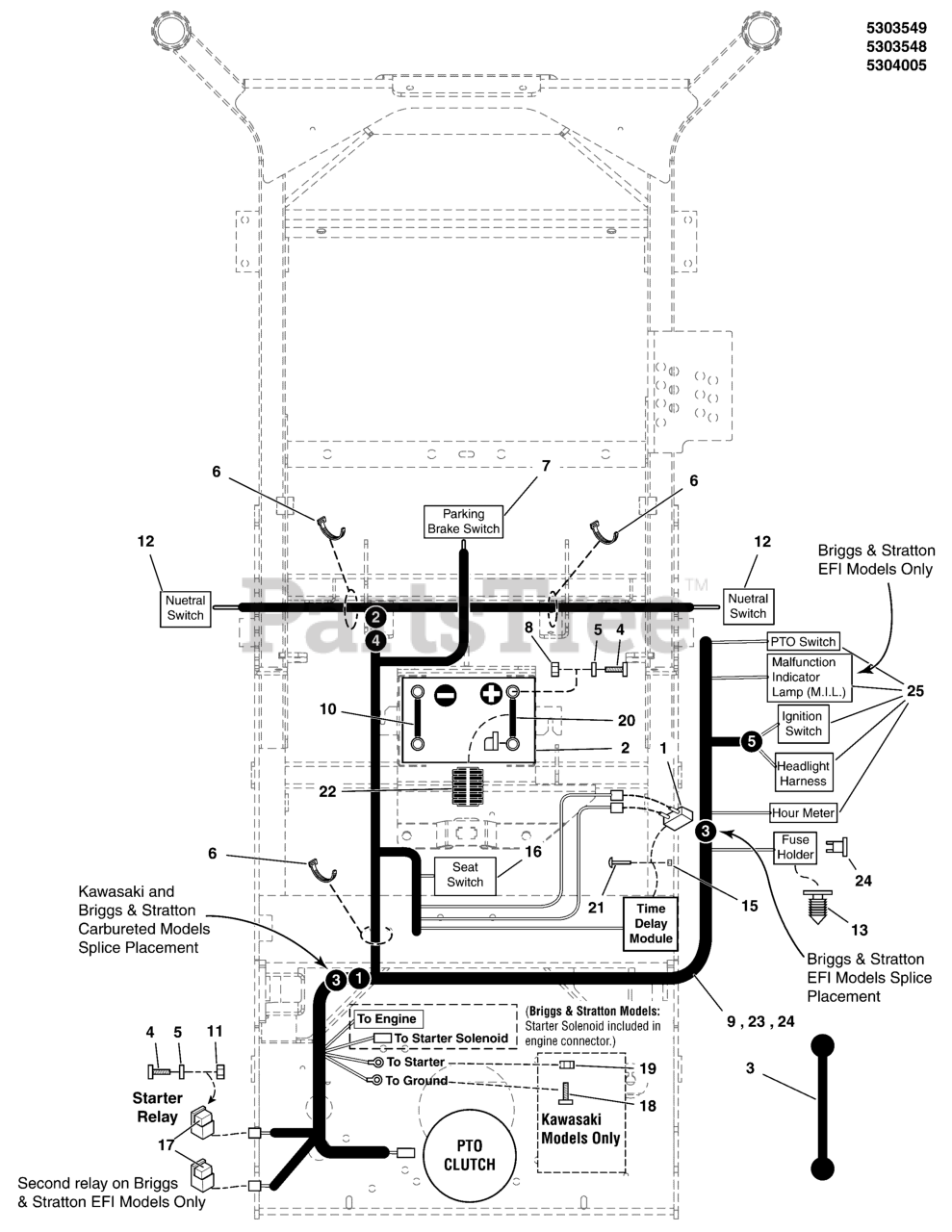

S 150XT (5901291) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Electrical Group Parts Diagram

S150XT Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

Electrical Group Parts Diagram

  • Title
1

Snapper Pro 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 20+

0

2

BATTERY, 11U1L, 350 CCA

$

$

Not available

3

Snapper Pro 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

7

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5411552

WIRE HARNESS, S150XT, KAWI FX

Note: (Kawasaki Engine Equipped Models Only)

$640.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101396

BATTERY CABLE, NEG, 30, 1/4-5/16
(Superseded to 5101396YP)

$35.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5101280

SWITCH, LOW PROF, NC/NO
(Superseded to 5101280YP)

$30.99

$

In Stock, Qty 9

0

13

Snapper Pro 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

Note: (Kawasaki and Briggs & Stratton Carbureted Models Only)

$114.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

Note: (Qty: 2 - EFI engines)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5101589

SWITCH, PLUNGER, NO, SINGLE POLE SNAP-IN
(Superseded to 84006599)

$12.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

Note: (Qty: 2 - EFI engines)

$24.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

Note: (Kawasaki Engine Equipped Models Only)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

Note: (Kawasaki Engine Equipped Models Only)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5044876

BATTERY CABLE, POS, 35, 1/4-5/16
(Superseded to 5044876SM)

$29.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

Note: (Qty: 2 - EFI engines)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5050927X30

WIRE LOOM, 3/8 ID X 30 IN

$

$

Currently unavailable

23

Snapper Pro 5411553

WIRE HARNESS, S150XT, B&S-VANG

Note: (Briggs & Stratton Carbureted Engine Equipped Models Only)

$640.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5413200

WIRE HARNESS, S150XT, B&S-VANG EFI

Note: (Briggs & Stratton EFI Engine Equipped Models Only)

$758.99

$

Usually ships in 2-12 days

0
