S 150XT (5901208) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 24hp Kawasaki Fuel Tank & Mount Group (Double Tank) Parts Diagram

S150XT Series 48" Zero-Turn Mower, 24hp Kawasaki

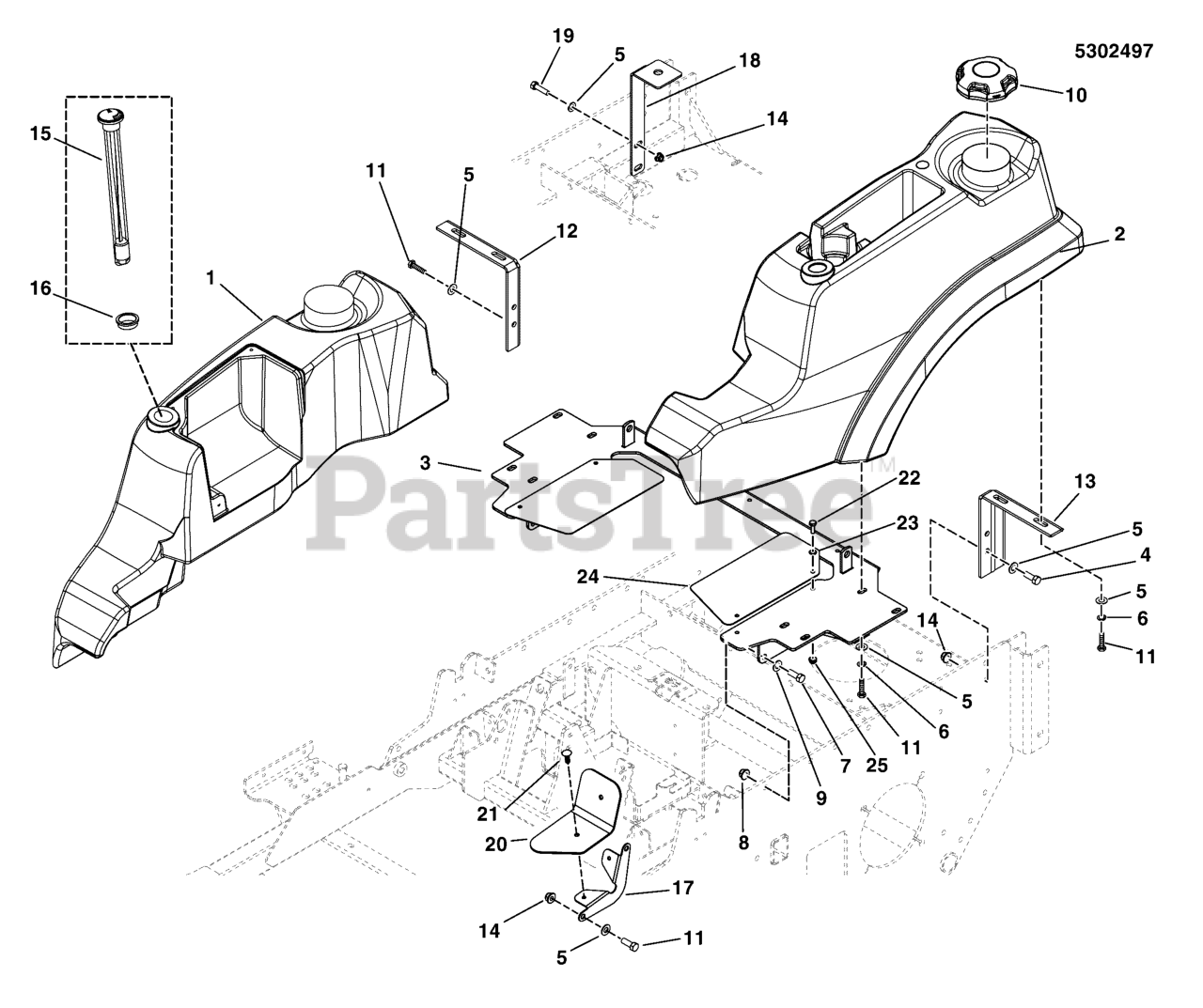

Fuel Tank & Mount Group (Double Tank) Parts Diagram

  • Title

1

Snapper Pro 5103952

TANK, FUEL, SNAPPER PRO - RH
(Superseded to 5103952FS)

$462.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103953

TANK, FUEL, SNAPPER PRO - LH
(Superseded to 5103953FS)

$509.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5407187D

WELD, TANK MOUNT - RED

$

$

Currently unavailable

4

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5103005

CAP, GASOLINE
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5411084A

USE 5411929A - MOUNT, TANK,REAR,RH - BLK

$

$

Currently unavailable

13

Snapper Pro 5411083A

USE 5411930A - MOUNT, TANK,REAR,LH - BLK
(Superseded to 5411930A)

$32.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5022917X1

GROMMET, FUEL GAUGE (SV)
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 3 left!

0

17

Snapper Pro 5408105A

MOUNT, GUARD, MOTION CTRL - BLK

$12.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5401108A

BRACKET, FUEL VALVE, IS3000 - BLK
(Superseded to 5401108AFS)

Note: (S/N: 2014765245 & Below)(For higher serial number machines see "EVAP Canister Group")

$11.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

20

Snapper Pro 5103053

FLAP, RUBBER, MOTION CONTROL, S150XT

$

$

Currently unavailable

21

Snapper Pro 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

23

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5407404D

PLATE, GUARD, SEAT - RED

$

$

Currently unavailable

25

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0
