S 150XT (5900573) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Fuel Tank & Mount Group (Single Tank) Parts Diagram

S150XT Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

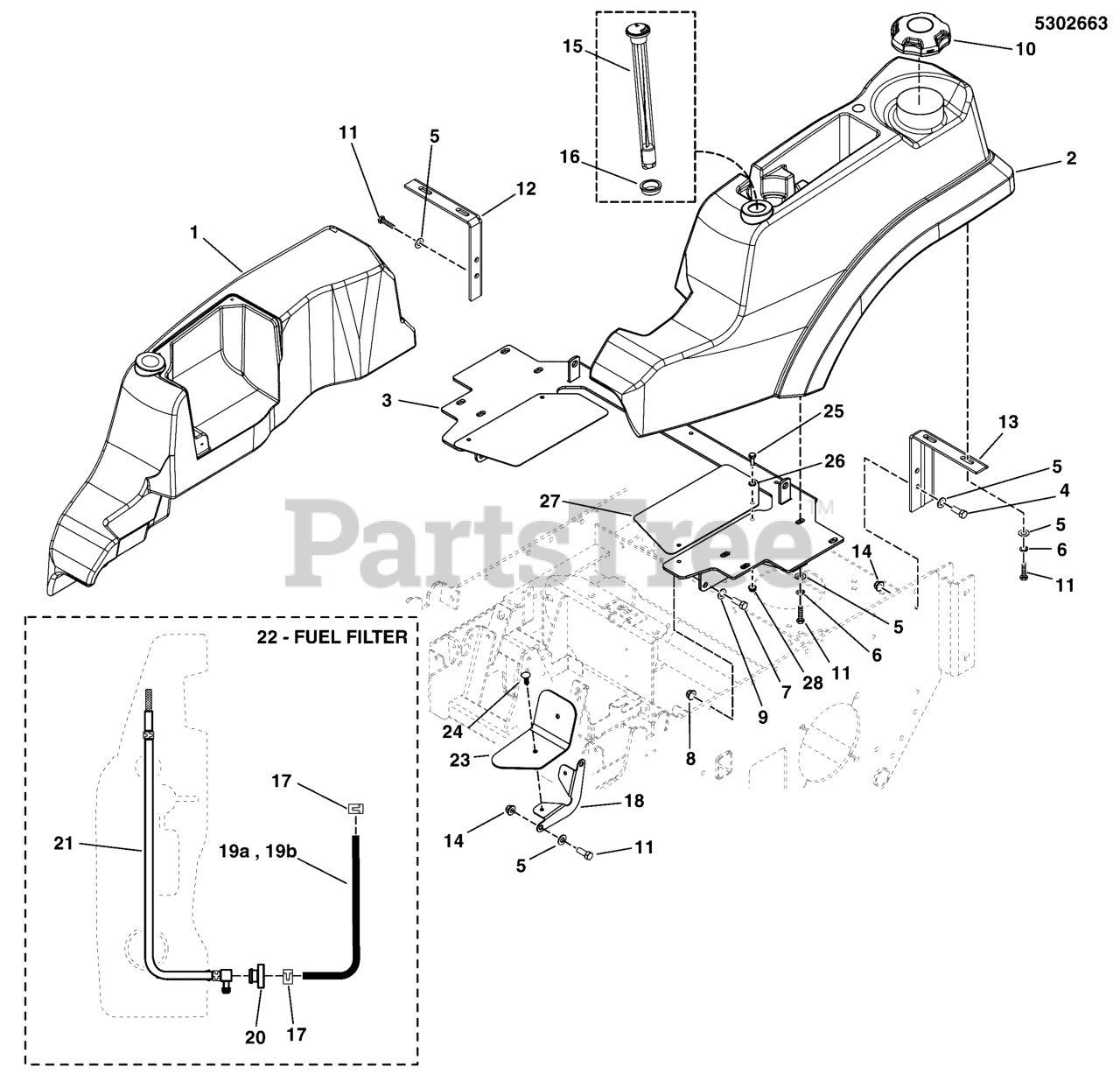

Fuel Tank & Mount Group (Single Tank) Parts Diagram

  • Title

1

Snapper Pro 5103956

TANK, FENDER, SNAPPER PRO - RH
(Superseded to 5103956FS)

$228.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103953

TANK, FUEL, SNAPPER PRO - LH
(Superseded to 5103953FS)

$509.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5407187D

WELD, TANK MOUNT - RED

$

$

Currently unavailable

4

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5103005

CAP, GASOLINE
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5411084A

USE 5411929A - MOUNT, TANK,REAR,RH - BLK

$

$

Currently unavailable

13

Snapper Pro 5411083A

USE 5411930A - MOUNT, TANK,REAR,LH - BLK
(Superseded to 5411930A)

$32.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5022917X1

GROMMET, FUEL GAUGE (SV)
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 3 left!

0

17

Snapper Pro 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

18

Snapper Pro 5408105A

MOUNT, GUARD, MOTION CTRL - BLK

$12.99

$

Usually ships in 2-12 days

0

19a

Snapper Pro 5050831X8

HOSE, 1/4" FUEL, 8.00"
(Superseded to 5050831X8YP)

Note: (Kawasaki Models)

$5.99

$

Usually ships in 2-12 days

0

19b

Snapper Pro 5050831X27

HOSE, 1/4" FUEL, 27.00"

Note: (Briggs & Stratton Models)

$

$

Not available

20

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

21

Snapper Pro 5101144

PICK UP TUBE ASSEMBLY, FUEL LINE (SV)

$33.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

23

Snapper Pro 5103053

FLAP, RUBBER, MOTION CONTROL, S150XT

$

$

Currently unavailable

24

Snapper Pro 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

26

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5407404D

PLATE, GUARD, SEAT - RED

$

$

Currently unavailable

28

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0
