S 150XT (5900514) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 20hp Kawasaki Seat & Kick Plate Group Parts Diagram

S150XT Series 48" Zero-Turn Mower, 20hp Kawasaki

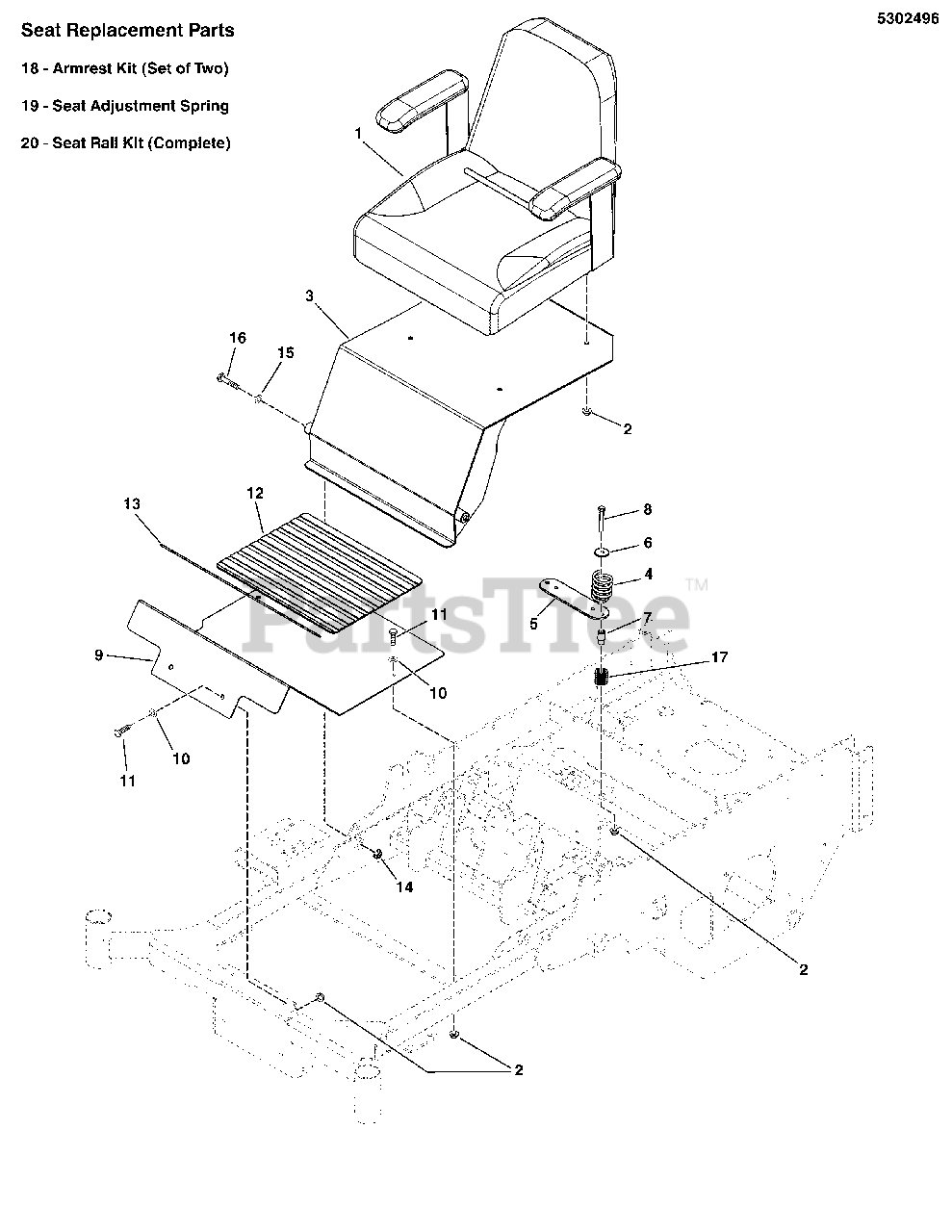

Seat & Kick Plate Group Parts Diagram

  • Title

1

Snapper Pro 5061599

SEAT, XB-180, NO LOGO, BLACK

$

$

Not available

2

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5600767

ASSM, SEAT PLATE W/ DECALS, S150XT OLD

Note: (S/N: 2016600459 & BELOW) (5407355D)

$343.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5402732D

PLATE, SEAT SWITCH - RED
(Superseded to 5402732DYP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

7

Snapper Pro 5102228

SPACER, .33 X .66 X 1.31 SHLDR, CZ
(Superseded to 5102228YP)

$14.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

9

Snapper Pro 5407403D

PLATE, FLOOR PAN - RED
(Superseded to 5407403DYP)

$127.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

12

Snapper Pro 5101013

SAFETY WALK, 11.50 X 15.00
(Superseded to 5101013SM)

$30.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5101011

SAFETY WALK, 8.00 X 15.00
(Superseded to 5101011SM)

$19.99

$

In Stock, only 1 left!

0

14

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

17

Snapper Pro 5103070

SPRING COMP .76IDX1.3LGX.105WIRE BLACK
(Superseded to 5103070YP)

$9.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 1686907

ARM REST KIT (SET OF TWO) (SV)
(Superseded to 1686907SM)

$139.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5100652

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$

$

Currently unavailable

20

Snapper Pro 5061599X1

KIT, SEAT RAILS (COMPLETE)(SV)
(Superseded to 5061599X1SM)

$192.99

$

Usually ships in 2-12 days

0
