S 150XT (5900508) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 22hp Kawasaki Wheel & Tire Group Parts Diagram

S150XT Series 52" Zero-Turn Mower, 22hp Kawasaki

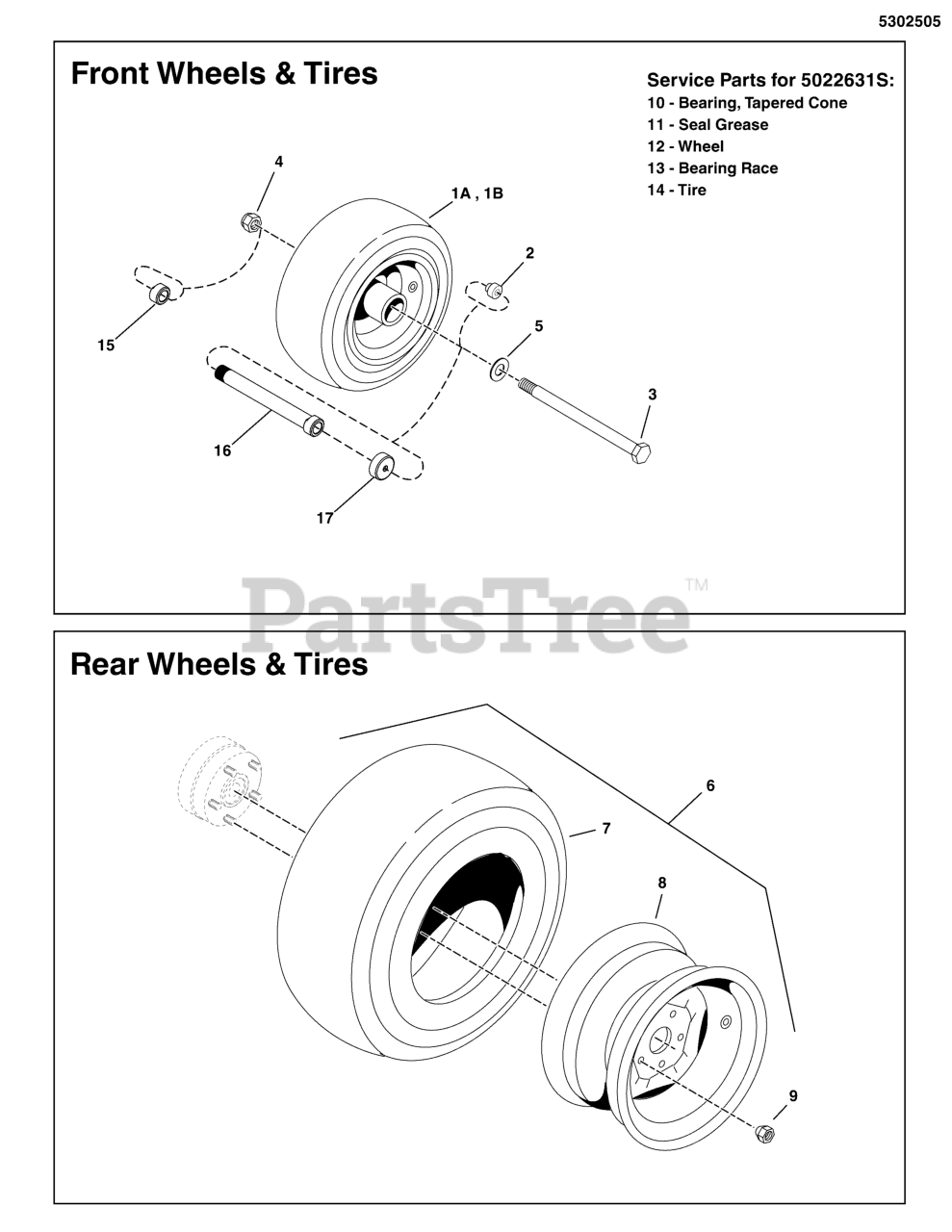

Wheel & Tire Group Parts Diagram

  • Title

1a

Snapper Pro 5023280

TIRE ASSM, 13X5.00-6 FLAT FREE
(Superseded to 5023280SM)

$217.99

$

In Stock, only 2 left!

0

1b

Snapper Pro 5022631S

TIRE, CASTER, 13 X 5.00-6
(Superseded to 5022631SSM)

$168.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (S/N: 2016230844 & Below)(2 per tire)

$10.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5025017X64

BOLT, 1/2-13 x 8"
(Superseded to 5025017X64SM)

$10.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

6

Snapper Pro 5103041

TIRE ASSM, 22X11.00-10, .75 NEG

$

$

Currently unavailable

7

Snapper Pro 5023369X2

TIRE, 22 X 11.00-10, 4 PLY

$

$

Currently unavailable

8

Snapper Pro 5102771X1

WHEEL, 10 X 7, .75NEG OFFSET
(Superseded to 5102771X1YP)

$110.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (SV PART FOR 5022631S)

$12.99

$

In Stock, Qty 20+

0

11

Snapper Pro 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (SV PART FOR 5022631S)

$9.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5022631SX1

WHEEL ASSY, 13 X 5 X 6, SILVER
(Superseded to 5022631SX1SM)

Note: (SV PART FOR 5022631S)

$102.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (SV PART FOR 5022631S)

$10.99

$

In Stock, Qty 20+

0

14

Snapper Pro 5022029X1

TIRE ONLY

Note: (SV PART FOR 5022631S)

$112.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

Note: (S/N: 2016230845 & Above)(2 per tire)

$16.99

$

In Stock, Qty 14

0

16

Snapper Pro 5103648

BEARING ADJUSTER, SPACER, 6.062 LG
(Superseded to 5103648FS)

Note: (S/N: 2016230845 & Above)(1 per tire)

$21.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5103594

DEBRIS COVER, CASTER WHEELS
(Superseded to 5103594YP)

Note: (S/N: 2016230845 & Above)(2 per tire)

$4.49

$

In Stock, Qty 15

0
