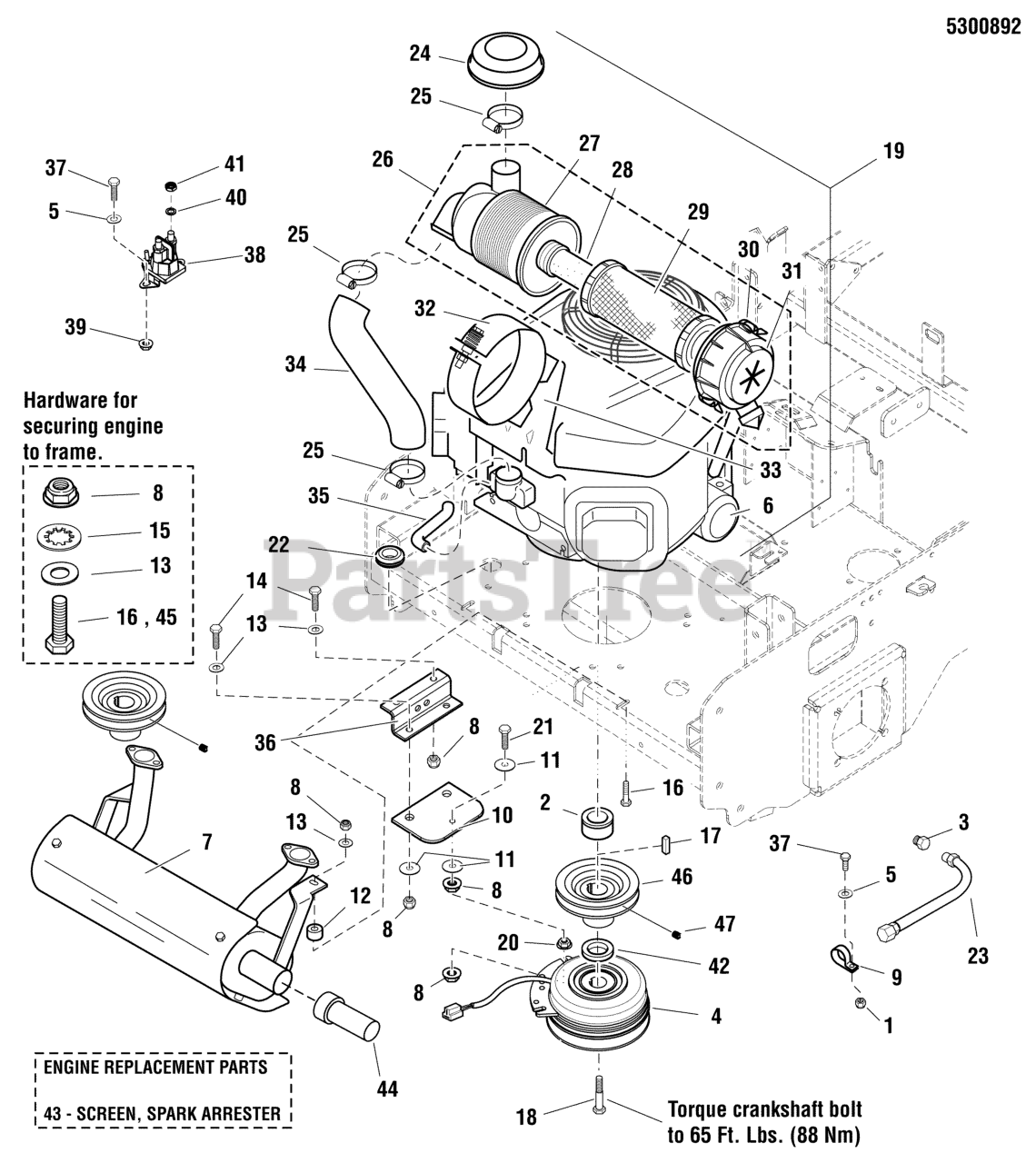

S 150X (5900909) - Snapper Pro S150X Series 52" Zero-Turn Mower, 25hp Kawasaki Engine & PTO Group - Kawasaki Models Parts Diagram

S150X Series 52" Zero-Turn Mower, 25hp Kawasaki

Engine & PTO Group - Kawasaki Models Parts Diagram

  • Title

1

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

2

Snapper Pro 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022234

ADAPTER, OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021334X1

OIL FILTER (49065-2078) (SV)
(Superseded to 5213341SM)

Note: (21 & 25 HP MODELS ONLY)

$

$

Not available

6

Snapper Pro 5102278X1

OIL FILTER

Note: (20, 22 & 26 HP MODELS ONLY)

$

$

Not available

7

Snapper Pro 5100975

MUFFLER, 21HP-25HP KAWASAKI ENGINES

Note: (21 & 25 HP MODELS ONLY)

$

$

Currently unavailable

7

Snapper Pro 5102109

MUFFLER, (16-20HP), KAWASAKI S50X
(Superseded to 5102109FS)

Note: (20 HP MODELS ONLY)

$302.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5104326

MUFFLER, KAWI, HORIZONTAL, 5" CAN
(Superseded to 5104326YP)

Note: (22 & 26 HP MODELS ONLY)

$207.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Snapper Pro 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

15

Snapper Pro 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5102864

BOLT, CRANKSHAFT, 7/16 X 2-1/2
(Superseded to 5102864YP)

Note: (Torque to 65 fl lbs (88 Nm)

$5.49

$

In Stock, only 1 left!

0

19

* ENGINE, 21HP KAWASAKI, (Mod FH641V Spec. ES25-R)

Note: (21 HP MODELS ONLY)

$

$

Not available

19

* ENGINE, 25HP KAWASAKI, (Mod. FH721V Spec. ES27-R)

Note: (25 HP MODELS ONLY)

$

$

Not available

19

* ENGINE, 20HP, KAWASAKI, FX600V

Note: (20 HP MODELS ONLY)

$

$

Not available

19

* ENGINE, 22HP KAWASAKI, FX651V

Note: (22 HP MODELS ONLY)

$

$

Not available

19

* ENGINE, 26HP KAWASAKI, FX730V

Note: (26HP MODELS ONLY)

$

$

Not available

20

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

21

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5023143

RAIN COVER (SV)

$

$

Not available

25

Snapper Pro 5023146

CLAMP (SV)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5023138

AIR FILTER ASSEMBLY (SV)

$

$

Not available

27

Snapper Pro 5023139

CASE, AIR FILTER (SV)
(Superseded to 5023139SM)

$

$

Not available

28

Snapper Pro 5023140

AIR FILTER, SECONDARY (SV)
(Superseded to 5023140SM)

$

$

Not available

29

Snapper Pro 5023141

AIR FILTER, PRIMARY (SV)
(Superseded to 5023141SM)

$

$

Not available

30

Snapper Pro 5023147

CLAMP, CAP (SV)

$

$

Not available

31

Snapper Pro 5023144

CAP, FILTER CASE (SV)

$

$

Not available

32

Snapper Pro 5023145

CASE, BRACKET, COMPLETE (SV)

$

$

Not available

33

Snapper Pro 5023142

BRACKET PLATE (SV)

$

$

Not available

34

Snapper Pro 5023149

AIR INLET TUBE (SV)

$

$

Not available

35

Snapper Pro 5023148

BREATHER TUBE (SV)

$

$

Not available

36

Snapper Pro 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

38

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 5023217

WASHER, 5/16 LIGHT LOCK (SV)
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5023216

NUT, 5/16-24 JAM (SV)
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5100062

SPACER, 1.13 X 1.75 X .32
(Superseded to 5100062YP)

Note: (21HP & 25HP MODELS ONLY)

$16.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5048135

SPACER, 1.13 X 1.75 X .62
(Superseded to 5048135FS)

Note: (20HP & 26HP MODELS ONLY)

$17.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

Note: (22 HP MODELS ONLY)

$19.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

$84.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

Note: (20 HP MODELS ONLY)

$14.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5025532

BOLT,HEX FLG,SER GD5 3/8-16X1-1/4PACH CZ
(Superseded to 84003591)

Note: (20 HP MODELS ONLY)

$3.49

$

In Stock, only 4 left!

0

46

Snapper Pro 5101022

PULLEY, 5.15 OD X 1-1/8 BORE B-SECT

$32.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0
