S 150X (5900845) - Snapper Pro S150X Series 52" Zero-Turn Mower, 27hp Kohler Pump Drive Group Parts Diagram

S150X Series 52" Zero-Turn Mower, 27hp Kohler

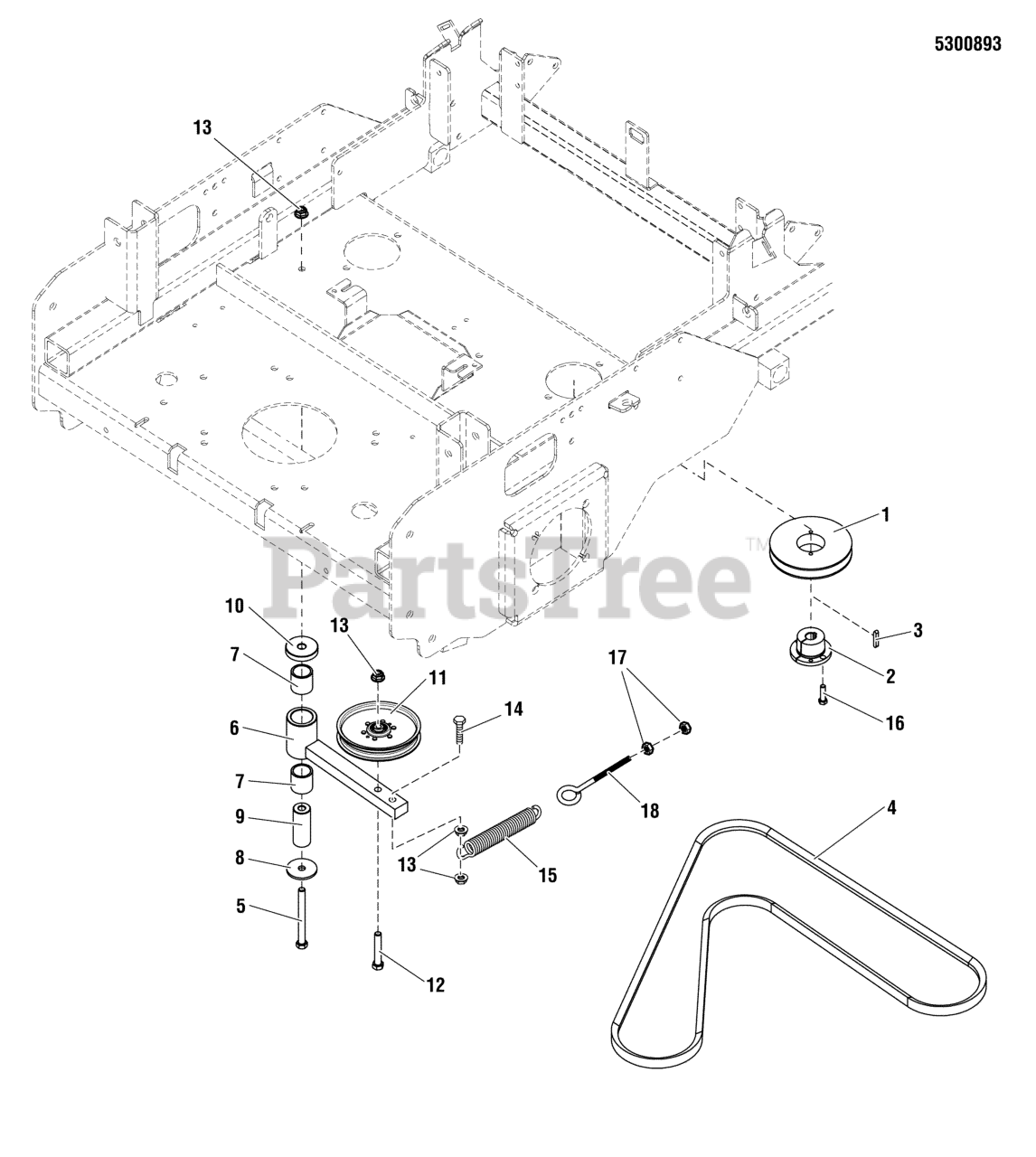

Pump Drive Group Parts Diagram

  • Title
1

Snapper Pro 5101023

PULLEY, SPLIT STEEL 5.632 OVER BALL

$38.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5022587

BUSHING, TAPERED HUB
(Superseded to 5022587SM)

$27.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5023254

KEY, 5MM SQ. W/ RADIUS
(Superseded to 5023254SM)

$4.49

$

In Stock, Qty 8

0

4

Snapper Pro 5100923

BELT, #7-9502, B-SECT - EL 67.8, HYDRO

$60.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

6

Snapper Pro 5046430A

WELD, ARM, PUMP DRIVE IDLER - BLK
(Superseded to 5046430AYP)

$75.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

$12.99

$

In Stock, only 2 left!

0

8

Snapper Pro 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 2 left!

0

9

Snapper Pro 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5045475

SPACER, .45 X 1.88 X .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5101193

PULLEY, IDLER
(Superseded to 5101193YP)

$65.99

$

In Stock, only 3 left!

0

12

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

15

Snapper Pro 5022847

SPRING, EXTENSION, SWIVEL END
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 8

0

16

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0
