S 150X (5900845) - Snapper Pro S150X Series 52" Zero-Turn Mower, 27hp Kohler 48" & 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

S150X Series 52" Zero-Turn Mower, 27hp Kohler

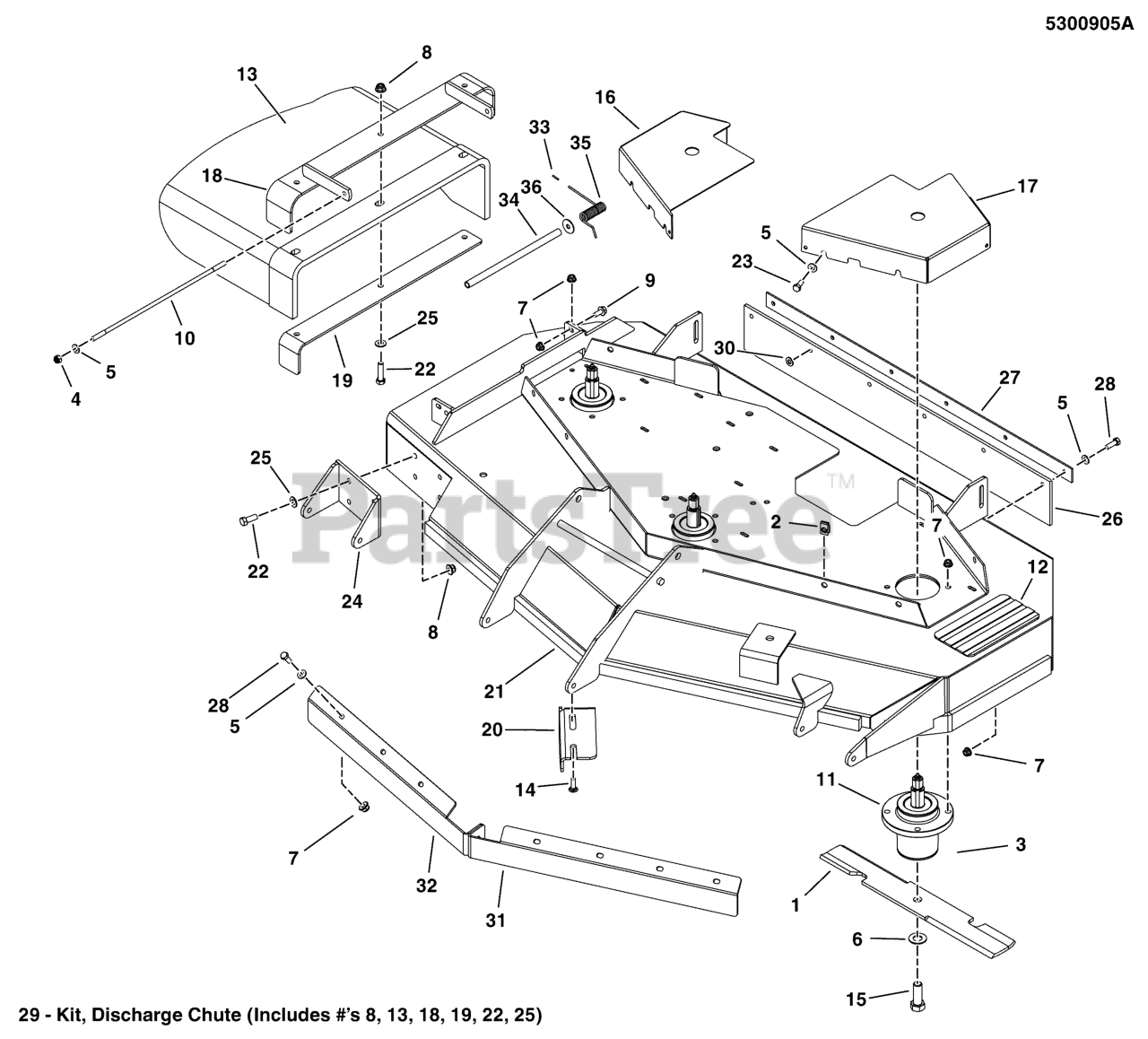

48" & 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

Note: (52" Models)

$

$

Currently unavailable

1

Snapper Pro 5101986S

BLADES, SET OF THREE (3); 16.25 X.25 X 2.5, 1 X 3.5

Note: (48" Models)

$

$

Currently unavailable

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

10

Snapper Pro 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

Note: (52" Models)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

Note: (48" Models)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

Note: (Nut and Washer sold seperately)

$231.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5402404

CHUTE, DISCHARGE, BEND RUBBER, 44/48/52 (5100842)
(Superseded to 5402404FS)

Note: (48" Models)

$148.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5402403

CHUTE, DISCHARGE, RUBBER, 61/72, BENT
(Superseded to 5402403SM)

Note: (52" Models)

$186.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

15

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5405037D

GUARD, 52" DECK - RH - RED

Note: (52" Models)

$43.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5049881D

GUARD, 48 DECK - RH -RED

Note: (48" Models)

$30.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5061811D

GUARD, 52" DECK - LH - RED

Note: (52" Models)

$

$

Currently unavailable

17

Snapper Pro 5049882D

GUARD, 48 DECK - LH -RED

Note: (48" Models)

$31.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5061293D

WELD, FRAME, CHUTE, 61 / 72 - RED
(Superseded to 5061293DYP)

Note: (52" Models)

$67.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5407842A

WELD, FRAME, CHUTE, 48/52 - BLK
(Superseded to 5413404AAFS)

Note: (48" Models)

$50.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5402360A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5402360AYP)

Note: (52" Models)

$43.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

Note: (48" Models)

$35.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

Note: (48" Models)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5405557A

PLATE, DEFLECTOR, 52 DECK - BLK
(Superseded to 5405557AAFS)

Note: (52" Models)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600549

DECK SHELL W/ DECALS, 48 - S150X

Note: (48" Models)

$1709.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600524

DECK SHELL W/ DECALS, 52 - S150X

Note: (52" Models)

$1880.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600382

DECK SHELL W/ DECALS, 52 - S150XCE

Note: (52" Export Models)

$

$

Currently unavailable

22

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

23

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

24

Snapper Pro 5408810D

PLATE, BRACKET, ANTI SCALP, RH - 61 -RED
(Superseded to 5408810DYP)

$41.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102134

FLAP, STRIPER, 48 DECK
(Superseded to 5102134FS)

Note: (48" Models)

$48.99

$

In Stock, only 1 left!

0

26

Snapper Pro 5102015

FLAP, STRIPER, 61" DECK, IS3100, S200X
(Superseded to 5102015YP)

Note: (52" Models)

$62.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5405520A

PLATE, SUPPORT, 48 - BLK
(Superseded to 5405520AFS)

Note: (48" Models)

$21.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5405238A

PLATE, SUPPORT - BLKV
(Superseded to 5405238AYP)

Note: (52" Models)

$30.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

29

Snapper Pro 5600131

KIT, DISCHARGE CHUTE, 61/72, SNP PRO (SV)

Note: (52" Models)

$

$

Not available

29

Snapper Pro 5600515

KIT, DISCHARGE CHUTE

Note: (48" Models)

$

$

Currently unavailable

30

Snapper Pro 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5406204D

BAFFLE, FRONT DISCHARGE, LH,S150XCE, RED

Note: (52" Export Models)

$

$

Currently unavailable

32

Snapper Pro 5406205D

BAFFLE, FRONT DISCHARGE, RH,S150XCE, RED

Note: (52" Export Models)

$

$

Currently unavailable

33

Snapper Pro 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

Note: (52" Export Models)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5061598

SPACER, TORSION SPRING, 9.63 LG

Note: (52" Export Models)

$

$

Not available

35

Snapper Pro 5023385

SPRING, TORSION
(Superseded to 5023385SM)

Note: (52" Export Models)

$8.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

Note: (52" Export Models)

$3.99

$

In Stock, only 1 left!

0
