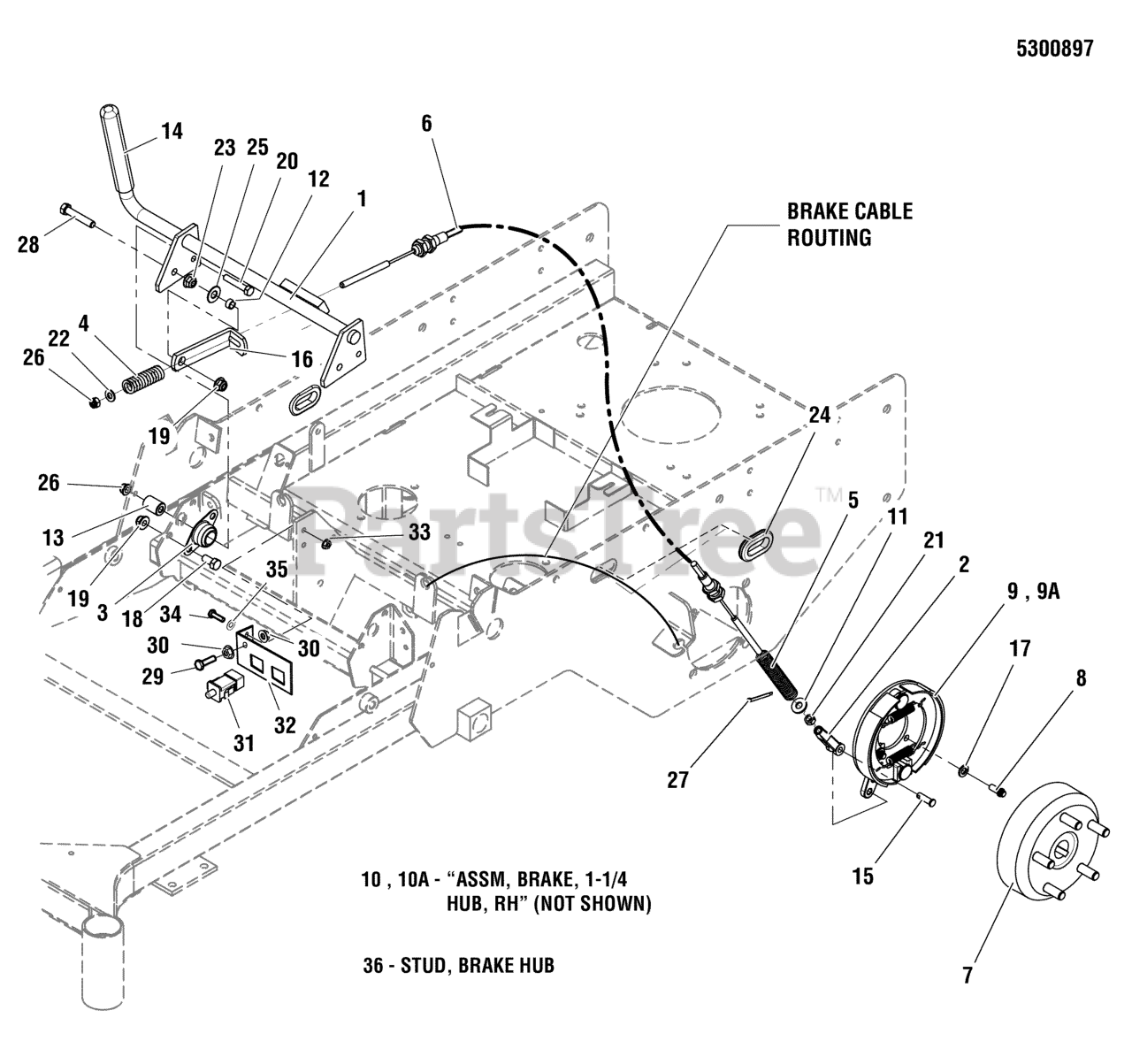

S 150X (5900665) - Snapper Pro S150X Series 52" Zero-Turn Mower, 25hp Kawasaki Parking Brake Group Parts Diagram

S150X Series 52" Zero-Turn Mower, 25hp Kawasaki

Parking Brake Group Parts Diagram

  • Title

1

Snapper Pro 5402928D

WELD, BRAKE SHAFT, SNP 2552 - RED

$79.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5020979

CLEVIS, 5/16-24, PLASTIC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

4

Snapper Pro 5022361

SPRING, BRAKE
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021494

SPRING, COMPRESSION, 5-1/2
(Superseded to 5021494SM)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5023324

CABLE, PARKING BRAKE
(Superseded to 5023324SM)

$81.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5102896

BRAKE DRUM, 6", 5 BOLT, KNOTT
(Superseded to 5102896YP)

$225.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5023490

BOLT, 5/16-18 X 3/4 12PT FLANGE - PATCH
(Superseded to 5023490SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5023500

ASSM, BRAKE, 1-1/4 HUB, LH
(Superseded to 5023500SM)

Note: (S/N: 2015208611 & Below)

$271.99

$

Usually ships in 2-12 days

0

9A

Snapper Pro 5102897

BRAKE SHOE ASM, LH, KNOTT
(Superseded to 5102897YP)

Note: (S/N: 2015208612 & Above)

$165.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5023501

ASSM, BRAKE, 1-1/4 HUB, RH

Note: (Not Shown - S/N: 2015208611 & Below)

$253.99

$

Usually ships in 2-12 days

0

10A

Snapper Pro 5102898

BRAKE SHOE ASM, RH, KNOTT
(Superseded to 5102898YP)

Note: (Not Shown - S/N: 2015208612 & Above)

$171.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

14

Snapper Pro 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

$7.49

$

In Stock, only 1 left!

0

15

Snapper Pro 5025213X8

PIN, CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5047084A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

17

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

20

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

21

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

22

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

24

Snapper Pro 5021397

GROMMET, 1-1/4
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

28

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

31

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

32

Snapper Pro 5403278D

BRACKET, SWITCH MOUNT

$8.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

35

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5023368X1

STUD, BRAKE HUB (SV)

$3.49

$

Usually ships in 2-12 days

0
