S 125XT (5901787) - Snapper Pro S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton Rear Bumper and ROPS Group - Models with Rigid Roll Bars Parts Diagram

S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

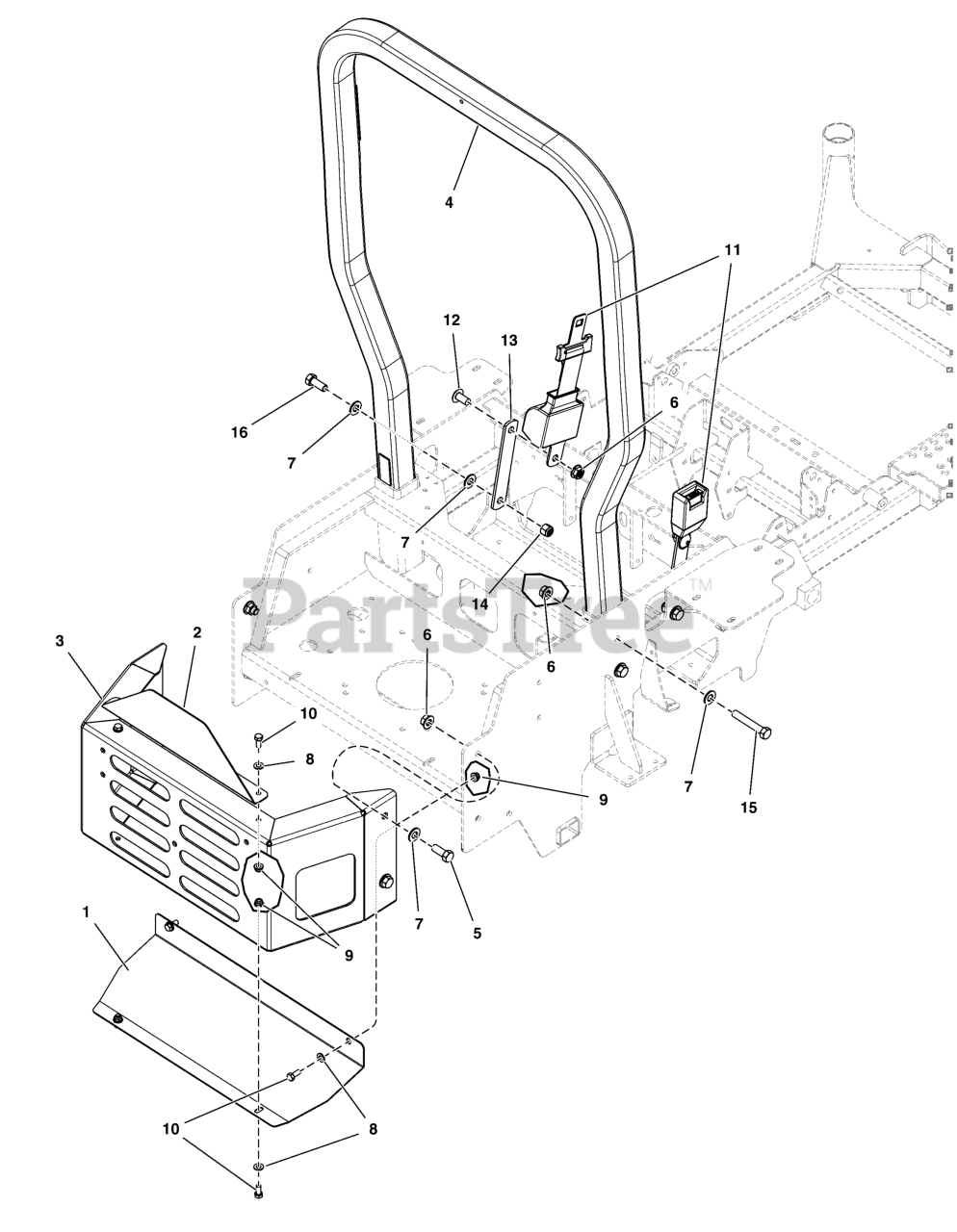

Rear Bumper and ROPS Group - Models with Rigid Roll Bars Parts Diagram

  • Title
1

Snapper Pro 5410800A

PLATE, HEAT SHIELD, S125XT - BLACK

$45.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5410799D

PLATE, CARB PROTECTOR - RED
(Superseded to 5410799DYP)

$32.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5410802D

WELD, BUMPER, S125XT - RED
(Superseded to 5410802DFS)

$225.99

$

Usually ships in 2-12 days

0

4

ROLL BAR

Note: (Refer to Note: *)

$

$

Not available

5

Snapper Pro 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

8

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper Pro 5100139

SEAT BELT, RETRACTING - ASSM - RED
(Superseded to 5100139SM)

$103.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5100267

SCREW, 1/2 - 13 X 1.00 SCHS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5410295A

BAR, MOUNT, SEAT BELT, IS700Z - BLK
(Superseded to 5410295AYP)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

15

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

16

Snapper Pro 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0
