S 125XT (5901632) - Snapper Pro S125XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton 61" Mower Deck - Rollers Parts Diagram

S125XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton

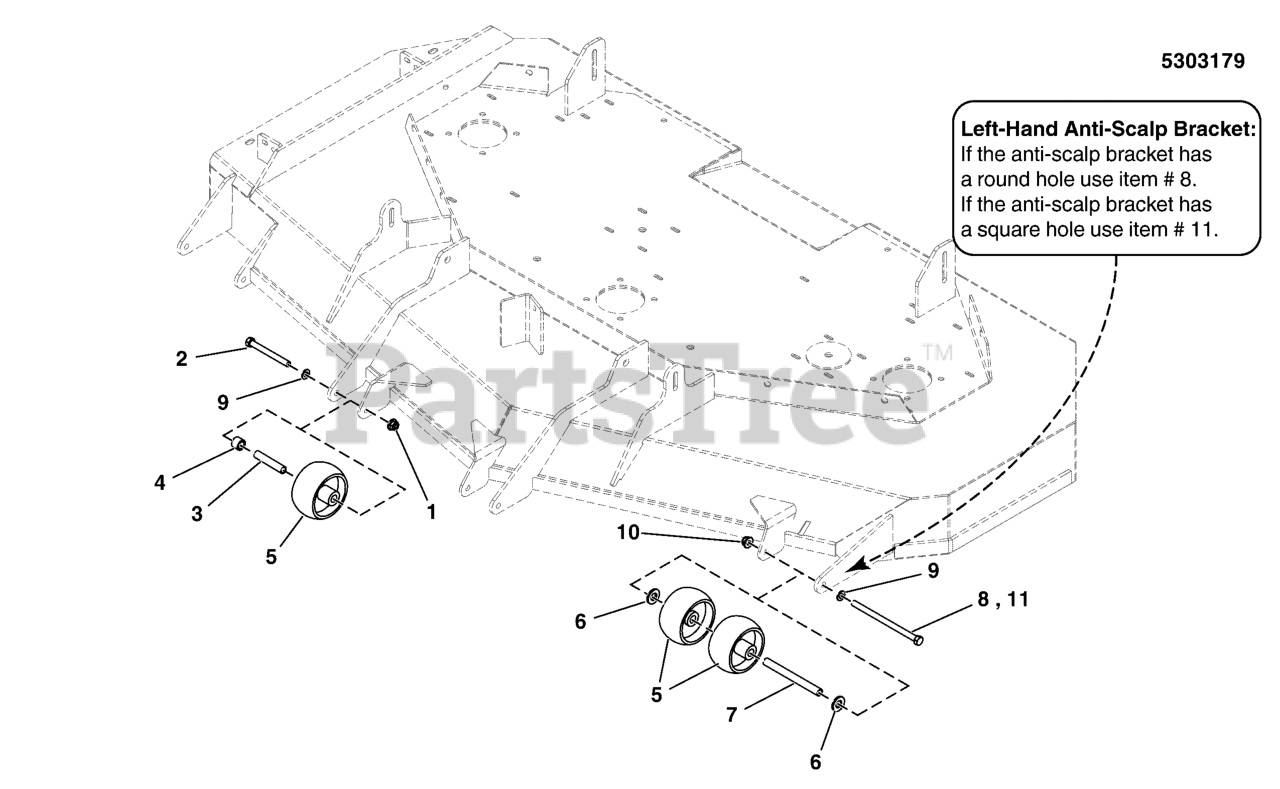

61" Mower Deck - Rollers Parts Diagram

  • Title

1

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5104675

SPACER, .38 X .50 X 2.50, CZ
(Superseded to 5104675YP)

$3.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5047027

SPACER, .51 X .75 X .56, PM, CZ
(Superseded to 5047027SM)

$5.49

$

In Stock, Qty 20+

0

5

Snapper Pro 1714760

WHEEL- 2.00 WIDE 3.88 DIA 0.531ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

6

Snapper Pro 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

7

Snapper Pro 5046586

SPACER, .38 X .50 X 5.06, CZ
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

Note: (For Anti-Scalp brackets with round holes.)

$5.99

$

In Stock, Qty 20+

0

9

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Snapper Pro 5025146X48

BOLT, CARRIAGE, 3/8-16 X 6, GD5, CZ
(Superseded to 5025146X48YP)

Note: (For Anti-Scalp brackets with square holes.)

$5.99

$

In Stock, Qty 11

0
