S 125XT (5901632) - Snapper Pro S125XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

S125XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton

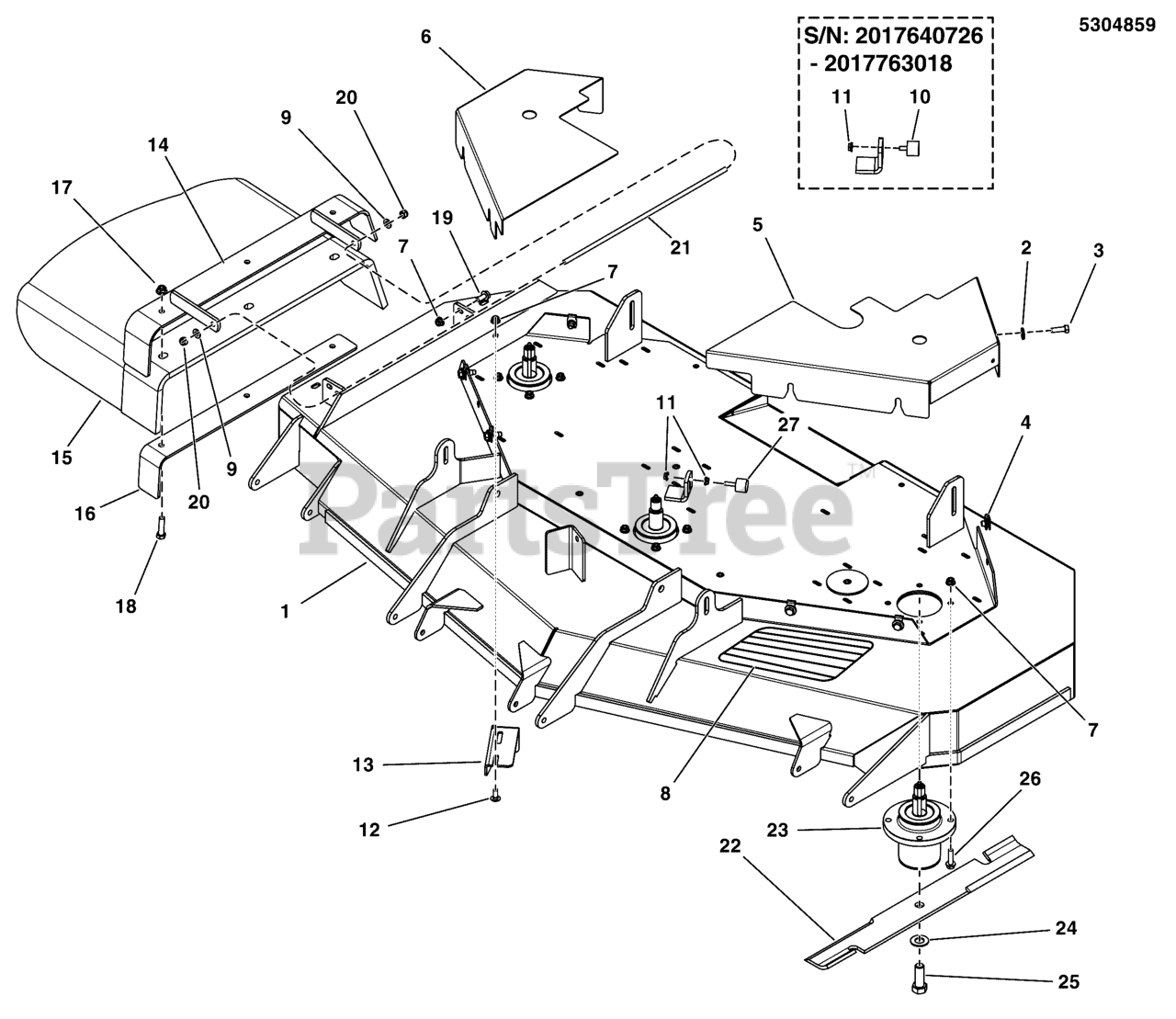

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5600994

DECK SHELL W/ DECALS, 61, 125 (5415801D)

$2074.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

Note: (Torque to 17 ft.lbs (23 Nm))

$3.49

$

In Stock, Qty 17

0

4

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5410255D

PLATE, GUARD, 61, LH - RED

$56.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5410254D

PLATE, GUARD, 61, RH - RED
(Superseded to 5410254DFS)

$50.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

9

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Snapper Pro 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

Note: (S/N: 2017640726 - 2017763018)

$18.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (Qty: 1 - S/N: 2017640726 - 2017763018)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

13

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$28.99

$

In Stock, Qty 5

0

17

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

18

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

20

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

21

Snapper Pro 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5101755S

BLADE SET, 61 DECK (3)

$

$

Not available

23

Snapper Pro 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

25

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque to 70 ft.lbs (94 Nm))

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5105237

BUMPER, RUBBER, 1/4-20 X 7/8" STUD
(Superseded to 5105237YP)

Note: (S/N: 2017763019 & Above)

$6.99

$

Usually ships in 2-12 days

0
