S 125XT (5901249) - Snapper Pro S125XT Series 61" Zero-Turn Mower, 24hp Kawasaki Motion Control Group - Handles & Dampeners Parts Diagram

S125XT Series 61" Zero-Turn Mower, 24hp Kawasaki

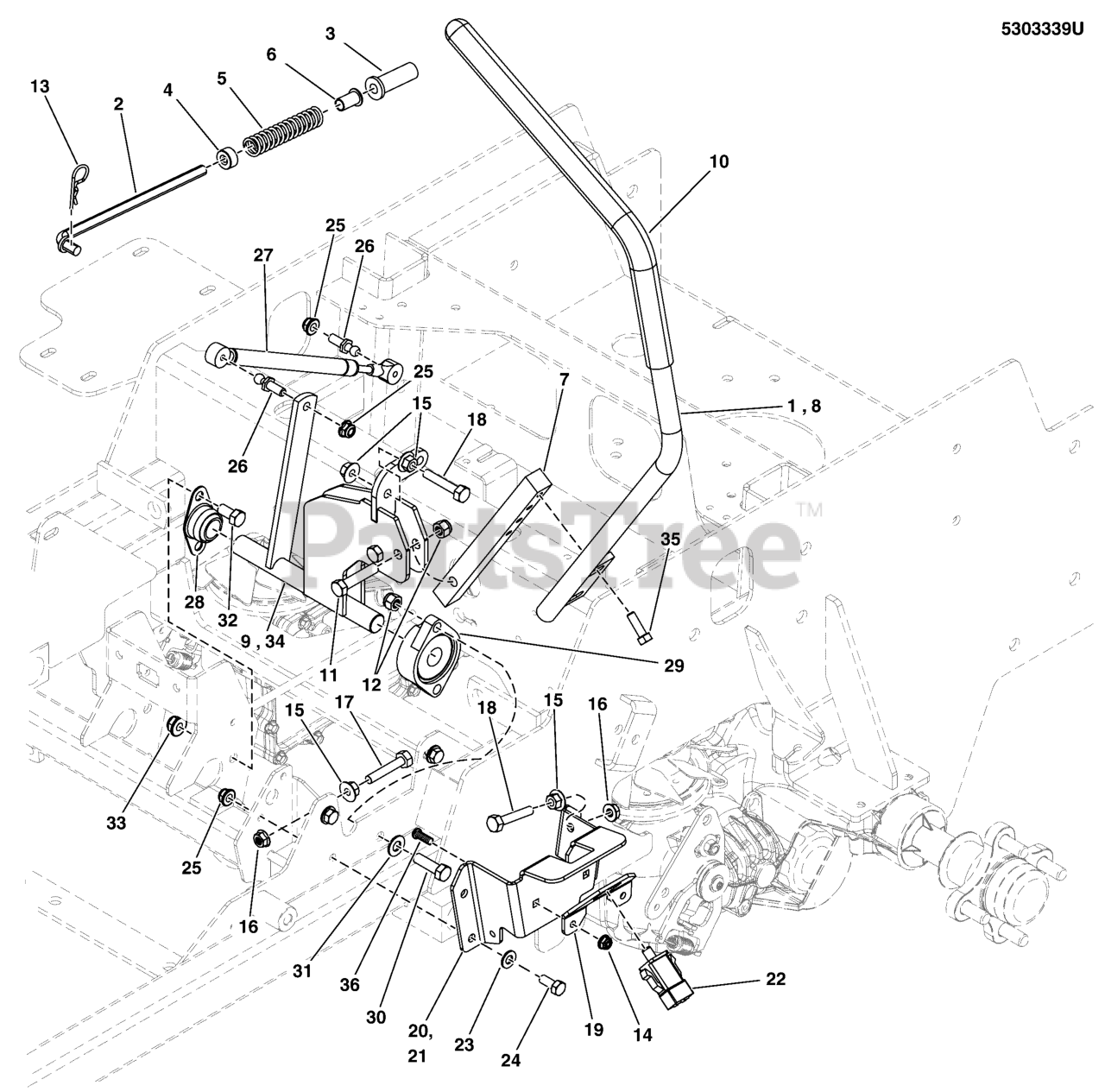

Motion Control Group - Handles & Dampeners Parts Diagram

  • Title

1

Snapper Pro 5400636A

WELD, HANDLE MOTION CONTROL LH - BLK
(Superseded to 5400636AYP)

Note: (S/N: 2017501539 & Below)

$50.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 5414431A

WELD, HANDLE MOTION CNTRL, 19.0, 1.0, LH - BLK
(Superseded to 5414431AA)

Note: (S/N: 2017501540 & Above)

$54.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5100947

ROD, NEUTRAL RETURN, CZ
(Superseded to 5100947SM)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5010546

COLLAR, 3/8" Set
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

6

Snapper Pro 5023260

BUSHING, FLANGE 3/8ID X 7/8 LONG
(Superseded to 5023260SM)

$6.49

$

In Stock, only 2 left!

0

7

Snapper Pro 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

8

Snapper Pro 5400637A

WELD, HANDLE MOTION CONTROL RH - BLK

Note: (S/N: 2017501539 & Below)

$

$

Currently unavailable

8

Snapper Pro 5414432A

WELD, HANDLE MOTION CNTRL, 19.0, 1.0, RH - BLK
(Superseded to 5108431AA)

Note: (S/N: 2017501540 & Above)

$49.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5410103A

WELD, CONTROL SHAFT, RH - BLK
(Superseded to 5410103AYP)

$88.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5022068

GRIP, FOAM, 3/4" ID, 16"" LONG
(Superseded to 5022068SM)

Note: (S/N: 2017501539 & Below)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

Note: (S/N: 2017501540 & Above)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper Pro 5025210

3/32 X 1-5/8 HAIR PIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

14

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

15

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

16

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

17

Snapper Pro 5025055X12

BOLT- 5/16-18 X 1-1/2 GD5 TFL
(Superseded to 5025055X12SM)

$3.99

$

In Stock, only 2 left!

0

18

Snapper Pro 5025055X14

BOLT, 5/16-18 X 1-3/4 TFL, GD5 YZ
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5409984A

BRACKET, SWITCH MOUNT - BLK
(Superseded to 5409984AYP)

$7.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5410907A

PLATE, NEUTRAL LOCK, LH - BLACK
(Superseded to 5410907AFS)

$29.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5410908A

PLATE, NEUTRAL LOCK, RH - BLACK
(Superseded to 5410908AFS)

$29.99

$

Usually ships in 2-12 days

0

22

SEE ELECTRICAL GROUP

$

$

Not available

23

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

24

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

25

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5101307

10MM BALL STUD, 5/16-18 X 3/4 THDS
(Superseded to 5101307SM)

$5.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

28

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

29

Snapper Pro 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

30

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

31

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

34

Snapper Pro 5410102A

WELD, CONTROL SHAFT, LH - BLK
(Superseded to 5410102AYP)

$82.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 14

0

36

Snapper Pro 80003579

BOLT,1/4-20X.75,GR5,RH SH SQ NK,ZNC/CLR
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0
