S 1227 (1696619-04) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2019) Engine & Frame Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

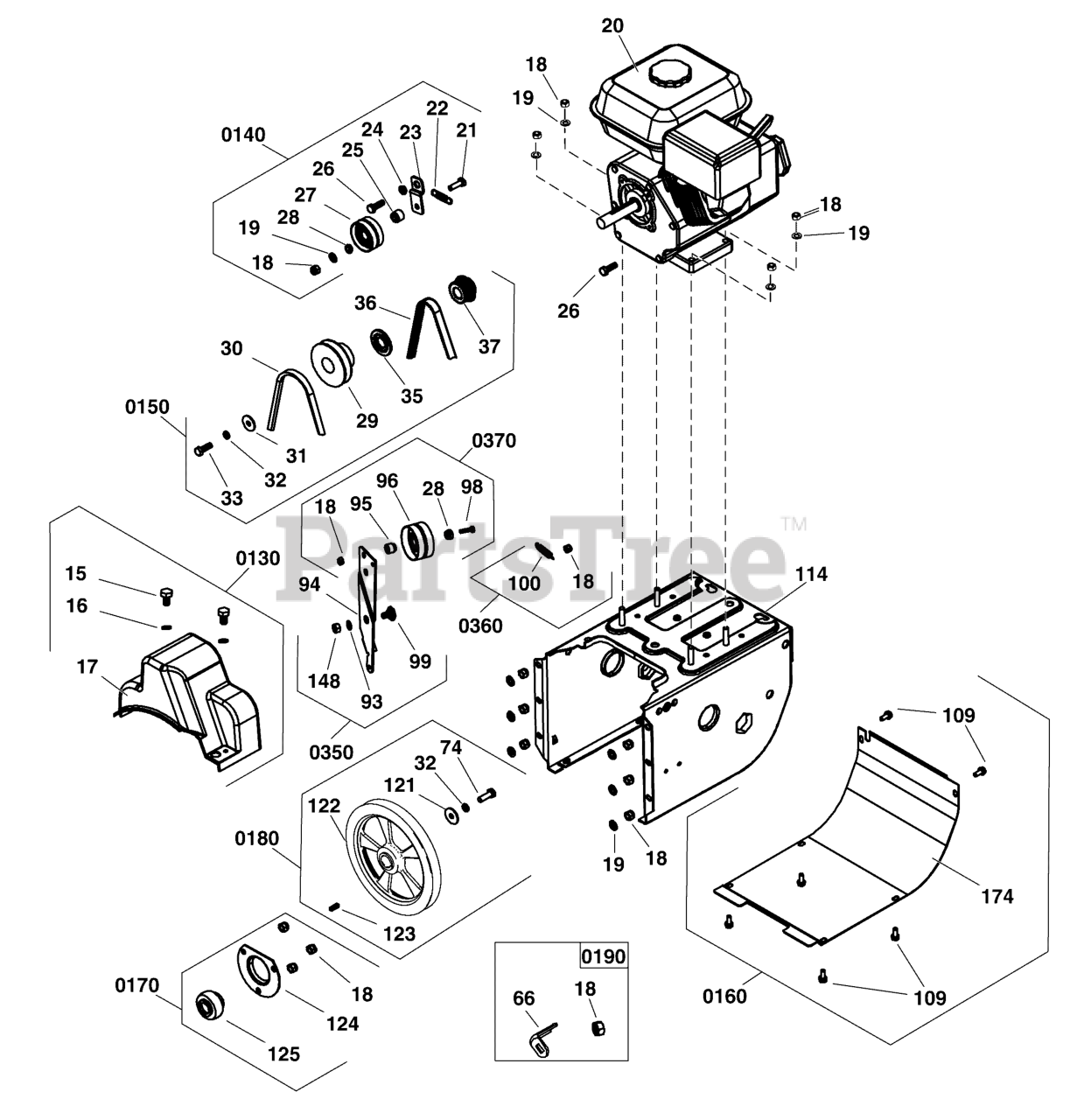

Engine & Frame Group Parts Diagram

  • Title

18

NUT, Lock, M8

$

$

Not available

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

20

Briggs & Stratton 15C107-0037-F8

ENGINE, 11.5 Gross TP Briggs & Stratton

Note: (Engine Model: 15C107-0037-F8) (Refer to Note:**)

$

$

Currently unavailable

30

Briggs & Stratton 770796

BELT, Auger Drive

$80.99

$

In Stock, only 4 left!

0

36

Briggs & Stratton 707585

BELT, Traction Drive

$22.99

$

In Stock, Qty 14

0

94

Briggs & Stratton 770804

IDLER, Auger

$40.99

$

Usually ships in 2-12 days

0

114

BOX, Frame

$

$

Not available

0130

Briggs & Stratton 707567

KIT, Belt Cover
(Superseded to 84003838)

Note: (Incl. Ref. Nos. 15, 16, 17)

$42.99

$

Usually ships in 2-12 days

0

15

SCREW, Hex Head, M6 X 12

$

$

Not available

16

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

17

COVER, Belt

$

$

Not available

0140

Briggs & Stratton 707568

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 18, 19, 21, 22, 23, 24, 25, 26, 27, 28)

$55.99

$

In Stock, only 1 left!

0

18

NUT, Lock, M8

$

$

Not available

19

WASHER, 8x16x1.6, Flat

$

$

Not available

21

SCREW, Hex Head, M8 X 40

$

$

Not available

22

SPRING, Idler

$

$

Not available

23

BRACKET, Idler

$

$

Not available

24

SPACER, Idler Plate, Small

$

$

Not available

25

SPACER, Idler Pulley

$

$

Not available

26

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

27

PULLEY, Idler

$

$

Not available

28

SPACER, Idler Pulley

$

$

Not available

0150

Briggs & Stratton 707569

KIT, Engine Pulley

Note: (Incl. Ref. Nos. 29, 31, 32, 33, 35, 37)

$152.99

$

In Stock, only 1 left!

0

29

PULLEY, Auger

$

$

Not available

31

WASHER, Flat, 8 X 28 X 3

$

$

Not available

32

WASHER, Lock, M8

$

$

Not available

33

SCREW, Hex Head, M8 X 30

$

$

Not available

35

SPACER, Belt Wheel

$

$

Not available

37

PULLEY, Drive

$

$

Not available

0160

Briggs & Stratton 84003840

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 109, 174)

$51.99

$

Usually ships in 2-12 days

0

109

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

174

COVER, Bottom

$

$

Not available

0170

Briggs & Stratton 770800

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 18, 124, 125)

$29.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

124

RETAINER, Ball Bearing

$

$

Not available

125

BEARING, Ball

$

$

Not available

0180

Briggs & Stratton 770803

KIT, Auger Pulley

Note: (Incl. Ref. Nos. 32, 74, 121, 122, 123)

$64.99

$

Usually ships in 2-12 days

0

32

WASHER, Lock, M8

$

$

Not available

74

SCREW, Hex Head, M8X20

$

$

Not available

121

WASHER, Flat, 8 X 28 X 2

$

$

Not available

122

PULLEY

$

$

Not available

123

KEY, Flat, 6 X 6 X 17

$

$

Not available

0190

Briggs & Stratton 707547

KIT, Belt Guide, Auger

Note: (Incl. Ref. Nos. 18, 66)

$11.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

66

GUIDE, Belt

$

$

Not available

0350

Briggs & Stratton 707565

KIT, Hardware, Idler Bracket

Note: (Incl. Ref. Nos. 93, 99, 148)

$8.99

$

Usually ships in 2-12 days

0

93

WASHER, Flat, 10 X 20 X 2

$

$

Not available

99

SCREW, Hex Head, M10 X 13

$

$

Not available

148

NUT, Lock, M10

$

$

Not available

0360

Briggs & Stratton 707564

KIT, Spring, Idler Pulley

Note: (Incl. Ref. Nos.18, 100)

$6.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

100

SPRING, Idler

$

$

Not available

0370

Briggs & Stratton 707566

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 18, 28, 95, 96 & 98)

$41.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

28

SPACER, Idler Pulley

$

$

Not available

95

SPACER, Sleeve, Idler Pulley

$

$

Not available

96

PULLEY, Idler

$

$

Not available

98

SCREW, Hex Head, M8 X 45

$

$

Not available
