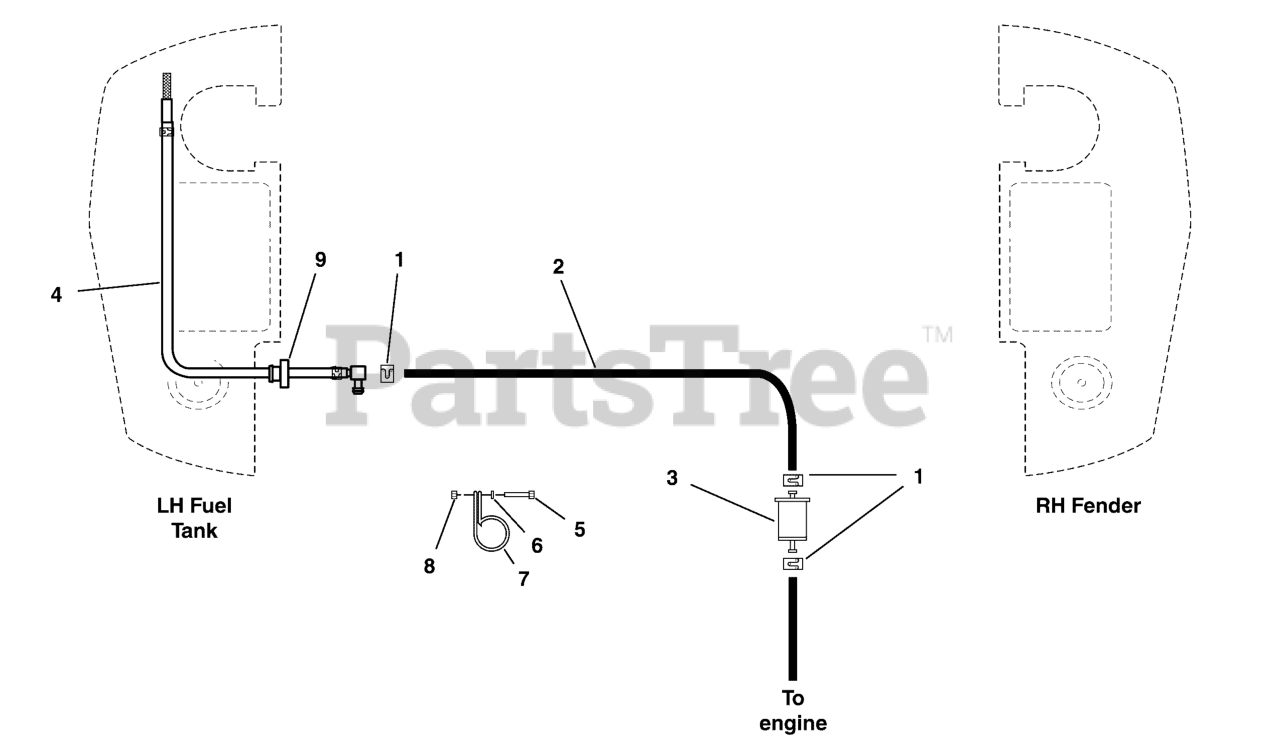

S 120 (5901868) - Snapper Pro S120 Series 61" Zero-Turn Mower, 24hp Kawasaki Fuel Supply Hose & Tank Replacement Parts Parts Diagram

S120 Series 61" Zero-Turn Mower, 24hp Kawasaki

Fuel Supply Hose & Tank Replacement Parts Parts Diagram

  • Title
1

Snapper Pro 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

2

Refer to: Engine & PTO Group

$

$

Not available

3

Snapper Pro 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

Note: (SV)

$12.99

$

In Stock, Qty 15

0

4

Snapper Pro 5101149

PICKUP TUBE ASM, FUEL TANK, 22"
(Superseded to 5101149SM)

Note: (SV)

$25.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

6

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

9

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 6

0
