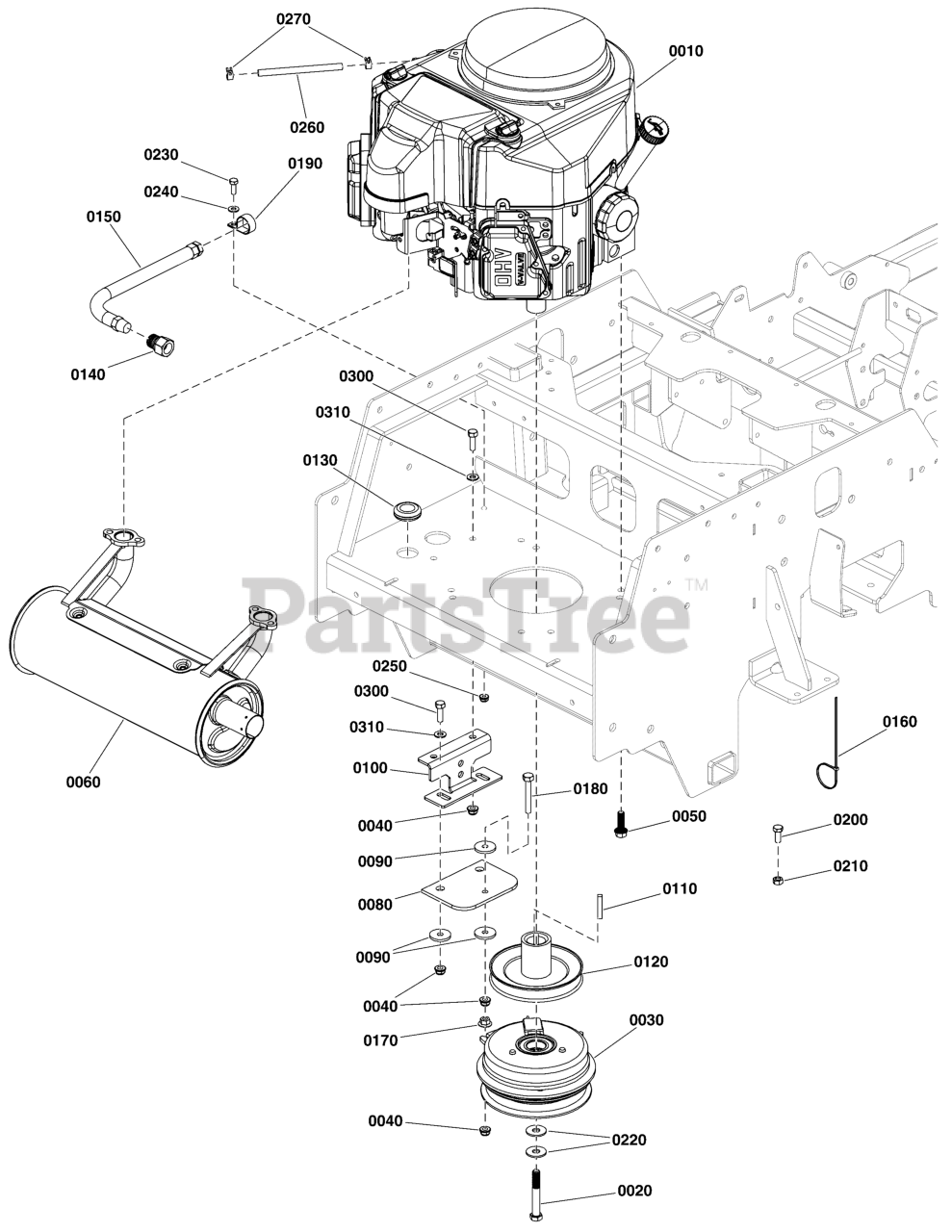

S 120 (5901868) - Snapper Pro S120 Series 61" Zero-Turn Mower, 24hp Kawasaki Engine and PTO Group - Kawasaki FR730V Parts Diagram

S120 Series 61" Zero-Turn Mower, 24hp Kawasaki

Engine and PTO Group - Kawasaki FR730V Parts Diagram

  • Title

0010

ENGINE, KAWASAKI, FR730V (FR730V-AS25-R)

Note: (Refer to Note: *)

$

$

Not available

0020

Snapper Pro 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

Note: (Torque engine clutch bolt to 65 ft-lbs [88 Nm])

$5.49

$

In Stock, only 1 left!

0

0030

Snapper Pro 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 2 left!

0

0040

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0050

Snapper Pro 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 50 ft-lbs [81 Nm])

$3.49

$

In Stock, only 4 left!

0

0060

Snapper Pro 5104326

MUFFLER, KAWI, HORIZONTAL, 5" CAN
(Superseded to 5104326YP)

$207.99

$

In Stock, only 1 left!

0

0080

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

0090

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

0100

Snapper Pro 5410367A

ANCHOR, CLUTCH, IS600-IS700 - BLK
(Superseded to 5410367AYP)

$17.99

$

In Stock, only 1 left!

0

0110

Snapper Pro 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

0120

Snapper Pro 5105108

PULLEY, CRANKSHAFT 1.1255"ID X 5.318" OB
(Superseded to 5105108YP)

$64.99

$

Usually ships in 2-12 days

0

0130

Snapper Pro 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

0150

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

0160

Snapper Pro 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

0180

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

0190

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

0210

Snapper Pro 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

0220

Snapper Pro 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

0230

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0240

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0250

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0260

Snapper Pro 5050831X5

1/4" Fuel Line, 5" Long
(Superseded to 5050831X5SM)

$5.49

$

Usually ships in 2-12 days

0

0270

Snapper Pro 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

0300

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0310

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
