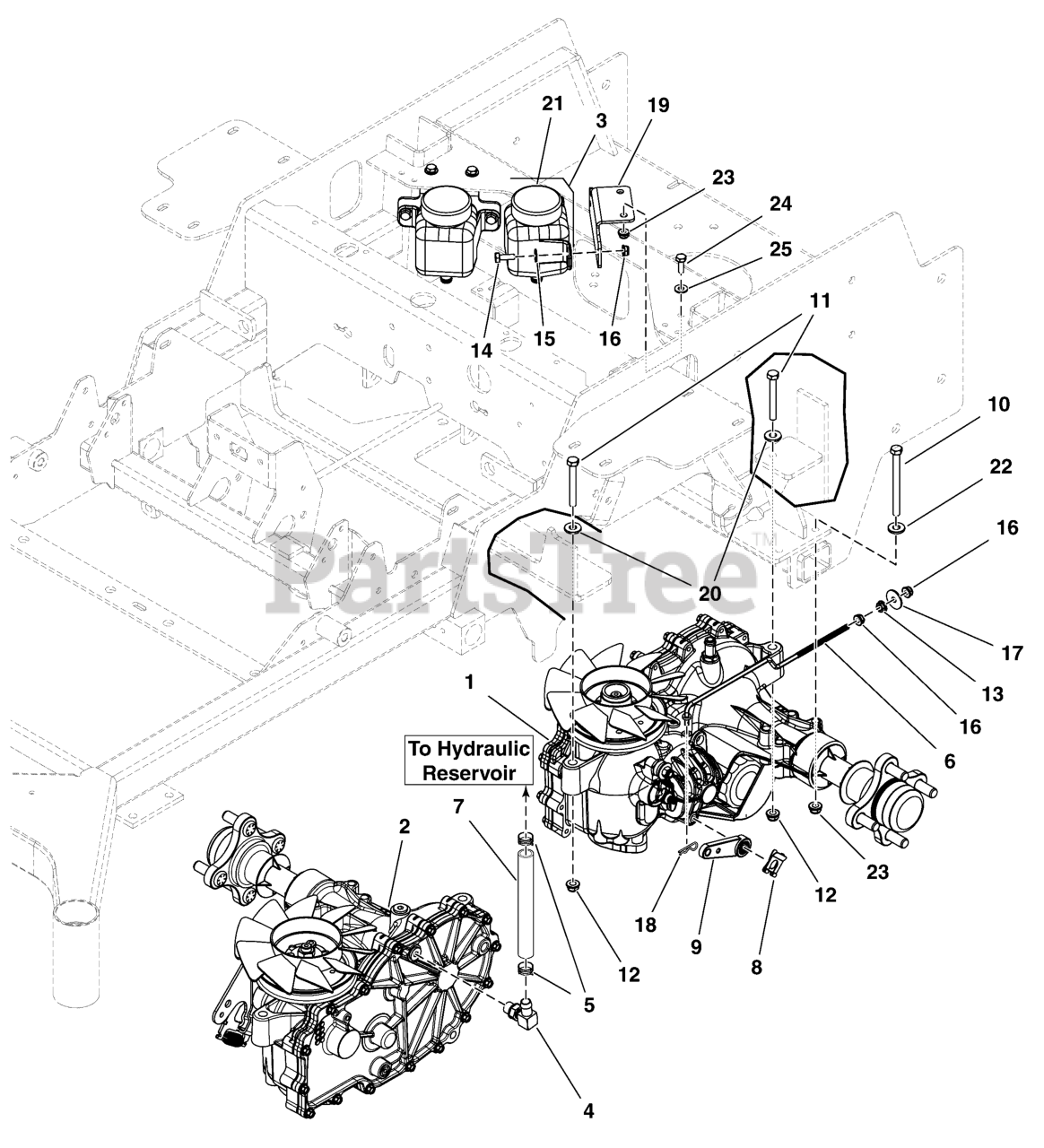

S 120 (5901867) - Snapper Pro S120 Series 52" Zero-Turn Mower, 25hp Briggs & Stratton Hydraulic Group Parts Diagram

S120 Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

Hydraulic Group Parts Diagram

  • Title

1

Snapper Pro 5106642

TRANSAXLE, ZT3200, LH, ZJ-KYEF-8T7C-1GRX
(Superseded to 84001998)

Note: (S/N: 40015467047 and below)

$1274.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 5109254

TRANSAXLE, ZT-3200, LH,ZJ-KYEF-9T7C-1GRX
(Superseded to 5109254FS)

Note: (S/N: 40015467048 and above)

$1280.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5106643

TRANSAXLE, ZT3200, RH, ZJ-GYEF-8T7B-1GRX
(Superseded to 84001999)

Note: (S/N: 40015467047 and below)

$1274.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5109253

TRANSAXLE, ZT-3200, RH,ZJ-GYEF-9T7B-1GRX
(Superseded to 5109253FS)

Note: (S/N: 40015467048 and above)

$1280.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

$40.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5100370

FITTING, 9/16 O-RING-1/2" HOSE, 90 DEG
(Superseded to 5100370YP)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5103631

ROD, DUMP VALVE, S125XT, CZ
(Superseded to 5103631YP)

$15.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5050857X5P5

HOSE, 1/2" X 5.5" PUSH LOCK
(Superseded to 5050857X5P5FS)

$8.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5104055

E-CLIP, BRAKE ARM, ZT3100 & ZT3400
(Superseded to 5104055YP)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5103750

BRAKE ARM, ZT3400
(Superseded to 5103750YP)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025011X24

BOLT, 5/16-18 X 3" GD5 YZ
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

12

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

18

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5415778A

PLATE, HYDRO BOTTLE, TALL MOUNT- BLK

$

$

Currently unavailable

20

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5100778X1

RESERVIOR CAP

Note: (SV)

$20.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

23

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

25

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
