S 1026 (1697330-01) - Briggs & Stratton 26" Snow Thrower, 9.5 Gross TP (2020) Handles Group Parts Diagram

26" Snow Thrower, 9.5 Gross TP

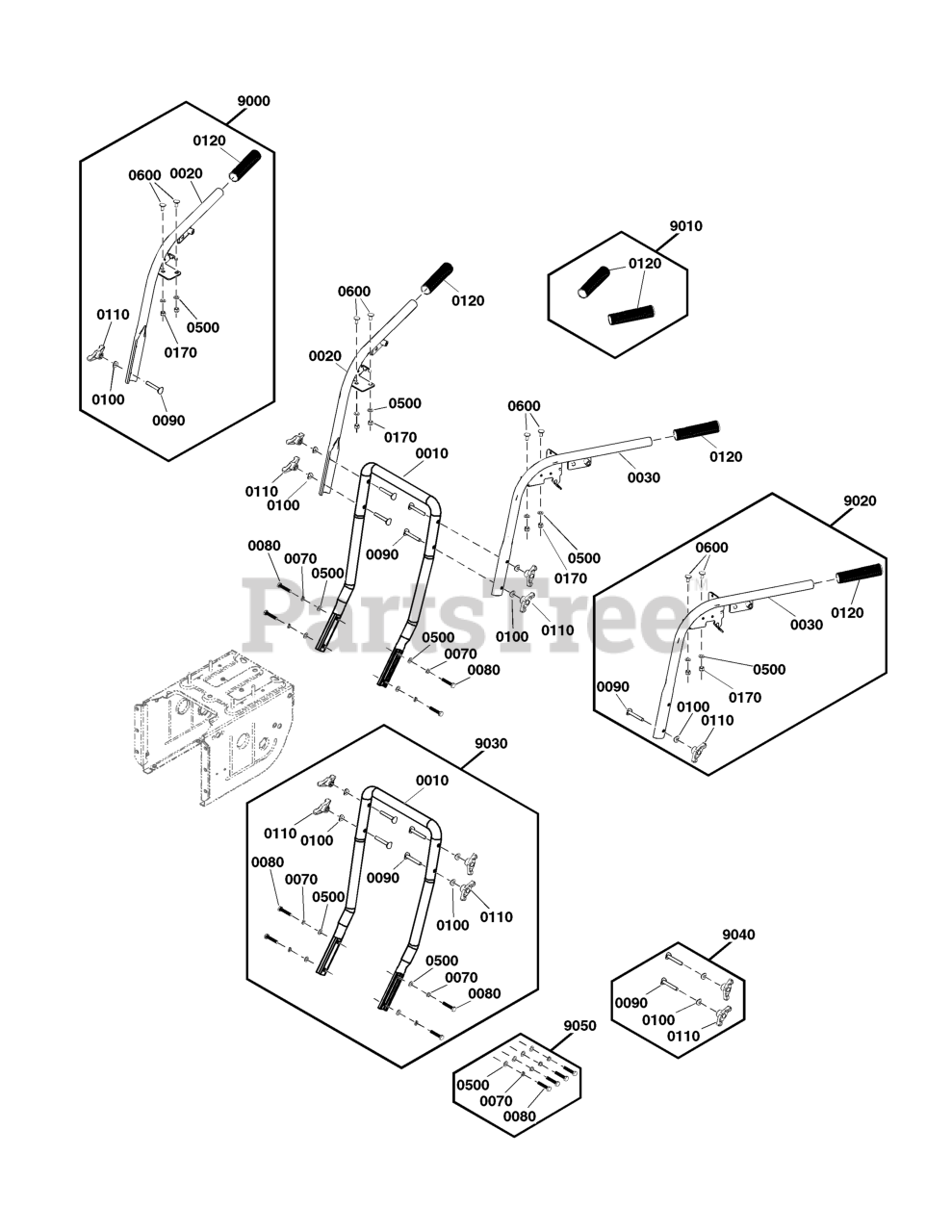

Handles Group Parts Diagram

  • Title
9000

Briggs & Stratton 84003830

KIT, Upper Handle, Right

Note: (Incl. Ref. Nos. 0020, 0090, 0100, 0110, 0120, 0170, 0500, 0600)

$57.99

$

Usually ships in 2-12 days

0

0020

HANDLE, Upper Right

$

$

Not available

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

0120

GRIP, Hand

$

$

Not available

0170

NUT, Lock, M8

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0600

BOLT, Carriage, M8 X 18

$

$

Not available

9010

Briggs & Stratton 84003831

KIT, Grip, Handle

Note: (Incl. Ref. No. 0120)

$41.99

$

Usually ships in 2-12 days

0

0120

GRIP, Hand

$

$

Not available

9020

Briggs & Stratton 84003832

KIT, Upper Handle, Left

Note: (Incl. Ref. Nos. 0030, 0090, 0100, 0110, 0120, 0170, 0500, 0600)

$50.99

$

Usually ships in 2-12 days

0

0030

HANDLE, Upper Left

$

$

Not available

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

0120

GRIP, Hand

$

$

Not available

0170

NUT, Lock, M8

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0600

BOLT, Carriage, M8 X 18

$

$

Not available

9030

Briggs & Stratton 84003833

KIT-LOWER HANDLE

Note: (Incl. Ref. Nos. 0010, 0070, 0080, 0090, 0100, 0110, 0500)

$74.99

$

Usually ships in 2-12 days

0

0010

HANDLE, Lower

$

$

Not available

0070

WASHER, Lock, M8

$

$

Not available

0080

SCREW, Hex Head, M8X20

$

$

Not available

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

9040

Briggs & Stratton 707513

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 0090, 0100, 0110)

$36.99

$

In Stock, only 4 left!

0

0090

BOLT, Carriage, M8 X 55

$

$

Not available

0100

WASHER, M8, Curved

$

$

Not available

0110

KNOB, Wing, M8

$

$

Not available

9050

Briggs & Stratton 84003835

KIT, Lower Handle Hardware

Note: (Incl. Ref. Nos. 0070, 0080, 0500)

$14.99

$

Usually ships in 2-12 days

0

0070

WASHER, Lock, M8

$

$

Not available

0080

SCREW, Hex Head, M8X20

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available
