S 1026 (1697330-01) - Briggs & Stratton 26" Snow Thrower, 9.5 Gross TP (2020) Auger Drive Group Parts Diagram

26" Snow Thrower, 9.5 Gross TP

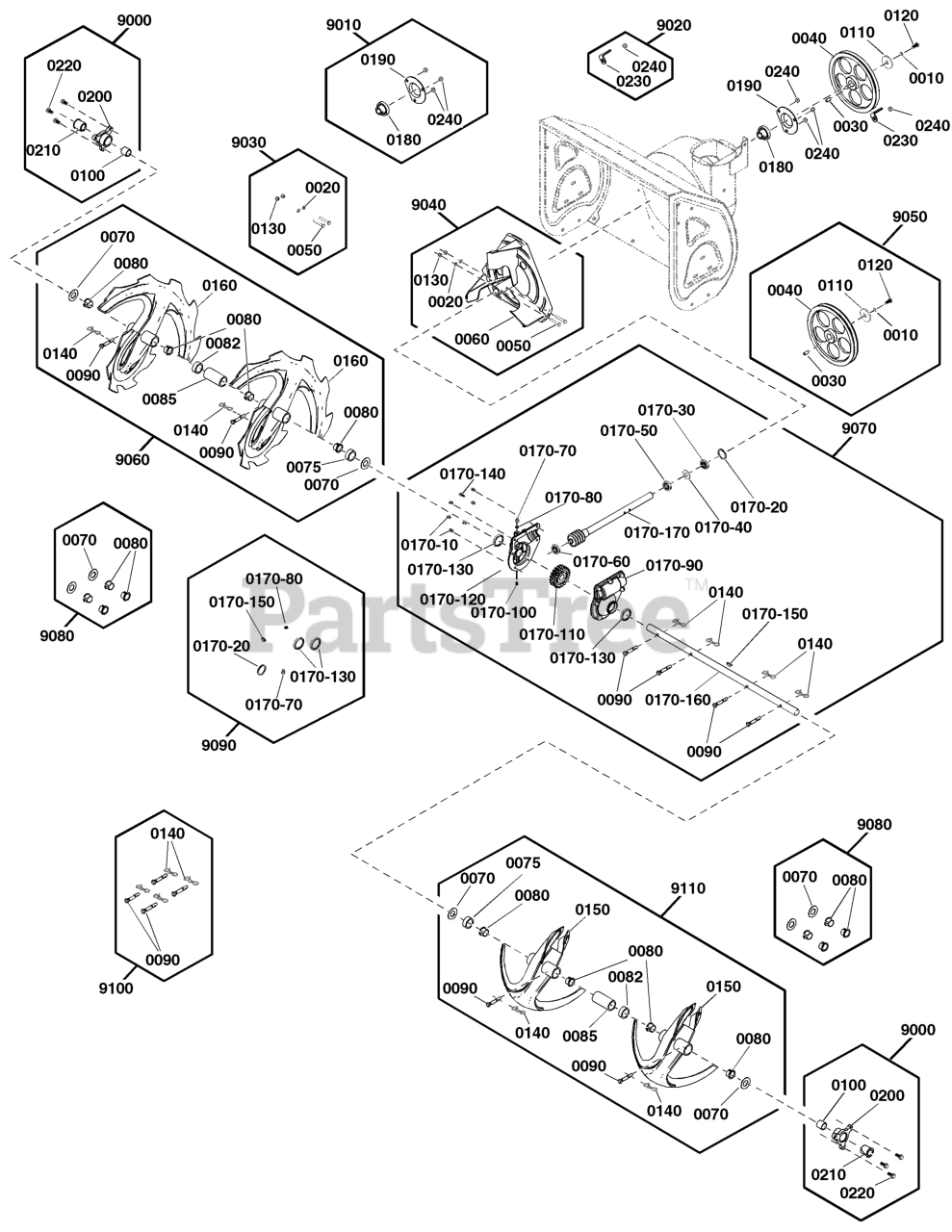

Auger Drive Group Parts Diagram

  • Title

9000

Briggs & Stratton 707553

KIT, Mounting Plate, Auger Housing

Note: (Incl. Ref. Nos. 0100, 0200, 0210, 0220)

$48.99

$

Usually ships in 2-12 days

0

0100

BEARING, Sleeve

$

$

Not available

0200

RETAINER, Auger Shaft

$

$

Not available

0210

BEARING, Auger Shaft

$

$

Not available

0220

SCREW, Hex Head, M8 X 16

$

$

Not available

9010

Briggs & Stratton 770800

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 0180, 0190, 0240)

$29.99

$

Usually ships in 2-12 days

0

0180

BEARING, Ball

$

$

Not available

0190

RETAINER, Ball Bearing

$

$

Not available

0240

NUT, Lock, M8

$

$

Not available

9020

Briggs & Stratton 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 0230, 0240)

$11.99

$

Usually ships in 2-12 days

0

0230

GUIDE, Belt

$

$

Not available

0240

NUT, Lock, M8

$

$

Not available

9030

Briggs & Stratton 707758

KIT, SHEAR PIN, IMPELLER

Note: (Incl. Ref. Nos. 0020, 0050, 0130)

$14.99

$

In Stock, only 1 left!

0

0020

WASHER, 6x12x.7, Flat

$

$

Not available

0050

BOLT, Hex, M6 X 38

$

$

Not available

0130

NUT, Lock, M6

$

$

Not available

9040

Briggs & Stratton 707560

KIT, Impeller Assembly

Note: (Incl. Ref. Nos. 0020, 0050, 0060, 0130)

$93.99

$

In Stock, Qty 5

0

0020

WASHER, 6x12x.7, Flat

$

$

Not available

0050

BOLT, Hex, M6 X 38

$

$

Not available

0060

IMPELLER

$

$

Not available

0130

NUT, Lock, M6

$

$

Not available

9050

Briggs & Stratton 84006209

KIT, AUGER PULLEY

Note: (Incl. Ref. Nos. 0010, 0030, 0040, 0110, 0120)

$

$

Currently unavailable

0010

WASHER, Lock, M8

$

$

Not available

0030

KEY, Flat, 6 X 6 X 17

$

$

Not available

0040

PULLEY, Driven

$

$

Not available

0110

WASHER, Flat, 8 X 28 X 3

$

$

Not available

0120

SCREW, Hex Head, M8X20

$

$

Not available

9060

Briggs & Stratton 84006177

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 0070, 0075, 0080, 0082, 0085, 0090, 0140, 0160)

$158.99

$

Usually ships in 2-12 days

0

0070

WASHER, Flat

$

$

Not available

0075

SLEEVE, Auger Shaft

$

$

Not available

0080

BEARING, Auger Shaft

$

$

Not available

0082

SLEEVE, Auger Shaft

$

$

Not available

0085

SLEEVE, Auger Shaft

$

$

Not available

0090

PIN, Shear

$

$

Not available

0140

PIN, Cotter

$

$

Not available

0160

AUGER, 24", Right, Black

$

$

Not available

9070

Briggs & Stratton 84006064

KIT, Gearbox

Note: (Incl. Ref. Nos. 0090, 0140, 0170-10, 0170-20, 0170-30, 0170-40, 0170-50, 0170-60, 0170-70, 0170-80, 0170-90, 0170-100, 0170-110, 0170-120, 0170-130, 0170-140, 0170-150, 0170-160, 0170-170)

$397.99

$

Usually ships in 2-12 days

0

0090

PIN, Shear

$

$

Not available

0140

PIN, Cotter

$

$

Not available

0170-10

SCREW, Hex Head, M6 X 20

$

$

Not available

0170-20

SEAL, Oil

$

$

Not available

0170-30

BEARING

$

$

Not available

0170-40

WASHER, Flat

$

$

Not available

0170-50

BEARING

$

$

Not available

0170-60

BEARING

$

$

Not available

0170-70

ZERK, Grease Fitting

$

$

Not available

0170-80

WASHER, Wave

$

$

Not available

0170-90

GEAR CASE, Right

$

$

Not available

0170-100

BOLT, Phillips Head, M5 X 10

$

$

Not available

0170-110

GEAR, Worm

$

$

Not available

0170-120

GEAR CASE, Left

$

$

Not available

0170-130

SEAL, Oil

$

$

Not available

0170-140

BOLT, Hex, M6 X 25

$

$

Not available

0170-150

KEY, WOODRUFF

$

$

Not available

0170-160

SHAFT, Auger Out

$

$

Not available

0170-170

SHAFT, Impeller, Wormgear

$

$

Not available

9080

Briggs & Stratton 84003703

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 0070, 0080)

$6.49

$

Usually ships in 2-12 days

0

0070

WASHER, Flat

$

$

Not available

0080

BEARING, Auger Shaft

$

$

Not available

9090

Briggs & Stratton 84001647

KIT-SEAL, GEAR BOX

Note: (Incl. Ref. Nos. 0170-20, 0170-70, 0170-80, 0170-130, 0170-150)

$7.49

$

Usually ships in 2-12 days

0

0170-20

SEAL, Oil

$

$

Not available

0170-70

ZERK, Grease Fitting

$

$

Not available

0170-80

WASHER, Wave

$

$

Not available

0170-130

SEAL, Oil

$

$

Not available

0170-150

KEY, WOODRUFF

$

$

Not available

9100

Briggs & Stratton 84003702

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 0090, 0140)

$10.99

$

In Stock, only 2 left!

0

0090

PIN, Shear

$

$

Not available

0140

PIN, Cotter

$

$

Not available

9110

Briggs & Stratton 84006178

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 0070, 0075, 0080, 0082, 0085, 0090, 0140, 0150)

$158.99

$

Usually ships in 2-12 days

0

0070

WASHER, Flat

$

$

Not available

0075

SLEEVE, Auger Shaft

$

$

Not available

0080

BEARING, Auger Shaft

$

$

Not available

0082

SLEEVE, Auger Shaft

$

$

Not available

0085

SLEEVE, Auger Shaft

$

$

Not available

0090

PIN, Shear

$

$

Not available

0140

PIN, Cotter

$

$

Not available

0150

AUGER, 24", Left, Black

$

$

Not available
