S 1024 MDS (1697157-00) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2019) Auger Housing Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

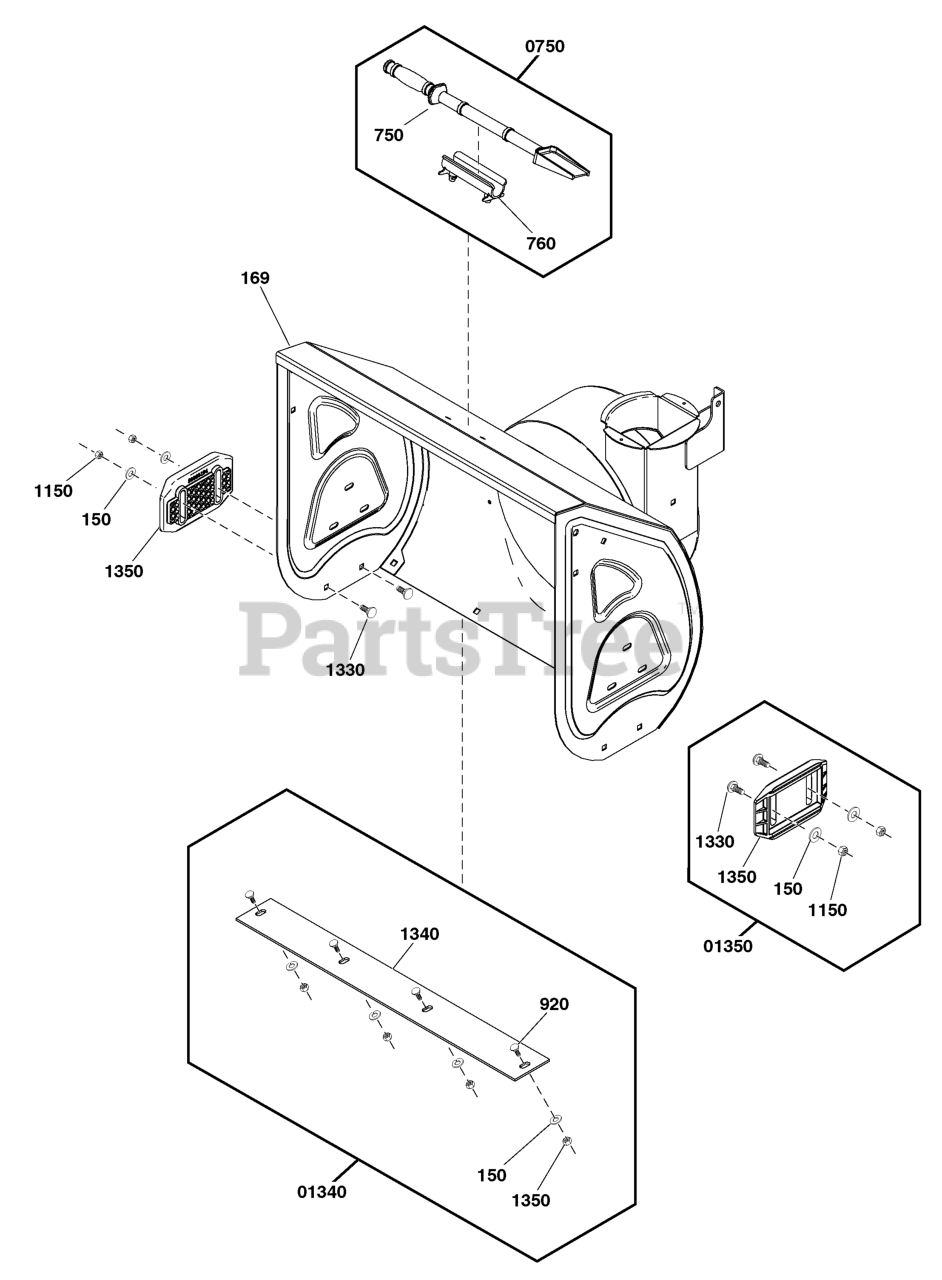

Auger Housing Group Parts Diagram

  • Title

169

AUGER HOUSING, 24", Charcoal

Note: (Refer to Note:*)

$

$

Not available

01350

Briggs & Stratton 84003710

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 18, 75, 172, 173)

$45.99

$

In Stock, Qty 7

0

150

WASHER, 8x22x2, Flat

$

$

Not available

1150

NUT, Lock, M8

$

$

Not available

1330

BOLT, Carriage, M8 X 25

$

$

Not available

1350

SHOE, Skid, Reversible

$

$

Not available

01340

Briggs & Stratton 84003707

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 18, 75, 170, 171)

$60.99

$

Usually ships in 2-12 days

0

150

WASHER, 8x22x2, Flat

$

$

Not available

920

BOLT, Carriage, M8 X 18

$

$

Not available

1150

NUT, Lock, M8

$

$

Not available

1340

BLADE, Scraper, 24"

$

$

Not available

0750

Briggs & Stratton 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 167, 168)

$28.99

$

Usually ships in 2-12 days

0

750

SHOVEL, Cleanout

$

$

Not available

760

CLAMP, Cleanout

$

$

Not available
