S 1024 ES (1696937-02) - Murray 24" Snow Thrower, 9.5hp Controls Group Parts Diagram

24" Snow Thrower, 9.5hp

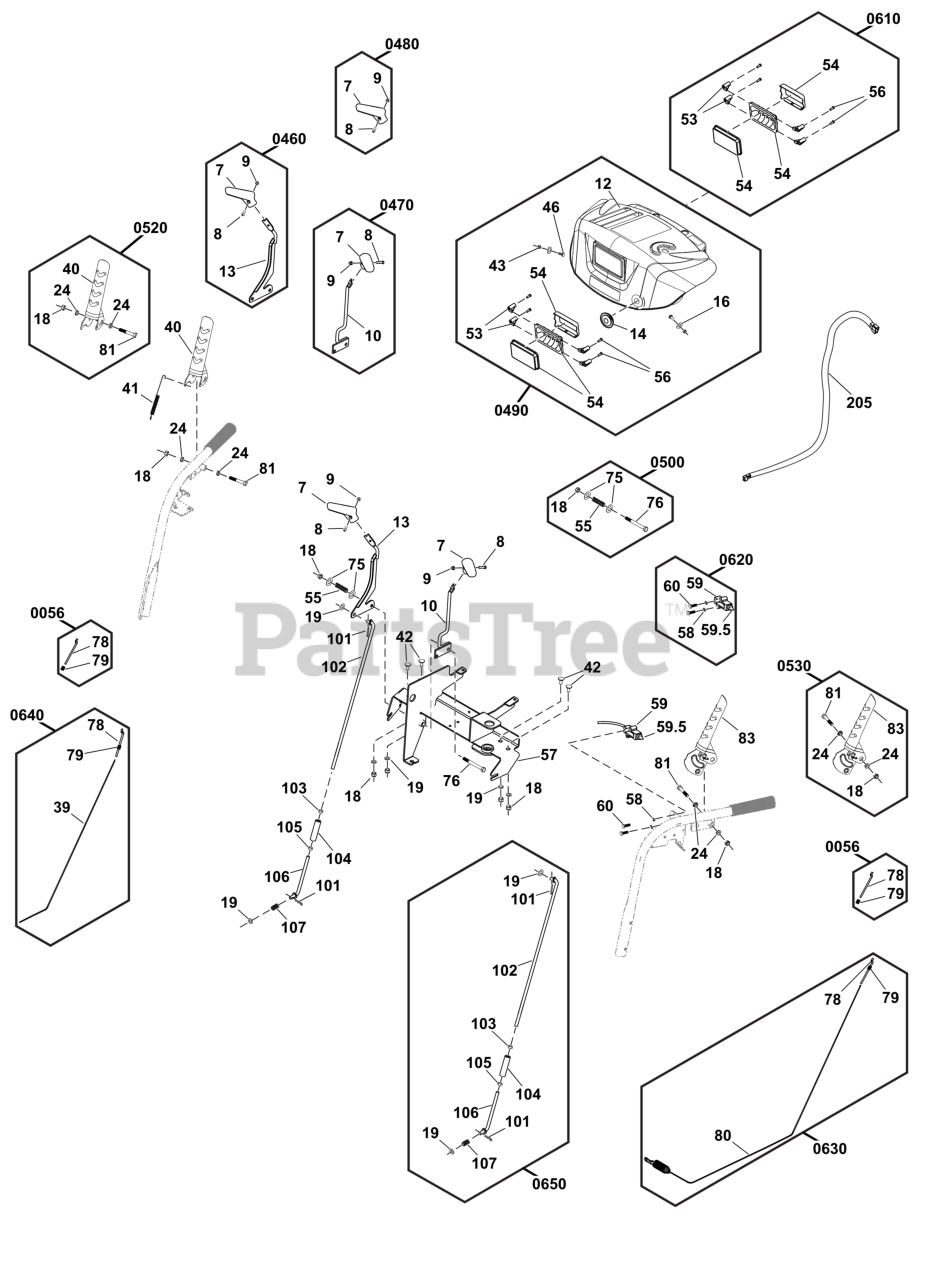

Controls Group Parts Diagram

  • Title

41

Briggs & Stratton 707877

SPRING, Handle

$12.99

$

Usually ships in 2-12 days

0

42

BOLT, Carriage, M8 X 18

Note: ( Refer to Note: * )

$

$

Not available

57

PANEL, Dash

Note: ( Refer to Note: * )

$

$

Not available

205

Briggs & Stratton 707637

HARNESS, Wiring

$118.99

$

Usually ships in 2-12 days

0

0056

Briggs & Stratton 770785

KIT, Cable, Hardware

Note: (Incl. Ref. Nos. 78, 79)

$9.99

$

Usually ships in 2-12 days

0

78

ROD, Cable

Note: ( Refer to Note: * ) ( Included with Ref. No. 0056 )

$

$

Not available

79

NUT, Copper

Note: ( Refer to Note: * ) ( Included with Ref. No. 0056 )

$

$

Not available

0460

Briggs & Stratton 84003853

KIT, Lever, Speed

Note: (Incl. Ref. Nos. 7, 8, 9, 13)

$27.99

$

Usually ships in 2-12 days

0

7

KNOB, Slot Speed

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

8

SCREW, Phillips Head, M5

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

9

NUT, Acorn, M5

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

13

LEVER ASSEMBLY, Speed

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

0470

Briggs & Stratton 84003854

KIT, Lever, Discharge Chute

Note: (Incl. Ref. Nos. 7, 8, 9, 10)

$24.99

$

Usually ships in 2-12 days

0

7

KNOB, Slot Speed

Note: ( Refer to Note: * ) ( Included with Ref. No. 0470 )

$

$

Not available

8

SCREW, Phillips Head, M5

Note: ( Refer to Note: * ) ( Included with Ref. No. 0470 )

$

$

Not available

9

NUT, Acorn, M5

Note: ( Refer to Note: * ) ( Included with Ref. No. 0470 )

$

$

Not available

10

LEVER ASSEMBLY, Deflector

Note: ( Refer to Note: * ) ( Included with Ref. No. 0470 )

$

$

Not available

0480

Briggs & Stratton 84003852

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 7, 8, 9)

$12.99

$

Usually ships in 2-12 days

0

7

KNOB, Slot Speed

Note: ( Refer to Note: * ) ( Included with Ref. No. 0480 )

$

$

Not available

8

SCREW, Phillips Head, M5

Note: ( Refer to Note: * ) ( Included with Ref. No. 0480 )

$

$

Not available

9

NUT, Acorn, M5

Note: ( Refer to Note: * ) ( Included with Ref. No. 0480 )

$

$

Not available

0490

Briggs & Stratton 770072

KIT, Dash Panel, Briggs

Note: (Incl. Ref. Nos. 12, 14, 16, 43, 46, 53, 54, 56)

$102.99

$

In Stock, only 1 left!

0

12

PANEL, Dash, B&S

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

14

BUSHING, Rotation Rod, Dash

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

16

WASHER, 6 X 18 X 1.5, Flat

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

43

NUT, Lock, M6

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

46

BOLT, Carriage, M6X16

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

53

CLAMP, Light

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

54

ASSEMBLY, Light

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

56

SCREW, Phillips, Self-Tapping

Note: ( Refer to Note: * ) ( Included with Ref. No. 0490 )

$

$

Not available

0500

Briggs & Stratton 707507

KIT, Hardware, Speed & Discharge

Note: (Incl. Ref. Nos. 18, 55, 75, 76)

$9.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

Note: ( Refer to Note: * ) ( Included with Ref. No. 0500 )

$

$

Not available

55

SPRING, Lever Assembly

Note: ( Refer to Note: * ) ( Included with Ref. No. 0500 )

$

$

Not available

75

WASHER, 8x22x2, Flat

Note: ( Refer to Note: * ) ( Included with Ref. No. 0500 )

$

$

Not available

76

SCREW, Hex Head, M8 X 70

Note: ( Refer to Note: * ) ( Included with Ref. No. 0500 )

$

$

Not available

0520

Briggs & Stratton 770771

KIT, Right Hand Lever (Traction Drive)

Note: (Incl. Ref. Nos. 18, 24, 40, 81)

$29.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

Note: ( Refer to Note: * ) ( Included with Ref. No. 0520 )

$

$

Not available

24

SPACER, Idler Plate, Small

Note: ( Refer to Note: * ) ( Included with Ref. No. 0520 )

$

$

Not available

40

LEVER, Clutch, Right

Note: ( Refer to Note: * ) ( Included with Ref. No. 0520 )

$

$

Not available

81

SCREW, Hex Head, M8 X 60

Note: ( Refer to Note: * ) ( Included with Ref. No. 0520 )

$

$

Not available

0530

Briggs & Stratton 770772

KIT, Left Hand Lever (Auger Drive)

Note: (Incl. Ref. Nos. 18, 24, 81, 83)

$29.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

Note: ( Refer to Note: * ) ( Included with Ref. No. 0530 )

$

$

Not available

24

SPACER, Idler Plate, Small

Note: ( Refer to Note: * ) ( Included with Ref. No. 0530 )

$

$

Not available

81

SCREW, Hex Head, M8 X 60

Note: ( Refer to Note: * ) ( Included with Ref. No. 0530 )

$

$

Not available

83

LEVER, Clutch, Left

Note: ( Refer to Note: * ) ( Included with Ref. No. 0530 )

$

$

Not available

0610

Briggs & Stratton 84003849

KIT, Headlight

Note: (Incl. Ref. Nos. 53, 54, 56)

$52.99

$

Usually ships in 2-12 days

0

53

CLAMP, Light

Note: ( Refer to Note: * ) ( Included with Ref. No. 0610 )

$

$

Not available

54

ASSEMBLY, Light

Note: ( Refer to Note: * ) ( Included with Ref. No. 0610 )

$

$

Not available

56

SCREW, Phillips Head, ST4, 2 X 14

Note: ( Refer to Note: * ) ( Included with Ref. No. 0610 )

$

$

Not available

0620

Briggs & Stratton 707521

KIT, Free Hand Control Assembly

Note: (Incl. Ref. Nos. 58, 59, 59.5, 60)

$31.99

$

Usually ships in 2-12 days

0

58

WASHER, M6, Split Lock, MC

Note: ( Refer to Note: * ) ( Included with Ref. No. 0620 )

$

$

Not available

59

BODY, Free Hand Control

Note: ( Refer to Note: * ) ( Included with Ref. No. 0620 )

$

$

Not available

59.5

CABLE, Free Hand Control

Note: ( Refer to Note: * ) ( Included with Ref. No. 0620 )

$

$

Not available

60

SCREW, Hex Head, M6 X 20

Note: ( Refer to Note: * ) ( Included with Ref. No. 0620 )

$

$

Not available

0630

Briggs & Stratton 84003856

KIT, CABLE, AUGER DRIVE

Note: (Incl. Ref. Nos. 78, 79, 80)

$57.99

$

In Stock, only 3 left!

0

78

ROD, Cable

Note: ( Refer to Note: * ) ( Included with Ref. No. 0630 )

$

$

Not available

79

NUT, Copper

Note: ( Refer to Note: * ) ( Included with Ref. No. 0630 )

$

$

Not available

80

CABLE, Auger Drive

Note: ( Refer to Note: * ) ( Included with Ref. No. 0630 )

$

$

Not available

0640

Briggs & Stratton 84003855

KIT, CABLE, TRACTION DRIVE

Note: (Incl. Ref. Nos. 39, 78, 79)

$63.99

$

In Stock, only 1 left!

0

39

CABLE, Traction Drive

Note: ( Refer to Note: * ) ( Included with Ref. No. 0640 )

$

$

Not available

78

ROD, Cable

Note: ( Refer to Note: * ) ( Included with Ref. No. 0640 )

$

$

Not available

79

NUT, Copper

Note: ( Refer to Note: * ) ( Included with Ref. No. 0640 )

$

$

Not available

0650

Briggs & Stratton 707526

KIT, Traction Drive Rod

Note: (Incl. Ref. Nos. 19, 101, 102, 103, 104, 105, 106, 107)

$45.99

$

Usually ships in 2-12 days

0

19

WASHER, Flat, 8 X 16 X 1.2

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

101

PIN, Hair, Cotter

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

102

ROD, Speed Select, Upper

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

103

NUT, Hex, M8

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

104

SLEEVE, Adjustment, M8

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

105

NUT, Hex, M8

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

106

ROD, Speed Select, Lower

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

107

SPRING, Speed Select

Note: ( Refer to Note: * ) ( Included with Ref. No. 0460 )

$

$

Not available

108

WASHER, Flat, 8 X 16 X 1.2

Note: ( Refer to Note: * ) ( Included with Ref. No. 0650 )

$

$

Not available
