RZX801GKA524A3 - Exmark 52" Radius X-Series Zero-Turn Mower, Kawasaki FX801V (SN: 413950474 & Above) (Rev A) (2023) RH Transaxle Assembly Parts Diagram

52" Radius X-Series Zero-Turn Mower, Kawasaki FX801V

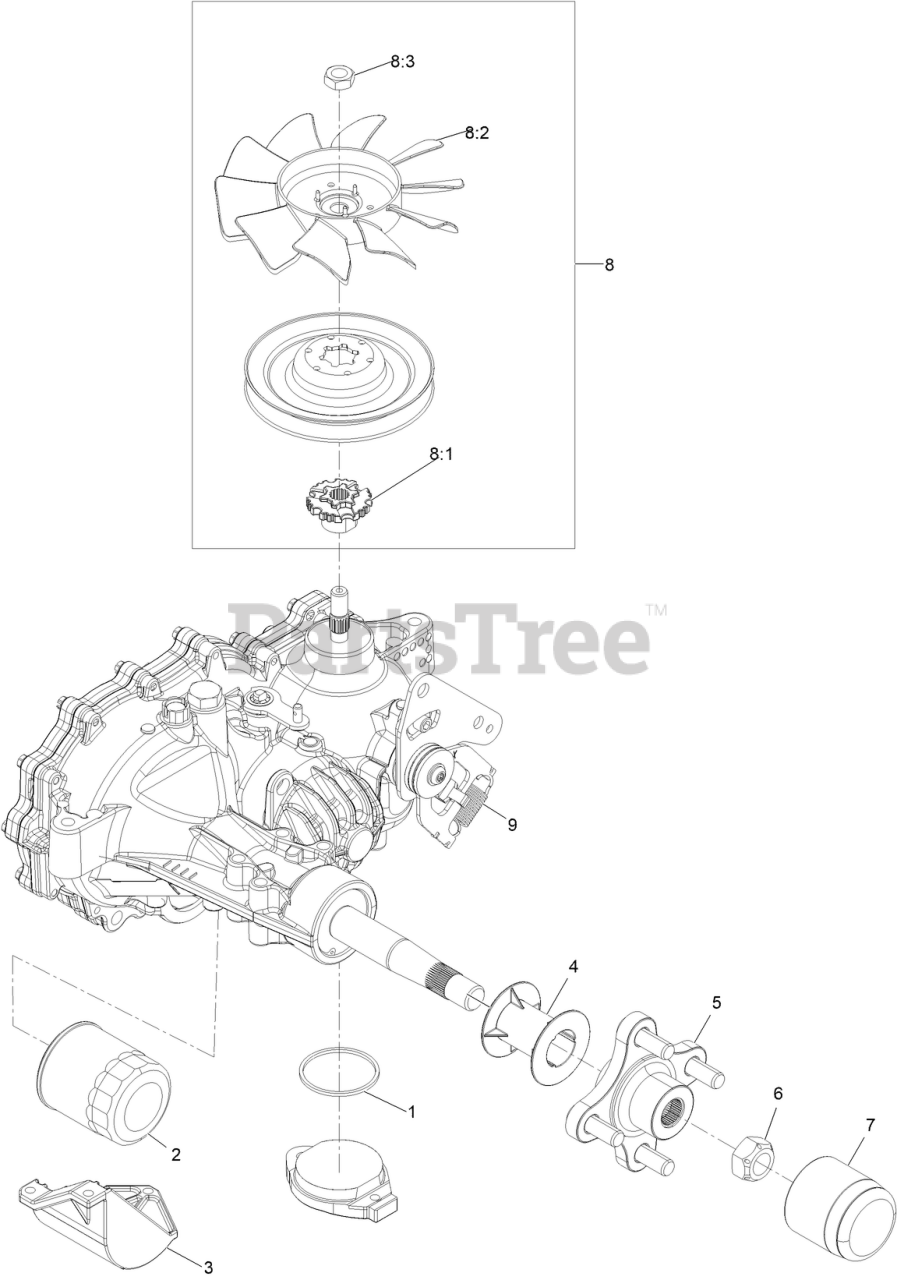

RH Transaxle Assembly Parts Diagram

  • Title

1

Exmark 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

2

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

3

Exmark 120-7981

GUARD-FILTER, RH

$34.99

$

Usually ships in 3-6 days

0

4

Exmark 116-6213

TUBE-AXLE

$12.99

$

In Stock, only 1 left!

0

5

Exmark 116-3872

HUB-OFFSET

$69.99

$

Usually ships in 3-6 days

0

6

Exmark 109-3536

NUT-HUB

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 116-6214

CAP-AXLE, LONG

$17.99

$

In Stock, only 1 left!

0

8

Exmark 126-8904

FAN AND PULLEY KIT

$102.99

$

Usually ships in 3-6 days

0

8:1

Exmark 126-8905

HUB-FAN

$15.99

$

Usually ships in 3-6 days

0

8:2

Exmark 126-0226

FAN

$47.99

$

In Stock, only 3 left!

0

8:3

Exmark 116-9714

NUT-HJ

$5.49

$

In Stock, only 4 left!

0

9

Exmark 109-5592

SPRING-EXTENSION

$17.99

$

In Stock, only 2 left!

0

99

Exmark 135-3604

BRAKE SHAFT SEAL KIT

Note: Not illustrated

$167.99

$

Usually ships in 3-6 days

0

99

Exmark 121-3243

SEAL KIT

Note: Not illustrated

$189.99

$

Usually ships in 3-6 days

0
