RZT-SX 54 KW FAB (17RICBYA010) - Cub Cadet 54" RZT Zero-Turn Mower, Fab Deck, Kawasaki (2019) Transmission (LH) Parts Diagram

54" RZT Zero-Turn Mower, Fab Deck, Kawasaki

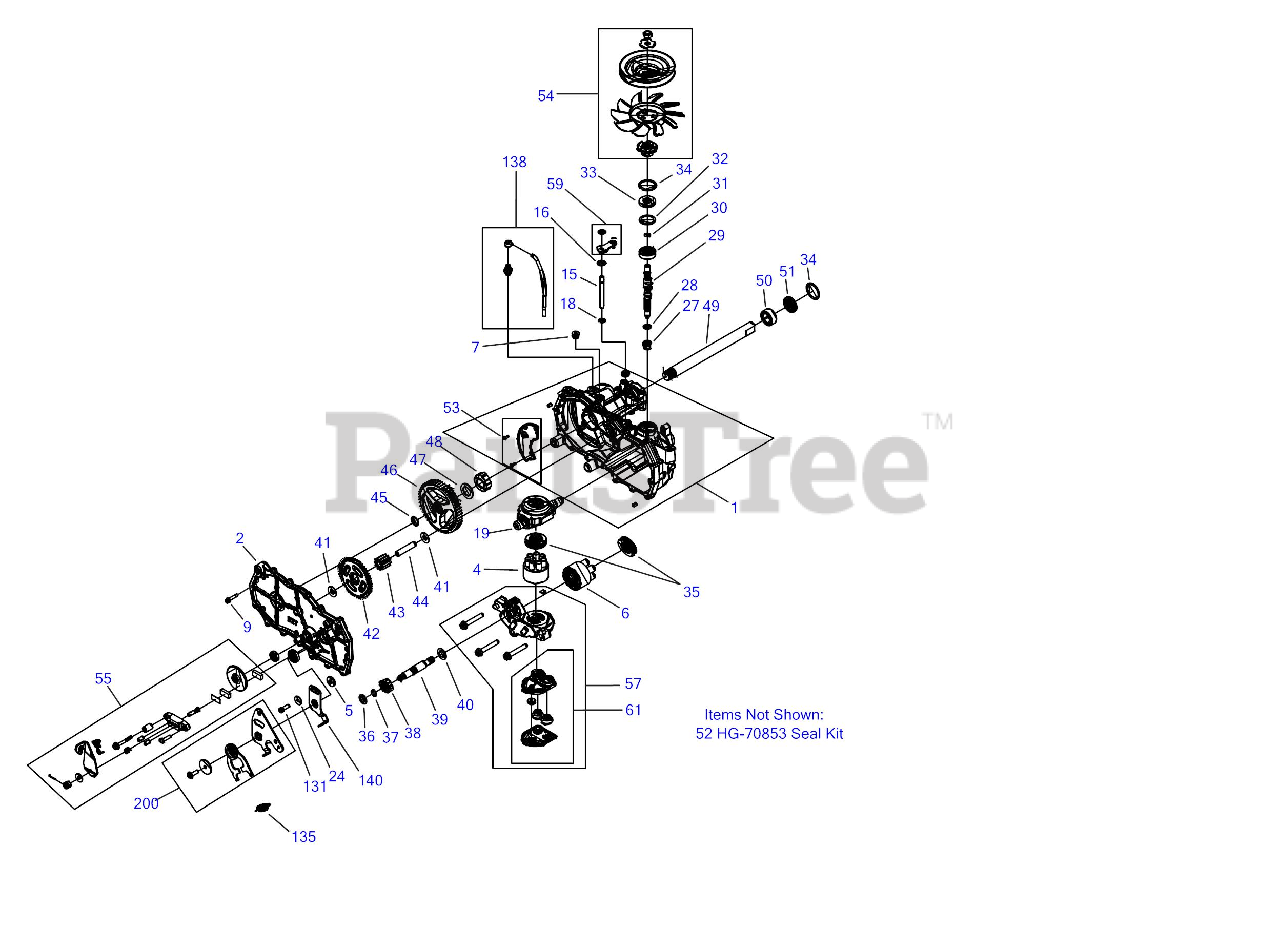

Transmission (LH) Parts Diagram

  • Title

1

Cub Cadet HG-71030L

Kit, Housing, Main, LH

$303.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-71031L

Kit, Housing, Side, LH

$130.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-70723

Kit, Block, 7 Piston

$228.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-52527

Spacer, .320 x 1.005 x .150
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

6

Cub Cadet HG-70331

Kit, Block, 10cc Cylinder

$188.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-9005110-5600

Plug, 9/16-18

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-53246

Screw, Hex Washer

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-51625

Rod, Bypass

$16.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-51627

Ring, Ret .375 External

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-51628

Ring, Retaining .375 External

$4.49

$

In Stock, Qty 14

0

19

Cub Cadet HG-51048

Trunnion, Swashplate

$88.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0371

Washer, .34 x .88 x .06

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet HG-2003014

Spring, Block

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet HG-2003017

Washer, .59 x .79 x .04

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-51062

Shaft, Input
(Superseded to HG-51062P)

$134.99

$

In Stock, only 1 left!

0

30

Cub Cadet HG-50315

Ball Bearing 17 x 40 x 12

$18.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-2000022

Ring, Reatining

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet HG-50951

Washer, 1.23 x 1.57 x .04

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet HG-51161

Seal, Lip 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-50329

Ring Retaining Internal

$11.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-50551P

Thrust Bearing, 30 x 52 x 13

$29.99

$

Usually ships in 3-6 days

0

36

Cub Cadet HG-44371

Washer, .63 x 1.00 x .05

$15.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-44145

Ring, Reatining, Motor Shaft

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet HG-51130

Gear, 13T Pinion

$9.49

$

Usually ships in 3-6 days

0

39

Cub Cadet HG-52579

Shaft, Motor

$60.99

$

Usually ships in 3-6 days

0

40

Cub Cadet HG-51069

Washer, .71 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-50132

Washer

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet HG-51129

Gear, 10T/48T

$53.99

$

Usually ships in 3-6 days

0

43

Cub Cadet HG-51043

Gear, 10T Jackshaft

$28.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

45

Cub Cadet HG-52531

Ring, Spiral Retaining-87

$3.49

$

In Stock, only 1 left!

0

46

Cub Cadet HG-52541

Gear, Bull 52T

$61.99

$

Usually ships in 3-6 days

0

47

Cub Cadet HG-52532

Washer, 1.018 x 1.571 x .105

$2.99

$

Usually ships in 3-6 days

0

48

Cub Cadet HG-52542

Buahing, Sleeve (Inboard)

$6.49

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-52545

Shaft, Axle, 1.00 x 11.70 DD

$91.99

$

Usually ships in 3-6 days

0

50

Cub Cadet HG-51517

Bushing, 1.003 x 1.571 x .625

$11.99

$

Usually ships in 3-6 days

0

51

Cub Cadet HG-51518

Seal, Lip, TC4, 1.00 x 1.577 x .27

$12.99

$

Usually ships in 3-6 days

0

52

Cub Cadet HG-70853

Kit, Seals & Rings

$70.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-70868L

Kit, Expansion Plate LH

$21.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-72135

Kit, Fan & Pulley

$63.99

$

In Stock, only 1 left!

0

54

Cub Cadet HG-53994

FAN-7.0 (10 BLADE)
(Superseded to HG-55217)

$15.99

$

In Stock, only 1 left!

0

54

Cub Cadet HG-53812

HUB-PULLEY

$6.49

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-51523

WASHER-SLOTTED

$3.99

$

In Stock, Qty 8

0

54

Cub Cadet HG-44133

NUT-JAM

$4.99

$

In Stock, only 4 left!

0

55

Cub Cadet HG-71892

Kit, Brake Arm

$77.99

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-71529

Kit, Center Section LH

$232.99

$

In Stock, Qty 5

0

59

Cub Cadet HG-71006

Kit, Bypass Arm

$19.99

$

Usually ships in 3-6 days

0

61

Cub Cadet HG-71497

Kit, Filter

$19.99

$

Usually ships in 3-6 days

0

131

Cub Cadet HG-71341

Socket Cap Screw, 5/16-24 x 7/8

$9.49

$

Usually ships in 3-6 days

0

135

Cub Cadet HG-51605

Spring, Extension

$22.99

$

Usually ships in 3-6 days

0

138

Cub Cadet HG-71510

Kit, Breather

$22.99

$

In Stock, only 2 left!

0

140

Cub Cadet HG-51945

Arm, Left Return

$13.99

$

In Stock, only 1 left!

0

200

Cub Cadet HG-71588

Kit, RTN Bidirectional

$48.99

$

In Stock, only 1 left!

0

Cub Cadet 918-06996

Transmission Assembly (LH)

$1467.99

$

Usually ships in 3-6 days

0
