RZT-S54 KH (17ARCBDA010) - Cub Cadet 54" RZT Zero-Turn Mower, Kohler (2015) Mower Deck 54-Inch Parts Diagram

54" RZT Zero-Turn Mower, Kohler

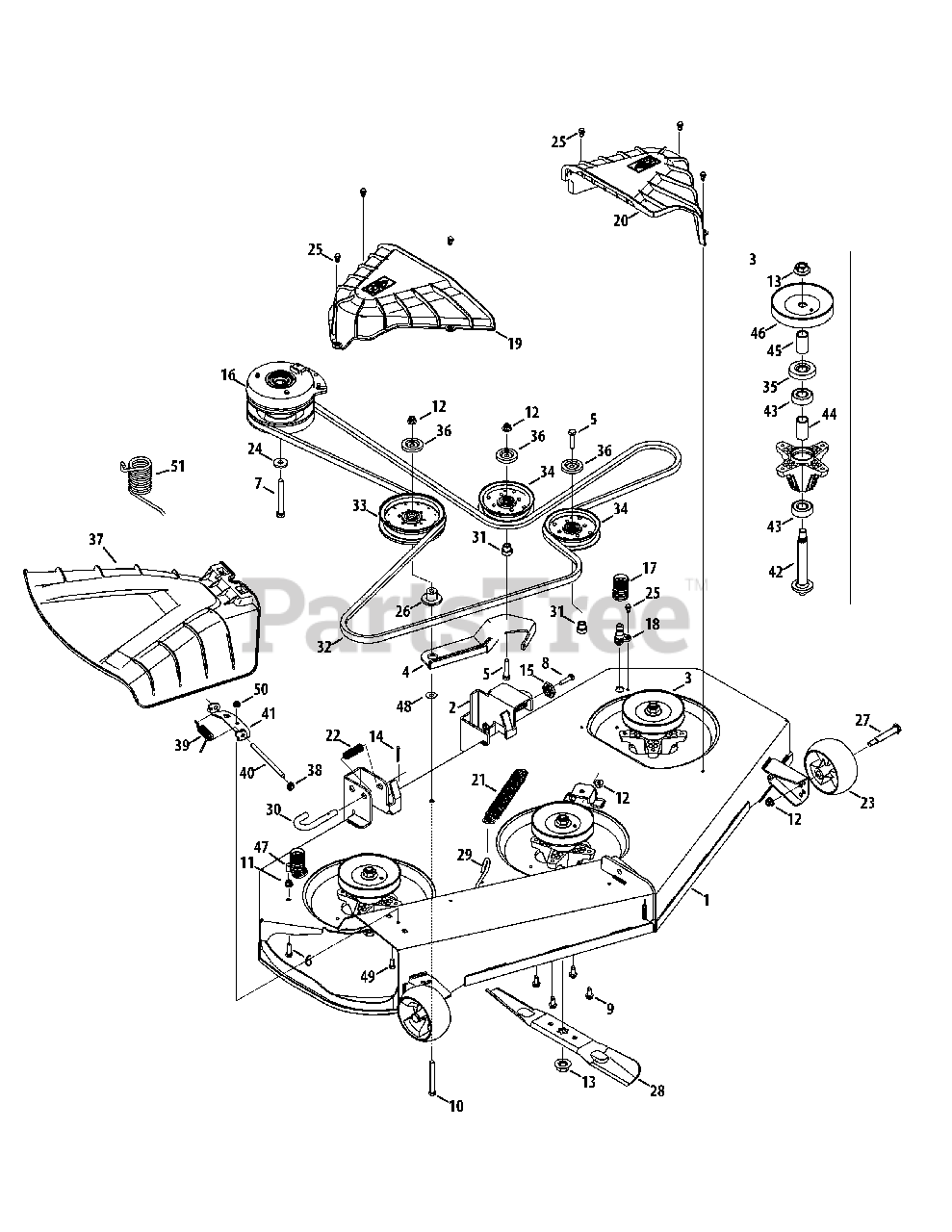

Mower Deck 54-Inch Parts Diagram

  • Title

1

Cub Cadet 903-05205-4021

54" Deck
(Superseded to 903-05205D-4021)

$

$

Not available

2

Cub Cadet 603-05216-0637

Deck Lift Bracket

$70.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-06978

Spindle Assembly

$140.99

$

In Stock, Qty 20+

0

4

Cub Cadet 903-05211

Idler Arm Assembly
(Superseded to 603-05350B-0637)

$69.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

7

Cub Cadet 710-04379A

Hex Cap Screw, 7/16-20 x 3.50

$6.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3120

Hex Cap Screw, 3/8-16 x 1.50

$3.99

$

In Stock, Qty 19

0

9

Cub Cadet 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3130

Hex Cap Screw, 3/8-16 x 3.25

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0417A

Hex Flange Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0162

Cotter Pin, 5.32 x 1.25

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 917-05298

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

16

Cub Cadet 917-05209

Electric PTO Clutch

$545.99

$

In Stock, only 1 left!

0

17

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

18

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 731-09968

Belt Cover, RH
(Superseded to 731-09968B)

$28.99

$

In Stock, Qty 20+

0

20

Cub Cadet 731-09969A

Belt Cover, LH
(Superseded to 731-09969C)

$28.99

$

In Stock, Qty 20+

0

21

Cub Cadet 732-04927

Extension Spring, 1.25 OD x 1.751

$22.99

$

In Stock, Qty 20+

0

22

Cub Cadet 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

25

Cub Cadet 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 11

0

26

Cub Cadet 738-05081

Shoulder Spacer

$7.49

$

In Stock, Qty 5

0

27

Cub Cadet 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

28

Cub Cadet 942-05056A

Blade, 18.67

$30.99

$

In Stock, Qty 20+

0

29

Cub Cadet 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

30

Cub Cadet 747-06292

Deck Hanger Rod

$11.99

$

In Stock, only 2 left!

0

31

Cub Cadet 748-05029A

Shoulder Spacer

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 954-04329A

V-Belt

$100.99

$

In Stock, only 4 left!

0

33

Cub Cadet 756-04511B

Idler Pulley, 5.00 Dia.

$53.99

$

In Stock, Qty 20+

0

34

Cub Cadet 756-05034

Idler Pulley, 4.25 Dia
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

35

Cub Cadet 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

37

Cub Cadet 631-05168C

Chute Assembly

$52.99

$

In Stock, only 1 left!

0

38

Cub Cadet 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

39

Cub Cadet 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, only 3 left!

0

40

Cub Cadet 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 783-08504A

Chute Bracket
(Superseded to 783-08504B)

Variations

Cub Cadet 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0

42

Cub Cadet 738-1186A

Spindle Shaft, 6.11 Long

$49.99

$

In Stock, Qty 14

0

43

Cub Cadet 941-0919B

Ball Bearing

$21.99

$

In Stock, Qty 20+

0

44

Cub Cadet 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

45

Cub Cadet 750-06152

Spacer, .792 x 1.060 x 1.782

$6.49

$

In Stock, Qty 8

0

46

Cub Cadet 756-05038

Deck Pulley

$25.99

$

In Stock, only 1 left!

0

47

Cub Cadet 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

48

Cub Cadet 936-0344

Flat Washer, .385 x 1.00 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 732-04947A

Torsion Spring, 1.323 ID x 2.83 LG

$18.99

$

Usually ships in 3-6 days

0
