RZT-S54 (17ARCBDA210) - Cub Cadet 54" RZT Zero-Turn Mower, CARB (2015) Kohler KT740-3011 Engine Controls Parts Diagram

54" RZT Zero-Turn Mower, CARB

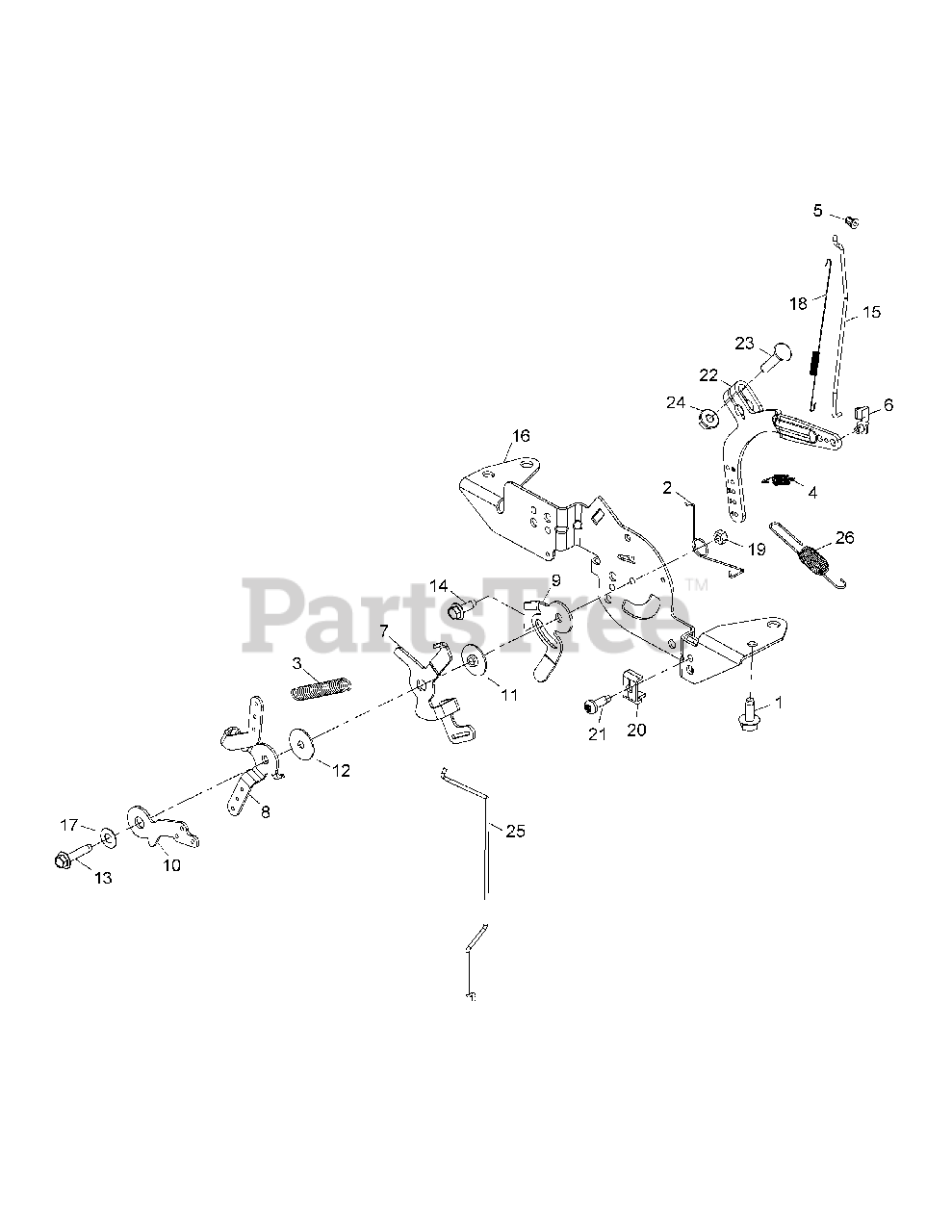

Kohler KT740-3011 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-25-086-397-S

Thread Forming Screw

$3.99

$

In Stock, Qty 15

0

2

Cub Cadet KH-24-089-03

Choke Return Spring

$

$

Not available

3

Cub Cadet KH-32-089-03-S

Speed Control Spring

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-089-55-S

Governor Spring

$2.49

$

In Stock, Qty 7

0

5

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

7

Cub Cadet KH-32-090-07-S

Governor Spring Lever

$3.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-32-090-08-S

Speed Control Lever
(Superseded to KH-32-090-26-S)

$2.49

$

Usually ships in 3-6 days

0

9

Cub Cadet KH-32-090-09-S

Speed Setting Lever

$2.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-32-090-12-S

Choke Lever
(Superseded to KH-32-536-12-S)

$39.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-112-27-S

Control Assembly Spacer

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-24-468-01

Flat Washer, 5.5mm

$

$

Not available

13

Cub Cadet KH-25-086-429-S

Thread Forming Screw
(Superseded to KH-25-086-472-S)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-086-398-S

Thread Forming Screw

$3.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-32-079-01-S

Throttle Linkage
(Superseded to KH-24-079-04-S)

$3.49

$

In Stock, Qty 7

0

16

Cub Cadet KH-32-126-04-S

Control Bracket
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-41-468-03

Spring Washer, 1/4

$

$

Not available

18

Cub Cadet KH-32-089-07-S

Linkage Spring
(Superseded to KH-32-089-11-S)

$2.49

$

In Stock, Qty 19

0

19

Cub Cadet KH-M-547050-S

Lock Nut, M5 x .8

$2.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet KH-25-086-405-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-090-69-S

Governor Lever

$8.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-24-211-03-S

Bolt, M6 x 1.0 x 25

$2.49

$

In Stock, Qty 15

0

24

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 11

0

25

Cub Cadet KH-24-079-22-S

Choke Linkage

$6.99

$

In Stock, Qty 7

0

26

Cub Cadet KH-24-089-18

Governor Spring

$

$

Not available
