RZT-S50 KW (17AICBDP010) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2014) Mower Deck 50-Inch Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

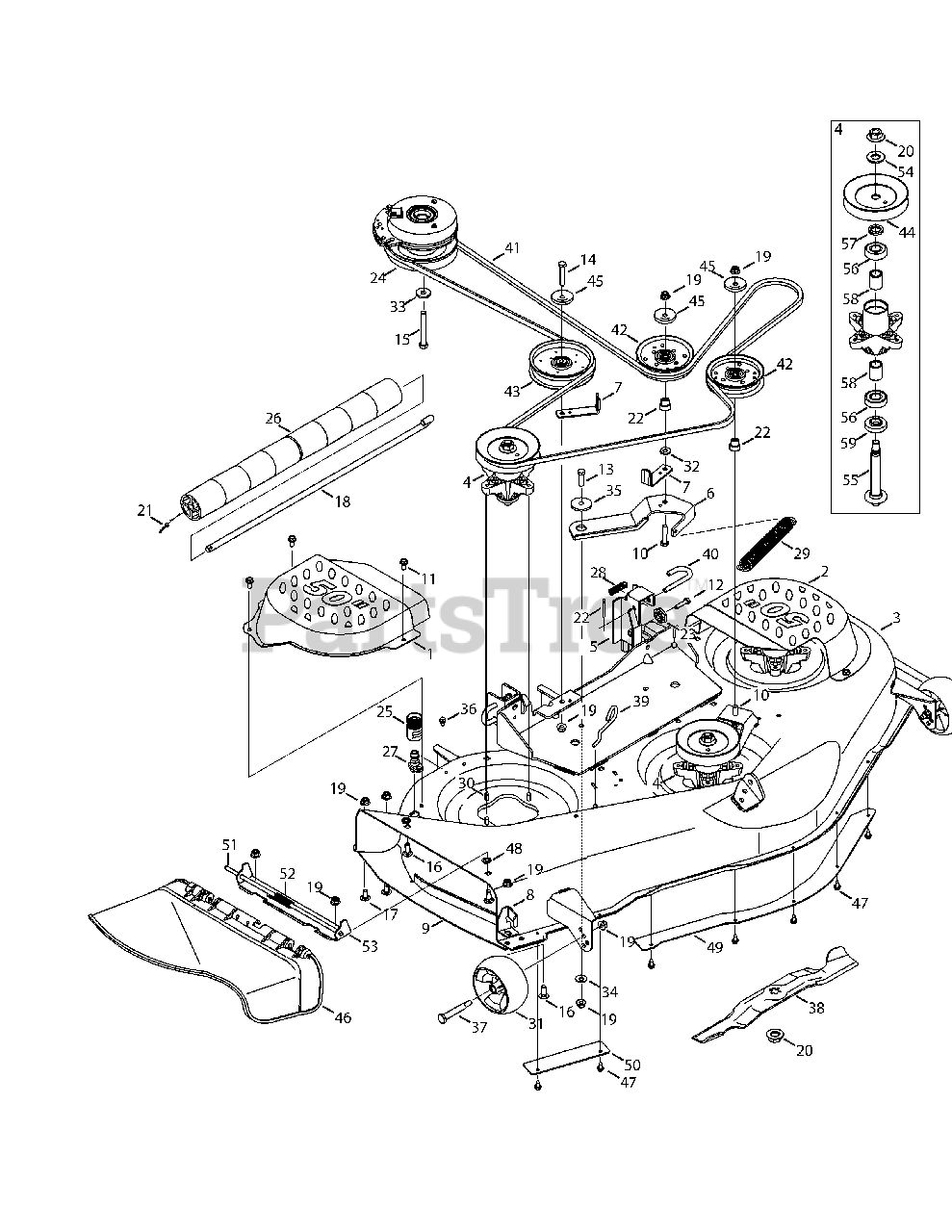

Mower Deck 50-Inch Parts Diagram

  • Title

1

Cub Cadet 603-04947-4021

Belt Cover, RH

$106.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04948-4021

Belt Cover, LH

$

$

Not available

3

Cub Cadet 903-05121-4021

50" Deck

$933.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04125B

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

5

Cub Cadet 683-05124-4021

Deck Lift Bracket
(Superseded to 683-05124-0637)

$44.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-05825C-4021

Idler Arm
(Superseded to 703-05825C-0637)

$54.99

$

In Stock, only 3 left!

0

7

Cub Cadet 703-09583-0637

Bracket Belt Guard

$13.99

$

In Stock, only 3 left!

0

8

Cub Cadet 703-3279

Stop Bracket

Variations

Cub Cadet 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0716

Chute Deflector Stop - CUB YELLOW-99 (0716)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3511B-0637

Finger Guard

$69.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 12

0

13

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

14

Cub Cadet 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 9

0

15

Cub Cadet 710-3157A

Screw, 7/16-20 x 3.25

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3168

Carriage Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 711-06092

J-Hook

$29.99

$

In Stock, only 3 left!

0

19

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0417A

Hex Flange Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 714-0162

Cotter Pin, 5.32 x 1.25

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 748-05029

Shoulder Spacer
(Superseded to 748-05029A)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 19

0

24

Cub Cadet 917-05122A

Electric PTO Clutch

$515.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

26

Cub Cadet 731-05679A

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

27

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 4 left!

0

28

Cub Cadet 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 6

0

29

Cub Cadet 732-04927

Extension Spring, 1.25 OD x 1.751

$22.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

34

Cub Cadet 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, only 2 left!

0

35

Cub Cadet 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

36

Cub Cadet 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 7

0

37

Cub Cadet 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

38

Cub Cadet 942-04053C

Blade, 2 in 1, 17.9

$28.99

$

In Stock, Qty 20+

0

39

Cub Cadet 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

40

Cub Cadet 747-06292

Deck Hanger Rod

$11.99

$

In Stock, only 2 left!

0

41

Cub Cadet 954-05008

V-Belt

$76.99

$

In Stock, only 1 left!

0

42

Cub Cadet 756-05042

Idler Pulley, 4.25 Dia

$31.99

$

In Stock, Qty 20+

0

43

Cub Cadet 756-04511B

Idler Pulley, 5.00 Dia.

$53.99

$

In Stock, Qty 20+

0

44

Cub Cadet 756-04216

V-Type Pulley, 5.39

$33.99

$

In Stock, only 1 left!

0

45

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

46

Cub Cadet 631-05162

Discharge Chute Assembly
(Superseded to 631-05058)

$63.99

$

In Stock, only 2 left!

0

47

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 783-04414A-4021

Center Skirt

$35.99

$

In Stock, only 2 left!

0

50

Cub Cadet 783-04415-4021

RH Skirt

$30.99

$

In Stock, only 1 left!

0

51

Cub Cadet 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

52

Cub Cadet 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 9

0

53

Cub Cadet 703-09623

Chute Bracket

$27.99

$

In Stock, only 4 left!

0

54

Cub Cadet 736-0315

Flat Washer, .76 x 1.50 x .12

$6.99

$

In Stock, Qty 6

0

55

Cub Cadet 738-1010A

Spindle Shaft, 5.75

$46.99

$

In Stock, only 2 left!

0

56

Cub Cadet 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

57

Cub Cadet 748-0160A

Spacer, .79 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

58

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.32

$4.49

$

In Stock, Qty 7

0

59

Cub Cadet 750-1349A

Spacer, .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0
